Electrical Copper Pin Hollow Socket PCB Rivets
Product Overview:
Solid rivet is one of the most popular rivet-type contacts used in low-voltage appliances which has better electrical and thermal conductivity, low resistivity and easy to process.

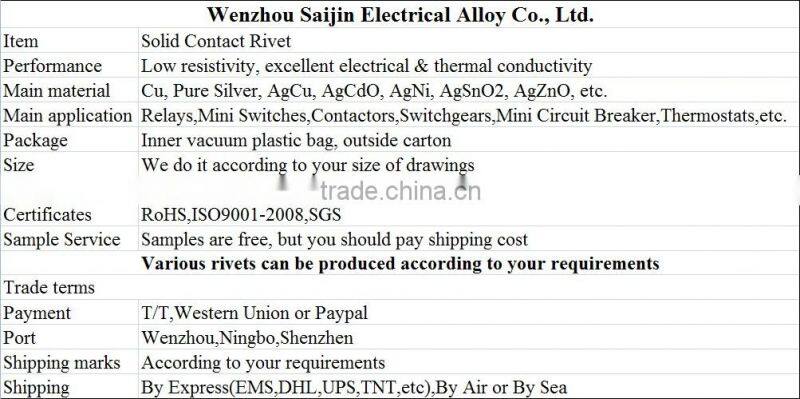

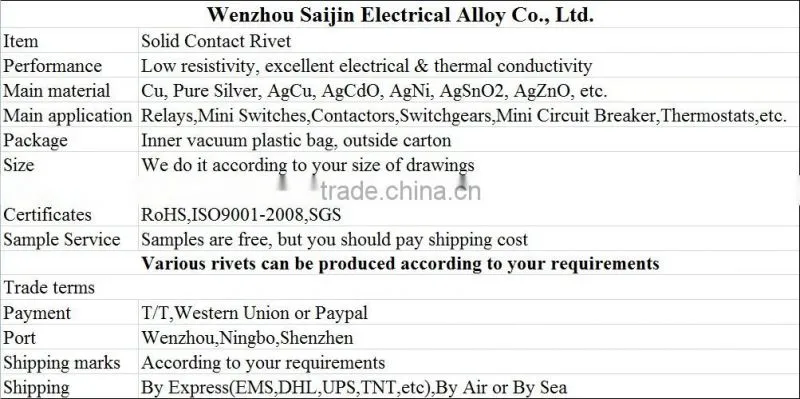

Specifications of Solid Rivets:
AgNi Contact:
Features:
(1) AgNi contact material contains 10% to 40% Ni
(2) Produced by powder metallurgical production, with low and stable contact resistance, high hardness and mechanical strength
(3) Material transfer in case of DC is very low
(4) High electrical and thermal conductivity
(5) With very low arc erosion. On making higher current, normally asymmetric pairs with Ag contact materials are applied
(6) Wire of solid and composite rivets produced by powder sintering-extruding methods
AgNi physical property:
Material |
Composition |
Density g/cm3 |
Resistivity μΩ.cm |
Hardness HV(MPa) |
|
Ag |
Ni |
||||
AgNi10 |
90 |
10 |
>10.25 |
<2.10 |
>800 |
Ag Ni20 |
80 |
20 |
>10.25 |
<2.30 |
>850 |
Ag Ni30 |
70 |
30 |
>9.7 |
<2.70 |
>850 |
Ag Ni40 |
60 |
40 |
>9.5 |
<3.40 |
>850 |

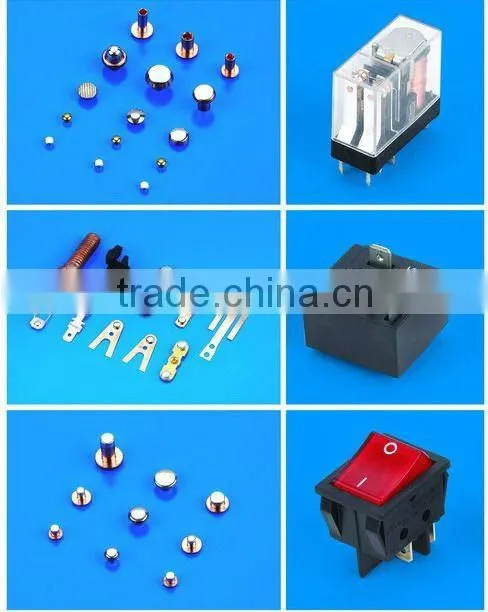

Application of Rivet:

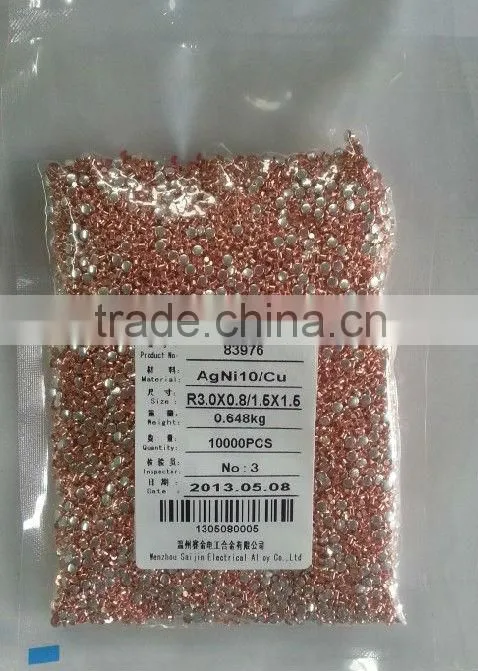

Packing Of RIVETS:
Samples: Our sample is free, but the customer has to pay the tooling charge if the quantity is too large. Meanwhile the express fee should be paid by the buyers. (But we may negotiate that later)
Production Workshop
Certificate of PCB brass hollow rivet:
Our Location:
VARIOUS HOLLOW RIVETS CAN BE PRODUCED ACCORDING TO CUSTOMER'S REQUIREMENT
We look forward to build a long term relationships with you. If you have any questions, Please feel free to contact us! Also FREE SAMPLE can be sent for your evaluation!
