Silver Alloy Bimetal Electric Contact Tips

10 Years Experience Electric Contact Tips Producer

ROHS Silver Alloy Bimetal Electric Contact Tips

Product Overview

Silver-based contact tips are available in many different versions, with different designs and material contents, using the method of welding and brazing at the bottom side. They are widely used in various kinds of contactors, relays, circuit breakers and switches, etc.

Main Material

AgCdO, AgNi, AgSnO2, AgCu, AgZnO, etc.  Electric Contact Tips Electric Contact Tips

Pure silver tips

(1) Pure silver has extremely high electrical conductivity

(2) Very low contact resistance rate

(3) Easy to solder

(4) It is easy to produce, so silver is an ideal contact material

(5) It is one of the most widely used materials in small capacity and voltage appliances

AgNi tips

(1) AgNi contact material contains 10% to 40% Ni

(2) Produced by powder metallurgical production, with low and stable contact resistance,
high hardness and mechanical strength
(3) Material transfer in case of DC is very low

(4) High electrical and thermal conductivity

(5) With very low arc erosion

6) Wire of solid and composite rivets produced by powder sintering-extruding methods

AgSnO2 tips

(1) AgSnO2 is the ideal material of AgCdO and has excellent properties of contacts
(2) AgSnO2 has higher thermal stability

(3) AgSnO2 has higher resistance against welding and erosion than AgCdO material
(4) Non-poisonous. So it is a new material which is empoldered and developed actively over the world

(5) For AgSnO2 contact material, the contact resistance can be controlled within
thelimited range by putting in a small amount of additive of special metal-oxide
(6) In this aspect, contact materials produced by powder metallurgy processing method have higher resistance against arc erosion and less arc bumming than those produced by oxidation processing method

AgCdO tips

(1) AgCdO is a kind of most important contact material among silver metal-oxide materials, and it is widely used for low-voltage devices

(2) When the temperature is higher than 900centigrade, CdO is sublimated and the contact surface is cooled down in order to reduce and even extinguish
the arc energy. This method can increase the resistance against welding

(3) Contact materials produced by powder sintering-extruding methods have higher
density and low resistance rate

(4) It also has higher welding resistance and uniform arc erosionInner

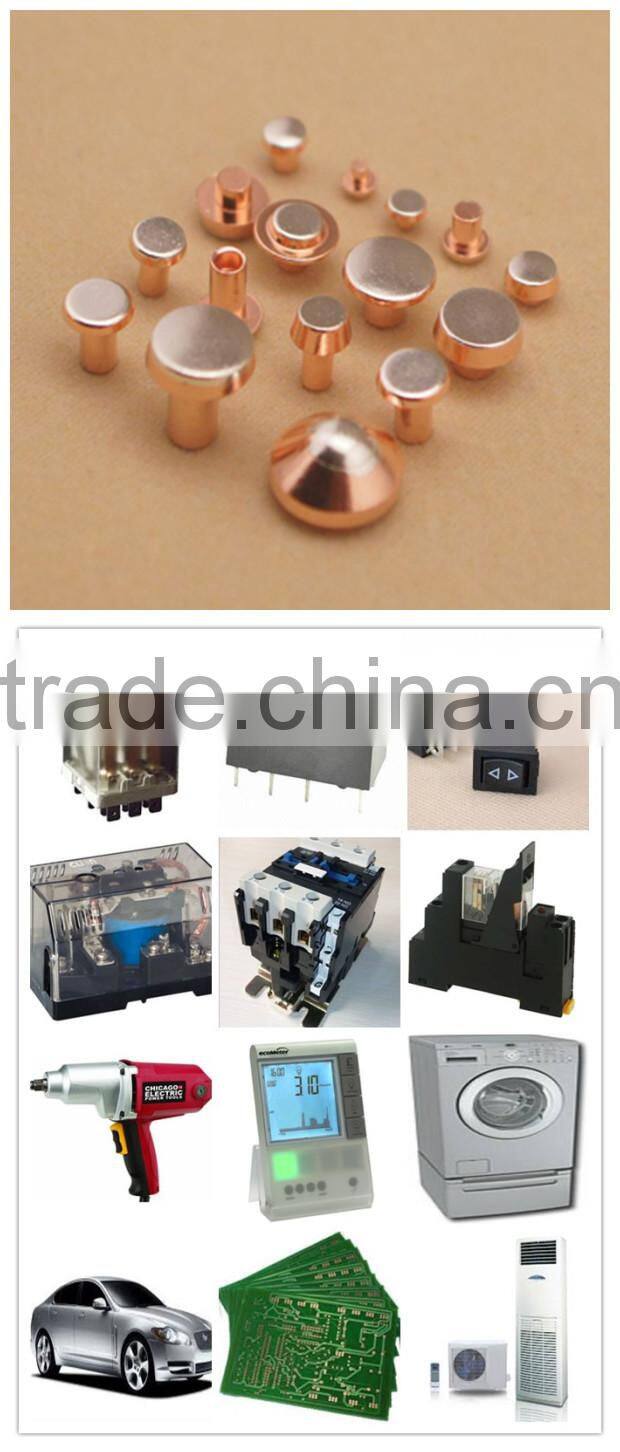

Electric Contact Tips Application

Certificate

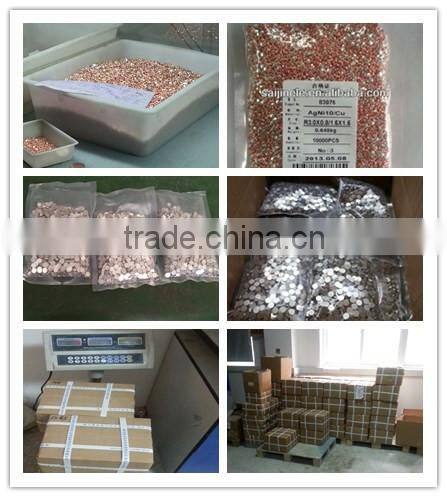

Packing Information

Inner package: vaccum plastic bag Outside package: carton 28cmx14cmx22cm or according to customers' requirements

Shipping and Payment Terms Information

Samples Service

Samples are free for your evaluation

Our company mainly produces electrical alloy materials, such as silver contacts, rivets, socket shank rivets, and silver copper compound products,etc. All of our products exported have been upon strict test and inspection by a group of trained and experienced staff.
Our Strengths:
1Reasonable price.
2High quality.
3Prompt delivery.
4Best service.
We have already formed good cooperation relationships with dozens of customers around the world in the fields of low-voltage electric apparatuses, household appliances, electric apparatuses for cars and electric switches and other fields.We have good reputation both in home and abroad

Our Company

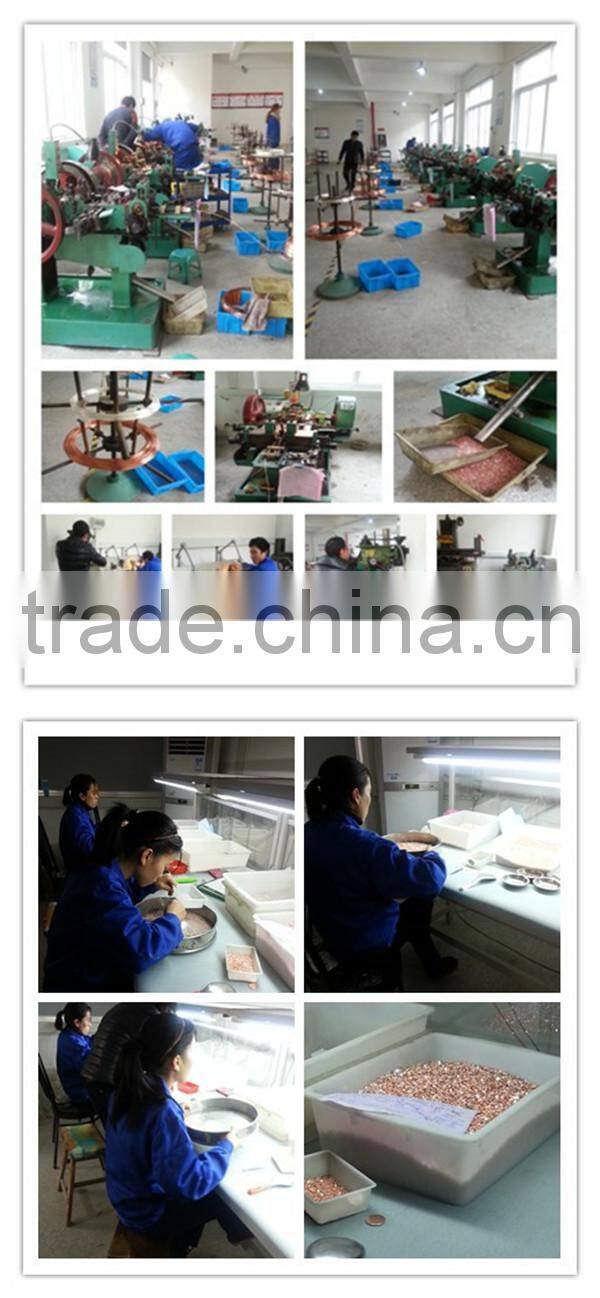

Production Workshop

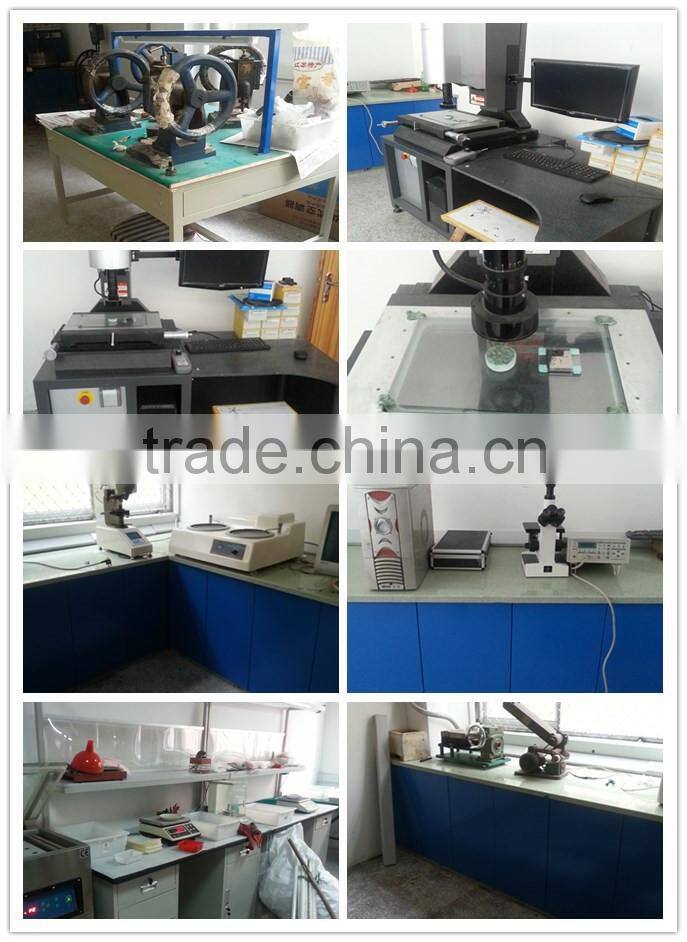

Quality Check Department

Sample Room

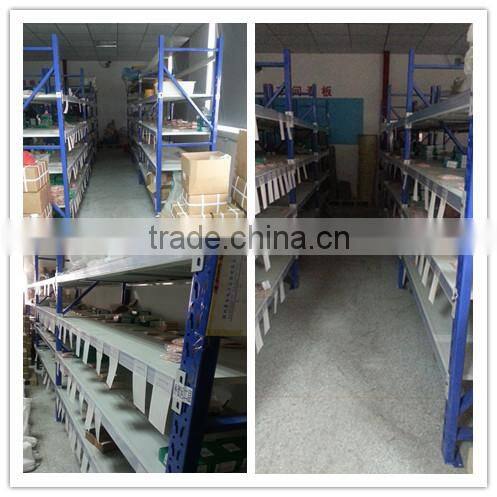

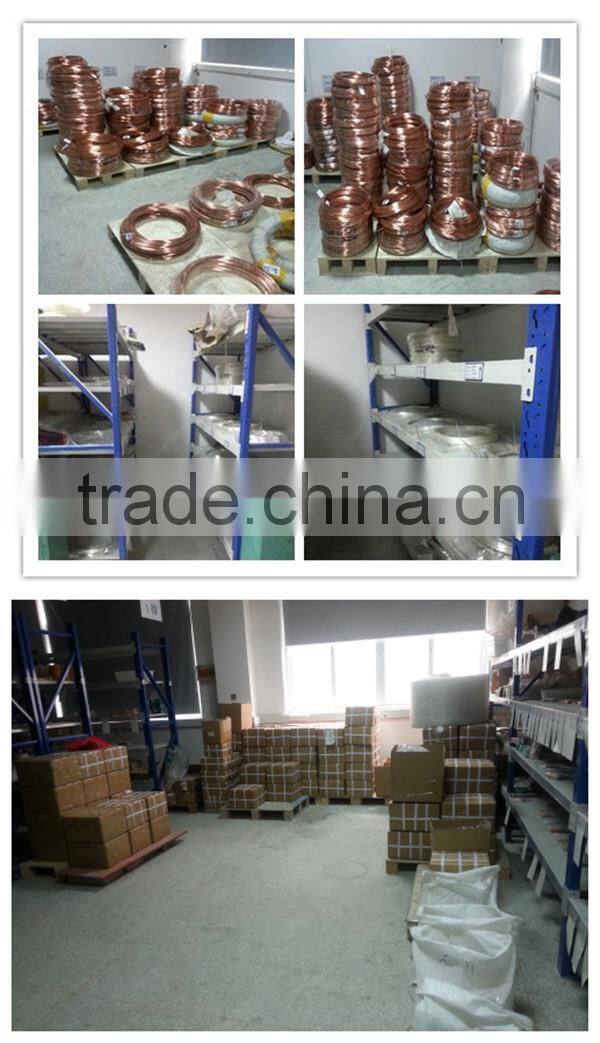

Warehouse

Various Electric Contact Tips Can Be Produced In Your Requirement

Any Material,Any Size Acceptable,Free Sample Service,Leave An Inquiry To Know More About Price,Packing,Shipping And Discount !
