Specifications
Push Button Switches Relay Electrical Bimetal Contact Rivets1.10-15 days delivery after received money
2.5000MOQ
3.SGS,ROHS
10 Years Experience Button Electrical Contact producer

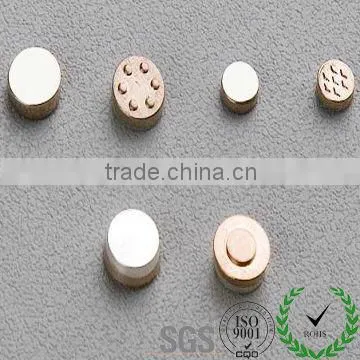

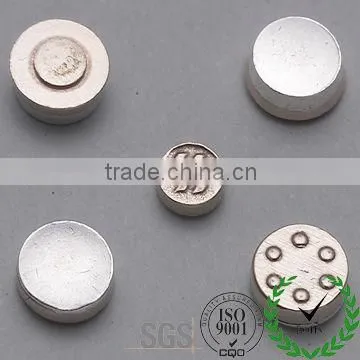

Push Button Switches Relay Electrical Bimetal Contact Rivets ISO9001 Approved
Product overview:
The material of composite rivet's working layer is more flexible to choose than the solid precious metal rivet's,even though the precious alloy material has excellent electrical contact property. Rivet contact is suitable forthe continuous automatic production of riveting and processing. It doesn't other processing technique(such as electroplating, welding, etc). So, it not only simplified the manufacturing process of contact component, improve the productivity and lower the cost, but also increase the assembling precision and reliability of the component. Button Electrical Contact
Main material:
Ag/Cu, AgCdO/Cu, FAg/Cu, AgSnO2 , AgSnO2InO3/Cu, etc Button Electrical Contact
1.Silver rivet and Ag/Cu Contact bi-metal rivet: Pure silver has a high level of electrical and thermal conductivity, good plasticity and arc corrosion resistance, as well as a very low contact resistance.
2. AgCu electrical rivet: This contact has good electrical conductivity and its surface is not liable to oxidization.
3. Fk Ag bi-metal electrical contact rivet: This fine crystal silver contains a 0.12% nickel additive and has a low contact resistance, which is similar to that of pure silver, without the variable switching times.
4. AgNi /Cu electrical bi-metal contact rivet: In low voltage engineering, this contact is widely used in AC switches as an electrical contact.
5. AgCdO/Cu electrical bi-metal contact rivet: This contact includes AgCdO10, AgCdO12, AgCdO15, and this kind of electrical contact has one of the most important materials in silver - metal oxide contact material.
6. AgZnO rivet and AgZnO/Cu electrical bi-metal contact rivet: The oxide of this contactor is more thermally stable than CdO.
7. AgSnO2 and AgSnO2 In2O3 and electrical bi-metal contact rivet: AgSnO2 and AgSnO2In2O3 are the ideal environment-protecting materials for substituting AgCdO.

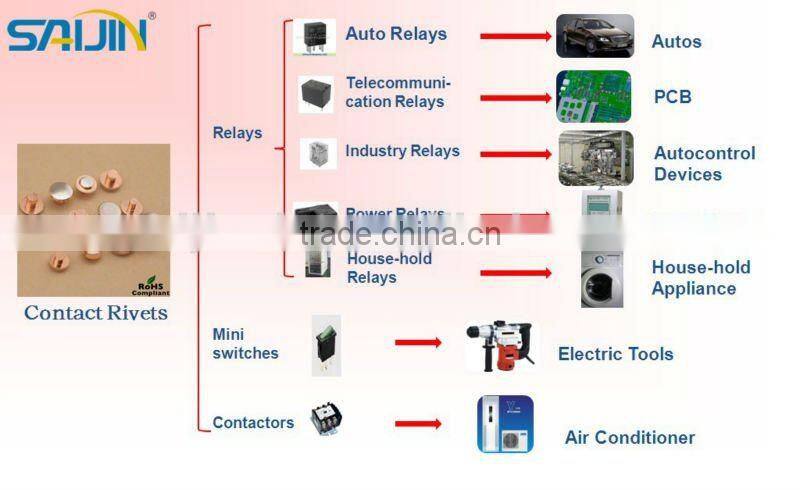

Main application:
Automobile electrical equipments, Household appliances, Relays, Contactors,Temperature controllers,Timers and other electrical appliances.
Specifications of Bi-metal Rivets:
Production workshop
Button Electrical Contact
VARIOUS Button Electrical Contact CAN BE PRODUCED ACCORDING TO CUSTOMER'S REQUIREMENT
We look forward to build a long term relationships with you. If you have any questions, Please feel free to contact us! Also FREE SAMPLE can be sent for your evaluation!
