Home > Electrical & Electronics > Connector & Terminals > Terminals > Electrical Silver Contacts Silver Alloy Contacts

Electrical Silver Contacts Silver Alloy Contacts

Name: Electrical Silver Contacts Silver Alloy Contacts
Brand: SAIJIN
SKU: 109489407
Availability: InStock

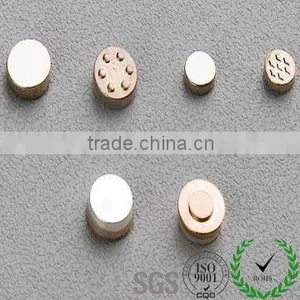

Electrical Silver Contacts Silver Alloy Contacts thumbnail-1

Electrical Silver Contacts Silver Alloy Contacts photo-1

US$ 0.005 - 0.25 MOQ: 20000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

SAIJIN

Model Number:

SJ-B11

Contact Supplier Request Quote Chat Now

Wenzhou Saijin Electrical Alloy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name SAIJIN

Model Number SJ-B11

Electrical Silver Alloy Button Contact Rivets

Product overview:

The material of composite rivet's working layer is more flexible to choose than the solid precious metal rivet's,even though the precious alloy material has excellent electrical contact property. Rivet contact is suitable forthe continuous automatic production of riveting and processing. It doesn't other processing technique(such as electroplating, welding, etc). So, it not only simplified the manufacturing process of contact component, improve the productivity and lower the cost, but also increase the assembling precision and reliability of the component. gNi Silver Conta

Main material:

Ag/Cu, AgCdO/Cu, FAg/Cu, AgSnO2 , AgSnO2InO3/Cu, etc

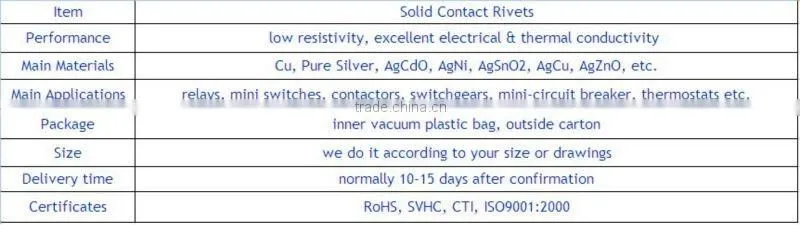

Specifications of Solid Rivets:

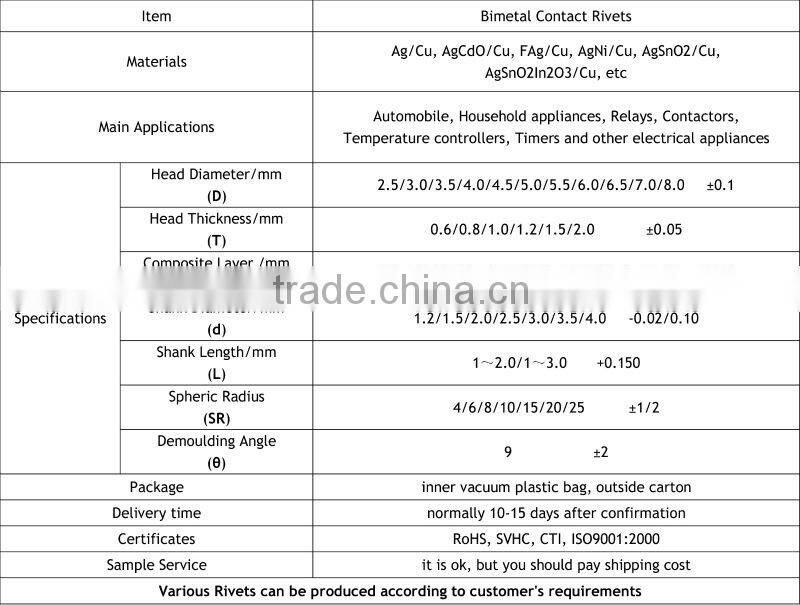

Specifications of Bi-metal Rivets:

Specifications of Tri-metal Rivets:

items	Basic Diameter/mm			Limit Deviation/mm
Head Diameter/mm	2.0-3.5	3.5-4.0	4.0-5.0	5.0-6.0	6.0-9.0	±0.10
Head Thickness/mm	0.4-1.0	0.9-1.2	0.9-1.2	1.0-1.5	1.5-2.0	±0.05
Head Layer/mm	0.15-0.4	0.3-0.5	0.35-0.70	0.35-0.70	0.40-0.80	±0.05
Shank Diameter/mm	1.5-2.0	2.0-2.5	2.5-3.0	3.0-4.0	4.0-7.0	0/-0.10
Shank Length/mm	1.0-2.0	1.2-2.0	1.5-3.0	2.0-5.0	2.0-4.0	+0.10/0
Shank Layer/mm	0.3-0.5	0.4-0.6	0.5-1.0	0.8-2.0	1.0-2.0	±0.05
Spheric Radius/mm	4-10	6-12	8-15	10-20	10-20	±2.0
Demoulding Angle	9	9	11	11	11	±2.0

AgNi Contact:

Features:

(1) AgNi contact material contains 10% to 40% Ni

(2) Produced by powder metallurgical production, with low and stable contact resistance, high hardness and mechanical strength

(3) Material transfer in case of DC is very low

(4) High electrical and thermal conductivity

(5) With very low arc erosion. On making higher current, normally asymmetric pairs with Ag contact materials are applied

(6) Wire of solid and composite rivets produced by powder sintering-extruding methods

AgNi physical property:

Material	Composition		Density g/cm³	Resistivity μΩ.cm	Hardness HV(MPa)
Material	Ag	Ni	Density g/cm³	Resistivity μΩ.cm	Hardness HV(MPa)
AgNi₁₀	90	10	>10.25	<2.10	>800
Ag Ni₂₀	80	20	>10.25	<2.30	>850
Ag Ni₃₀	70	30	>9.7	<2.70	>850
Ag Ni₄₀	60	40	>9.5	<3.40	>850

Electrical Silver rivet and Ag/Cu bimetal rivet contact:Pure silver has a high level of electrical and thermal conductivity, good plasticity and arc corrosion resistance, as well as a very low contact resistance.

AgCu Electrical rivet contact:This contact has good electrical conductivity and its surface is not liable to oxidization.

Fk Ag Electrical contact rivet:This fine crystal silver contains a 0.12% nickel additive and has a low contact resistance, which is similar to that of pure silver, without the variable switching times.

AgNi /Cu Electrical bimetal rivet contact:In low voltage engineering, this contact is widely used in AC switches as an electrical contact.

AgCdO/Cu Electrical bimetal rivet contact:This contact includes AgCdO10, AgCdO12, AgCdO15, and this kind of electrical contact has one of the most important materials in silver - metal oxide contact material.

AgZnO rivet and AgZnO/Cu Electric bimetal rivet contact:The oxide of this contactor is more thermally stable than CdO.

AgSnO2 and AgSnO2 In2O3 and Electrical bimetal rivet contact:AgSnO2 and AgSnO2In2O3 are the ideal environment-protecting materials for substituting AgCdO.

Samples: Our sample is free, but the customer has to pay the tooling charge if the quantity is too large. Meanwhile the express fee should be paid by the buyers. (But we may negotiate that later)

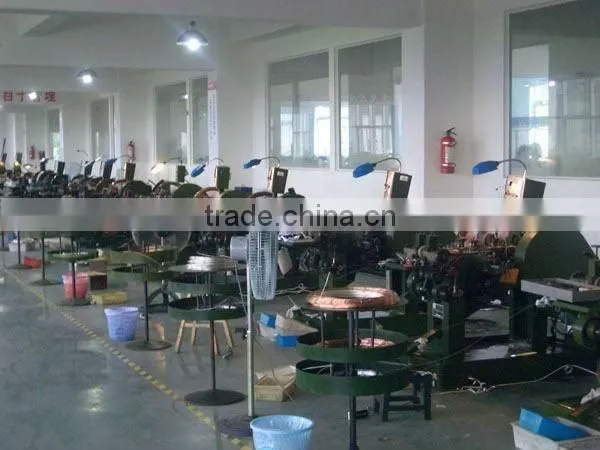

Production Workshop

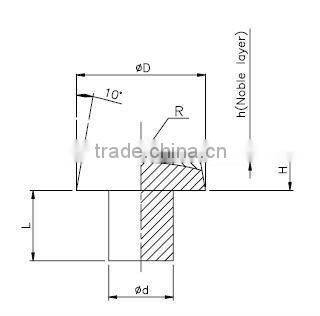

Standard shape:

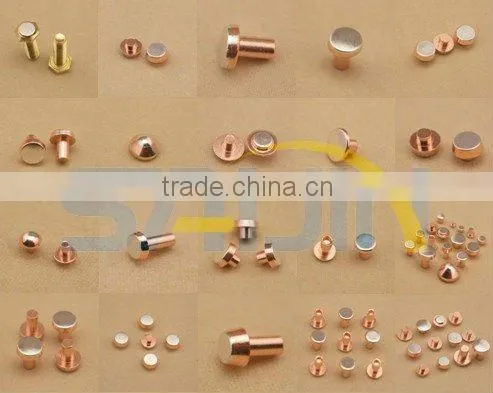

Photos:

VARIOUS RIVETS CAN BE PRODUCED ACCORDING TO CUSTOMER'S REQUIREMENT

We look forward to build a long term relationships with you. If you have any questions, Please feel free to contact us! Also FREE SAMPLE can be sent for your evaluation!
