Bimetal Contact Rivets For Relay
Product overview:
The material of composite rivet's working layer is more flexible to choose than the solid precious metal rivet's,
even though the precious alloy material has excellent electrical contact property. Rivet contact is suitable for
the continuous automatic production of riveting and processing. It doesn't other processing technique(such as electroplating, welding, etc). So, it not only simplified the manufacturing process of contact component,
improve the productivity and lower the cost, but also increase the assembling precision and reliability of the component.
Main material:
Ag/Cu, AgCdO/Cu, FAg/Cu, AgSnO2 , AgSnO2InO3/Cu, etc
Main application:
Automobile electrical equipments, Household appliances, Relays, Contactors,Temperature controllers,
Timers and other electrical appliances.
Specifications of Bi-metal Rivets:
Items |
Limit Deviation |
Basic Dimension |
||||||||||
Head Diameter/mm |
±0.1 |
2.5 |
3 |
3.5 |
4 |
4.5 |
5 |
5.5 |
6 |
6.5 |
7 |
8 |
|
Head Thickness/mm |
±0.05 |
0.6 0.8 1.0 |
0.8 1.0 1.2 |
1.0 1.2 1.5 |
1.0, 1.2 1.5, 2.0 |
1.2, 1.5, 2.0 |
||||||
|
Head Layer/mm |
S<0.4±0.060 S>0.4±0.060 |
0.3-0.4 |
0.35-0.50 |
0.40-0.60 |
0.50-0.70 |
|||||||
|
Shank Diameter/mm |
-0.02 -0.10 |
1.2
1.5 |
1.5 |
1.5
2.0 |
2.0 |
2.0
2.5 |
2.5 |
2.5
3.0 |
3.0 |
3.0
3.5 |
3.5 |
4.0 |
Shank Length/mm |
+0.150 |
1-2.0 |
1-3.0 |
|||||||||
|
Spheric Radius/mm |
R<6±1 R>6±2 |
4 6 |
6 8 |
8 10 |
10 15 |
15 20 |
20 25 |
|||||
Demoulding Angle |
±2 |
9,10,11,12 |
||||||||||

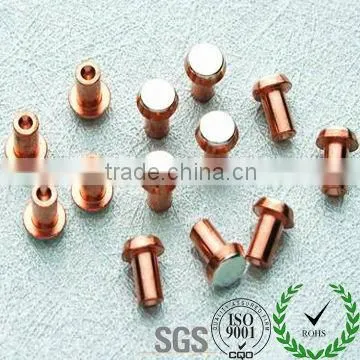

Real products:
Thank you for clicking our product, And if this product couldn’t meet your requirements or if you have any other needs, Please visit our website ( ), Also you can click the trademanage to contact us.
