Silver Tin AgCdO Bimetal Contact Rivets Has Good Electrical Contact Property

Silver Tin AgCdO Bimetal Contact Rivets Has Good Electrical Contact Property thumbnail-1
Silver Tin AgCdO Bimetal Contact Rivets Has Good Electrical Contact Property thumbnail-2
Silver Tin AgCdO Bimetal Contact Rivets Has Good Electrical Contact Property photo-1
Silver Tin AgCdO Bimetal Contact Rivets Has Good Electrical Contact Property photo-2
US$ 0.005 - 0.3 MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saijin
Model Number:
sj-08
Contact Supplier Request Quote Chat Now
Wenzhou Saijin Electrical Alloy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saijin
Model Number sj-08
Main Materials:


Plate and punched materials

Content(wt.%)

≥

Density(g/cm3)

≤

Resistance Rate μ(Ω·cm)

Tensile Strength

N / mm²

Elongating %

     ≥

Hardness HV (MPa) ≥

AgNi (10) (P.E)

10

10.10

2.00

220~380

8

700~900

AgNi (15) (P.E)

15

9.90

2.20

320~410

6

800~1100

AgCdO(10) (P)

10

10.10

2.10

250~360

12

250~360

AgCdO(15) (P)

15

9.90

2.40

260~400

8

260~400

AgSnO2 (8) (P.E)

8

9.90

2.20

260~380

8

700

AgSnO2( 12) (P.E)

12

9.80

2.60

260~420

6

750

Ag   soft

100

10.50

1.67

200

30

300

Ag   hard

100

10.50

1.67

360

2

450

AgCu(5)

5

10.40

1.96

270

17

600

AgCu(10)

10

10.30

2.00

280

15

700



Specifications

1.15 years experience best quality
2.ISO9001,SGS,RoHS Certificate
3.Material:Cu,Ag,FAg,AgCdO

Specifications of Bi-metal Rivets:

           Items

Limit Deviation

                        Basic Dimension

Head Diameter/mm

±0.1

2.5

3

3.5

4

4.5

5

5.5

6

6.5

7

8



Head Thickness/mm



±0.05

0.6

0.8

1.0

0.8

1.0

1.2

1.0

1.2

1.5

1.0,  1.2

1.5,  2.0



1.2, 1.5, 2.0



Head Layer/mm

S<0.4±0.060

S>0.4±0.060



0.3-0.4



0.35-0.50



0.40-0.60



0.50-0.70



Shank Diameter/mm

-0.02

-0.10

1.2



1.5



1.5

1.5



2.0



2.0

2.0



2.5



2.5

2.5



3.0



3.0

3.0



3.5



3.5



4.0

Shank Length/mm

+0.150

     1-2.0

                        1-3.0



Spheric Radius/mm

R<6±1

R>6±2

4

6

6

8

8

10

10

15

15

20

20

25

Demoulding Angle

±2

                     9,10,11,12

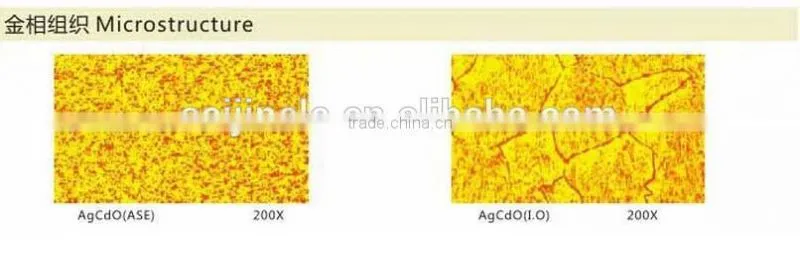

 picture show

silver tin AgCdO bimetal contact rivets has good electrical contact propertysilver tin AgCdO bimetal contact rivets has good electrical contact propertysilver tin AgCdO bimetal contact rivets has good electrical contact property

silver tin AgCdO bimetal contact rivets has good electrical contact property

workshop

silver tin AgCdO bimetal contact rivets has good electrical contact property
