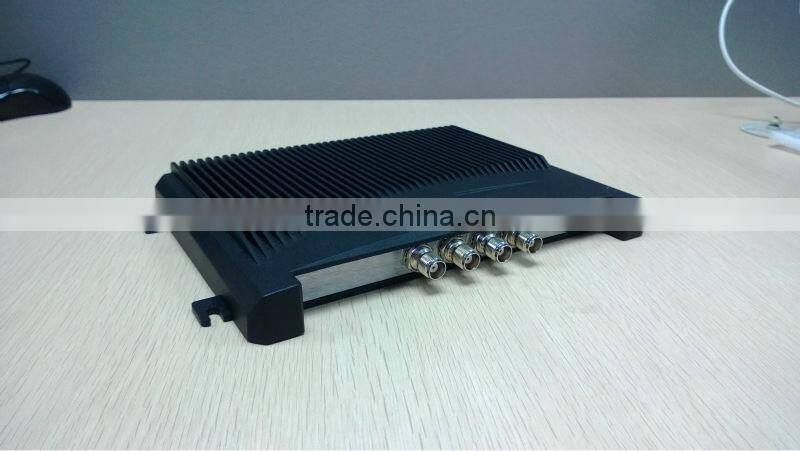

IP65 Long Range UHF RFID Reader for Car Parking System

Name: IP65 Long Range UHF RFID Reader for Car Parking System
Brand: Huaxin Genvict
SKU: 109487331
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Huaxin Genvict

Model Number:

W7640

Guangdong Huaxin Genvict Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen china

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Huaxin Genvict

Model Number W7640

Specifications

IP65 long range UHF RFID reader for car parking system
-Double Core,500tags,GRPS, WIFI,RJ45,RS232
-4 antenna suported

IP65 long range UHF RFID reader for car parking system

Introduction & feature:

Double industrial CPU design, Keep high performance and 24hrs X 365days no crash
ISO18000-6C/6B protocols compatible
Special dynamic Q anti-collision algorithm brings out excellent multi tag function
9dBi specialized antenna, up to stable 12m-15m reading distance.
Split Type and standard installing design, Very convenient In Site Operation
IP65, Sturdy and durable because of high strength integrative cast aluminum body
-85dBm high sensitivity

Chinese No.1 UHF RFID long Range RFID manufacturer!!!

Application:

Traffic (Express Way, Parking Lot): ETC (Electronic Toll Collection) , Vehicle Checking, Management
Retail (Sales Floor; POS; backroom): Inventory/cycle counting, Automatic replenishment, Receiving/shrink control, Item finding
Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding
Healthcare(Hospitals; clinics), Asset management (for high value critical assets), Patient tracking,, Item finding
Manufacturing / Warehousing(Animal Mangagement system;Production line; Warehouse aisles and loading docks)
Logistic / Supply Chain Express; Container tracking Inventory/cycle counting Receiving/shrink control Item finding

The Best RFID high-tech production equipments in China!!!

We have very strict inspection process!!!!

Specification:

CPU:		Double CPU design
Chip:		Special High performance Impinj UHF RIFD chip
	Working Voltage:	3.7V – 5 V
	Standby Current:	<50mA (EN Feet high level))
	Sleep Current:	<100uA (EN feet low level)
	Working Current:	1.2A +/-10%
	Working Temperature:	- 20 °C - + 55 °C
	Storage Temperature:	- 20 °C - + 85 °C
	Relative Humidity:	< 95% ( + 25 °C)
	Interface Protocol:	EPC global UHF Class 1 Gen 2 / ISO 18000-6C ISO 18000-6B
	Frequency Range:	860Mhz – 960Mhz
	Working Area supported:	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan, Korea, Malaysia, Taiwan
	Output Power:	20 – 33dBm
	Power Precision:	+/- 1dB
	Power Flatness:	+/- 0.2dB
	Receiving Sensitivity:	< -85 dBm
	Inventory Peak Speed:	> 500pcs
	Tags Buffer Cache:	800pcs @ 96 bit EPC
	Tag RSSI	Supported
	Antenna Connection Protection:	Supported
	Temperature Monitoring:	Supported
	Working Mode:	Single/Intensive Mode
	Communication Interface:	TTL UART(RS232) Interface
	GPIO	2 input, 2 output (3.3V level)
	Baud Rate	115200 bps
	Heat-dissipating Method:	External cooling fin
