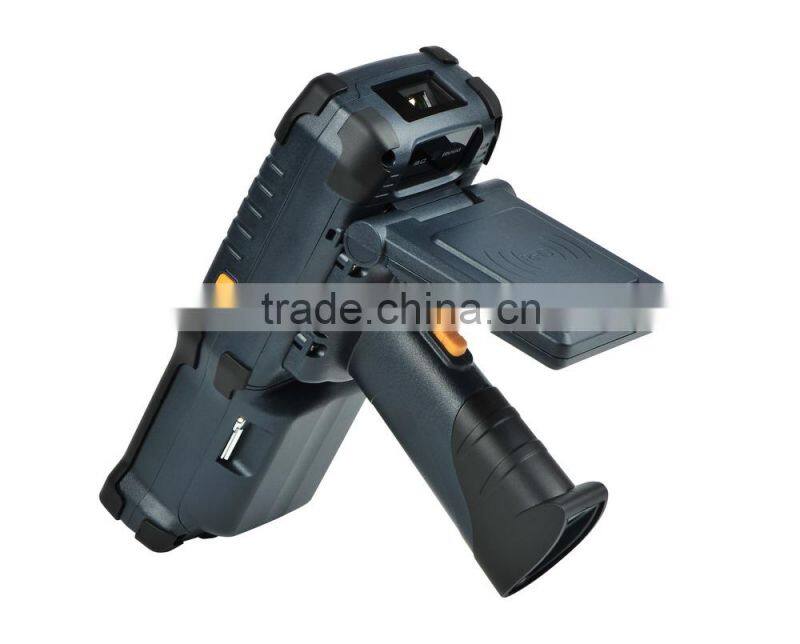

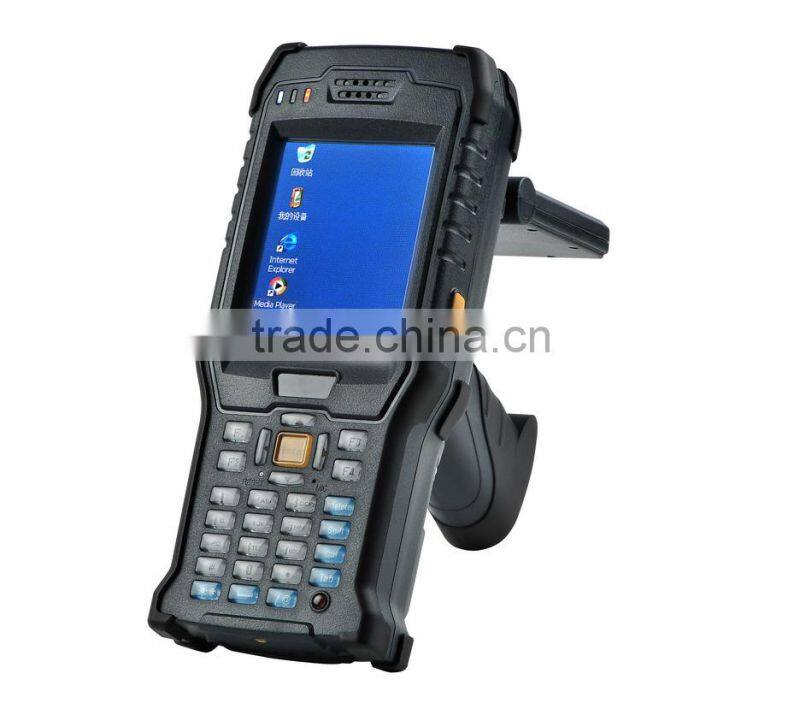

handheld IP65 RFID UHF scanner

Specifications

Long distance UHF RFID Portable Reader Industrial Mobile Terminal
-Win CE, Android,1.2m drop, IP65 rugged
-GPS BT GPRS Bar QR

7-12m Long Range UHF RFID Handheld Reader

 INTRODUCTION & FEATURE:

  Patented high-end, imposing, visual impact and refined appearance design cooperated with famous industrial design company.

  Learned many advantages of similar products at home and abroad, abandoned the design flaws on the market in appearance, structure, performance, operation using and so on

  Completely self-owned brand, independent R&D team, and complete production line. Novelty, special, visual impact, atmospheric appearance design. Strong Battery, humanized hand trip brings long time comfortable operation experience.

  Windows CE 6.0 Operation System (ARM11, 800MHz), excellent human-computer interaction interface.

  Industrial device by environmentally friendly hard-wearing materials.

IP65 rugged, 1.2m free drop tested, and applies to kinds of severe environment easily.

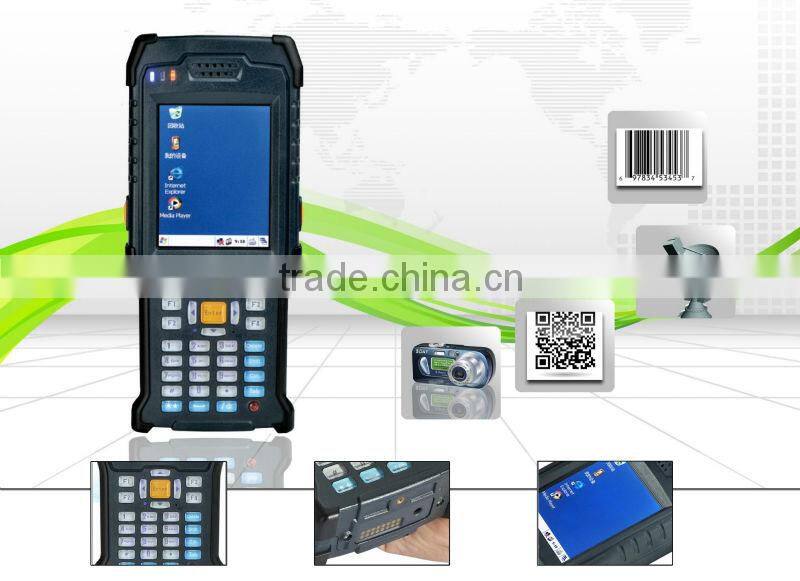

  4 kinds of data capture (UHF/HF RFID, 1D/2D Barcode Scanner, GPS, Camera, 4 kinds of communication: WIFI, Bluetooth, GPRS/GSM ,USB optional

  Max RFID module and antenna completely self-developed. Chinese No.1 UHF RFID Long reading distance up to 3-8m (max 9-12m) - Keeps champion.

  Most competitive product in ITS ( Express Way, Parking Lot, Vehicle Checking Management); Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding

people management, electric power, energy and chemical industry, bank system, retails, manufacturing, fashion, express send-receive, warehousing logistics (Production line; Warehouse aisles and loading docks) , hotel, safety, anti-counterfeiting and so on tracking management areas.

  1^ST GENERATION INDUSTRIAL HANDHELD MOBILE TERMINAL

 CE / CCC / IP65 CERTIFICATED

SPECIFICATIONS:

System
Operation System:	Windows   CE 6.0, Chinese, English, Russian or customizable
CPU:	Samsung   6410 ARM11 processor, 800MHz
Memory Capacity:	128MB DDR SDRAM,256MB ROM
Extended   Memory:	2G/4G/8G/16G/32G   SD
LCD   Screen
Size:	3.5",240*320 TFT LCD
Loudspeaker:	Built-in
UHF   RFID (standard)
Protocol:	ISO18000-6C / EPC C1Gen2
Frequency:	860-960MHz,
	Different area frequency customization   optional
Antenna:	Circular 4dBi
Reading Distance:	0-8m
HF   RFID (optional)
Protocol:	ISO14443A/B, ISO15693
Frequency:	13.56MHz,
Reading Distance:	0-8cm
1D/2D Barcode (optional)
Identify mode:	Laser Scanning
1D Barcode type:	Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China   post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc
2D Barcode type:	PDF417, QR Code, Data Matrix, Aztec,   Maxiccode. LP code, Chinese-sensible code, etc
GPS Location (optional)
Location   Precision:	Within 10 meters
Image   Acquisition (optional)
Pixel:	3.2M Pixel auto-focused
Wi-Fi (standard)
Protocol:	IEEE 802.11b/g
Distance:	100m indoor/300m outdoor
Bluetooth (standard)
Protocol:	V 2.0
GPRS/GSM/CDMA (optional)
GSM Bands:	850/900/1800/1900 MHz
Battery   parameter
Capacity:	7.4V 3500mAh li-polymer
Operational   environment
Working Temperature:	-30 - +60°C
Storage Temperature:	-40 - +85°C
Relative Humidity:	5%-95% RH  no condensing
Protection Grade:	IP65, 1.2 meter free fall into concrete
Physical   parameter
Size:	200mm*84mm*155mm
Weight:	About 850g

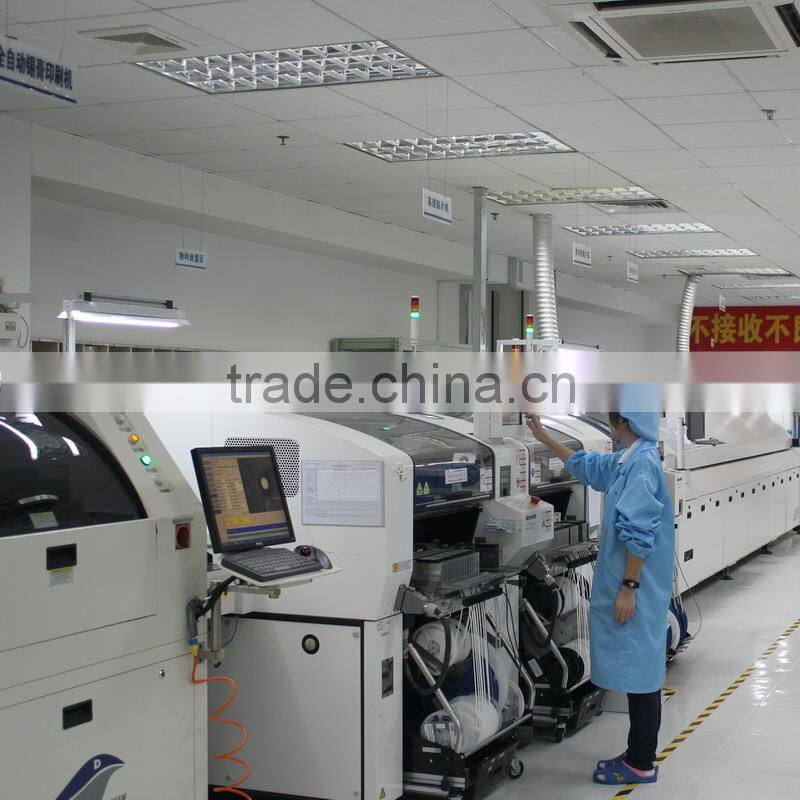

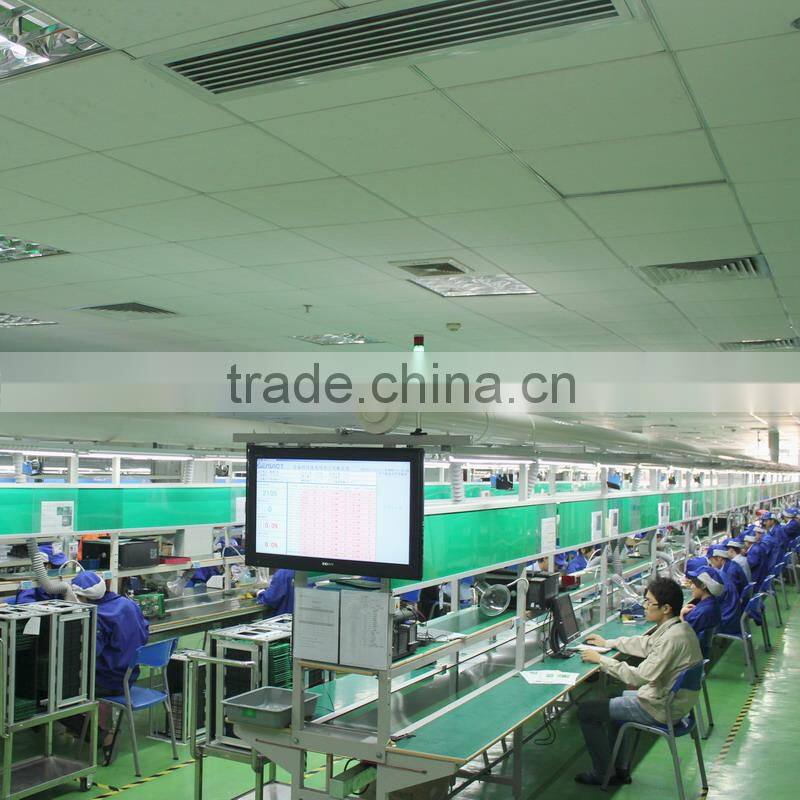

Chinese Most Complete RFID Production Base

MORE THAN 15 YEARS RFID R&D EXPERIENCE

MoreFor Most Professional Before Sale / After Sale Service / Quality Warranty or Technology Support , please kindly email or call us now. We will offer full solution to satisfy you.

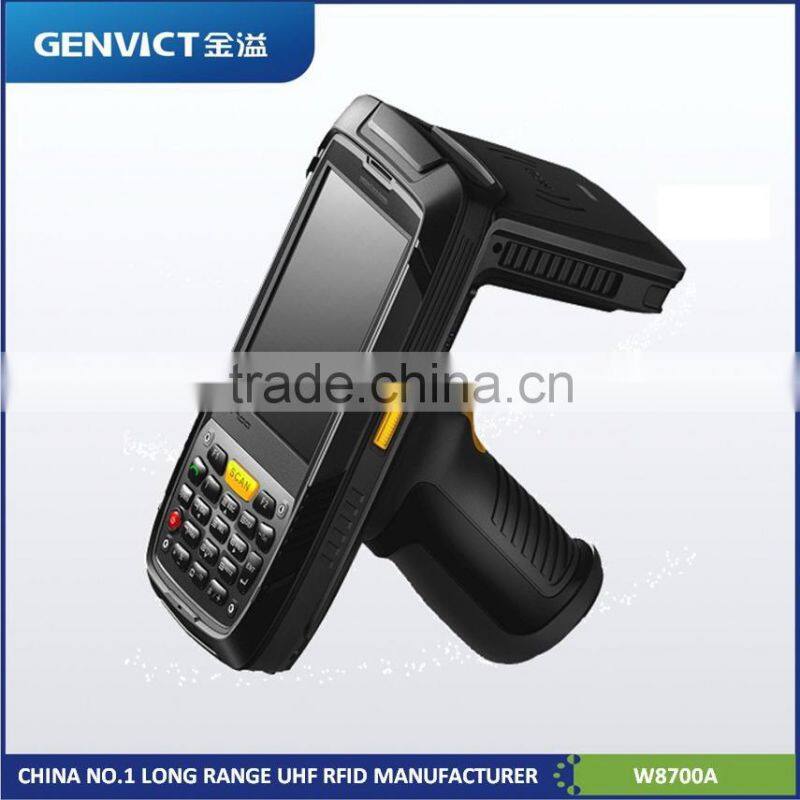

Almost the same reading distance RFID Reader: W8700A
