Specifications
Long range reading UHF RFID reader for asset-Android,1.2m drop, IP65 rugged
-GPS GPRS WIFI Camera 1D/2D Barcode
-SDK DEMO

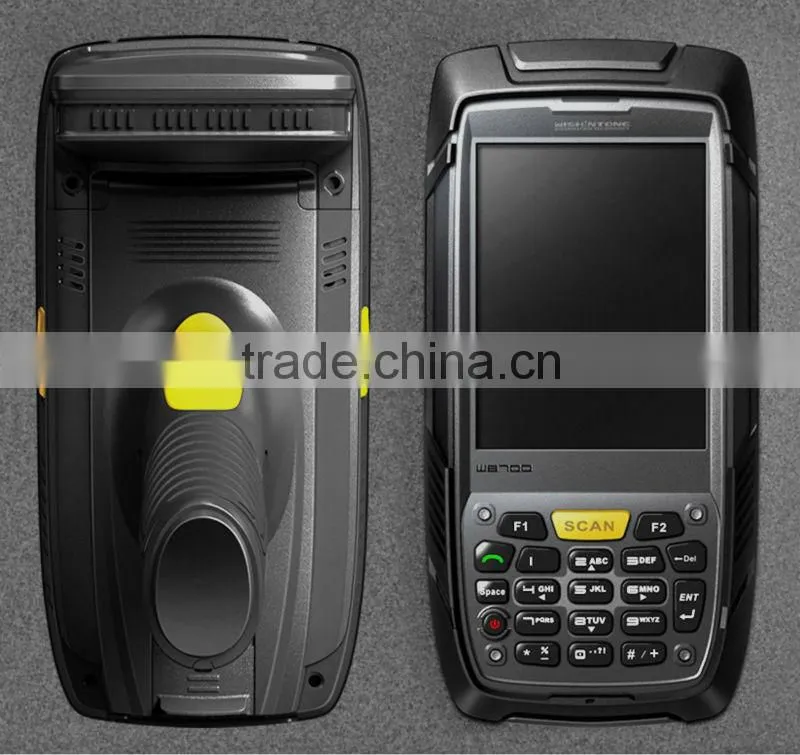

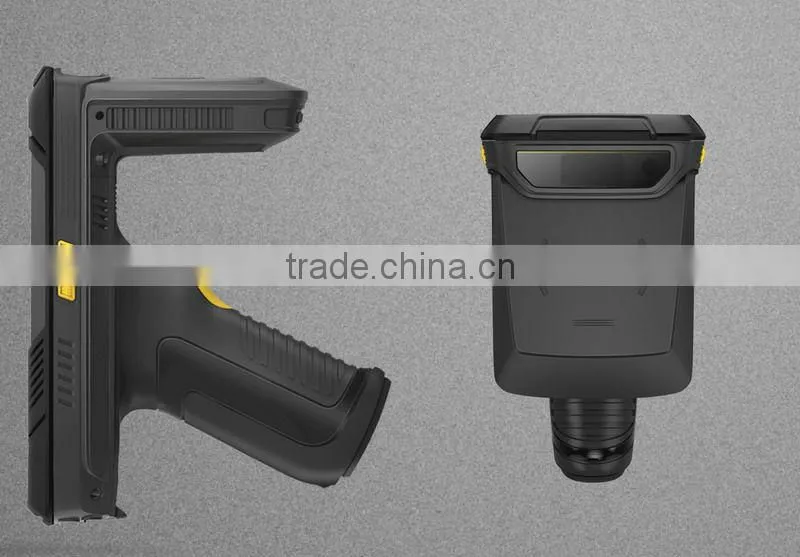

5m long distance high qulity and cheap price reader UHF RFID with GPRS/3G network,GPS
Feature:
- Completely self-owned brand. Independent R&D. Excellent human-computer interaction interface. User-friendly design with handle.
- Industrial handheld terminal, IP65 1.2 drop test passed.
- Windows CE 6.0 and Android 4.0 operation system, Multi-language optional
- 8 main functions: RFID (HF/UHF) , WIFI, Bluetooth, GPRS,GSM, 3G WCDMA, GPS+Beidou location, camera(night vision),1D/2D Barcode Scanner, BiometricsFingerprint Reader supported and optional.
- Patented 2013 New Breakout device. Performance will be out of your imagination.
- The No.1 long range RFID technology in China. Up to 3-7 meters reading distance
- Supports regions based on European RFID frequencies (Europe 865-868MHz ETSI EN 302 208) and US RFID frequencies
Chinese No.1 UHF RFID long Range RFID manufacturer!!!
Application:
- Traffic (Express Way, Parking Lot): ETC (Electronic Toll Collection) , Vehicle Checking, Management
- Retail (Sales Floor; POS; backroom): Inventory/cycle counting, Automatic replenishment, Receiving/shrink control, Item finding
- Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding
- Healthcare(Hospitals; clinics), Asset management (for high value critical assets), Patient tracking,, Item finding
- Manufacturing / Warehousing(Production line; Warehouse aisles and loading docks)
- Logistic / Supply Chain Express; Container tracking Inventory/cycle counting Receiving/shrink control Item finding
System | |
Operation System |
Windows CE 6.0 |
CPU |
ARM11 processor Samsung CPU, dominant frequency 800MHz |
Memory Capacity |
128MB DDR SDRAM,256MB ROM |
Operation System |
Android 4.0 |
CPU |
ARM11processor Samsung CPU, quad-core 4*1.2GHz |
Extended Memory |
2G/4G/8G/16G/32G SD |
LCD Screen | |
Size |
3.5" |
Type |
Semi-permeable TFT LCD (visual under sunshine outdoor) |
LED: |
Three-color LED Status |
Loudspeaker: |
Could be intruded (built-in) |
UHF RFID | |
Protocol: |
ISO18000-6C/EPC C1Gen2 |
Frequency: |
USA 902-928MHz FCC part 15 |
|
Europe 865-868MHz ETSI EN 302 208 |
|
China 920-925MHz |
|
Japan 952-954MHz |
|
Other country frequency customization optional |
Antenna: |
Circular 4dBi |
Reading Distance: |
1-7m |
1D/2D Barcode | |
Identify mode: |
Laser Scan |
Identify depth field: |
45mm-450mm |
Barcode type: |
2D:PDF417,QR Code, Data Matrix, Aztec, Maxiccode. LP code, Chinese-sensible code, etc |
|
1D:Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
Fingerprint Reader | |
Sensor Type |
Inductance type |
|
Registration time |
<3S |
Rate |
FAR<0.001%,FRR<0.1% |
GPS Location | |
Cold start time: |
Within 45 seconds |
Location precision: |
Within 10 meters |
Image Acquisition | |
Pixel: |
3.2M pixel built-in AF function |
Night Vision Image Acquisition | |
Pixel |
100,000,0 pixel |
Night Vision Range |
3-5 meters |
Wi-Fi Communication | |
Protocol |
IEEE 802.11b/g |
Distance |
100m indoor/300m outdoor |
Receiver Sensitivity |
-75dBm |
Transmitting Power |
within 100mW |
Bluetooth Communication | |
Protocol |
Support versions 2.0 |
GPRS/GSM/CDMA/3G WCDMA | |
GSM Bands |
850/900/1800/1900 MHz |
Interface | |
External port |
USB 2.0, RS232, RJ45adaptor |
Extend port |
1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity |
7.4V 3500mAh li-polymer battery |
Operational environment | |
Working Temperature |
-30 - +60°C |
Storage Temperature |
-40 - +85°C |
Relative Humidity |
5%-95% RH no condensing |
Protection Grade |
IP65 |
Drop Test: |
1.2 meter free fall into concrete |
Physical parameter | |
Size |
160mm*77mm*30mm |
Hand Shank |
100mm |
Weight |
650 g including hand shank |
