Specifications
Handheld Rfid Reader with fingerprint, 3G, barcode, GPS, wifi, IP65-Win CE 6.0 ,IP65
-WIFI,Bluetooth,camera,finegrpritn scan

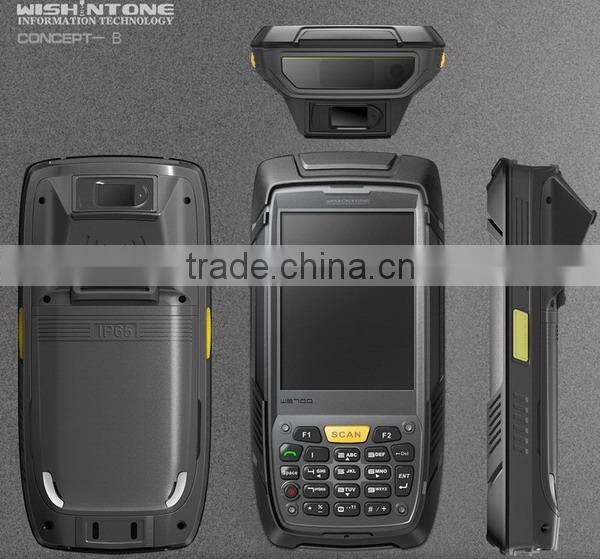

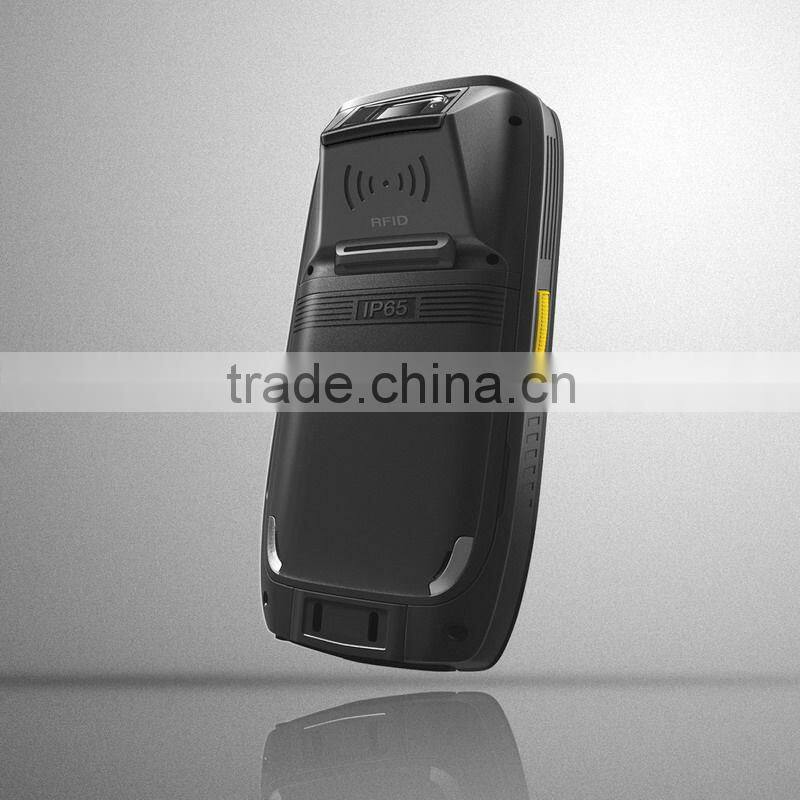

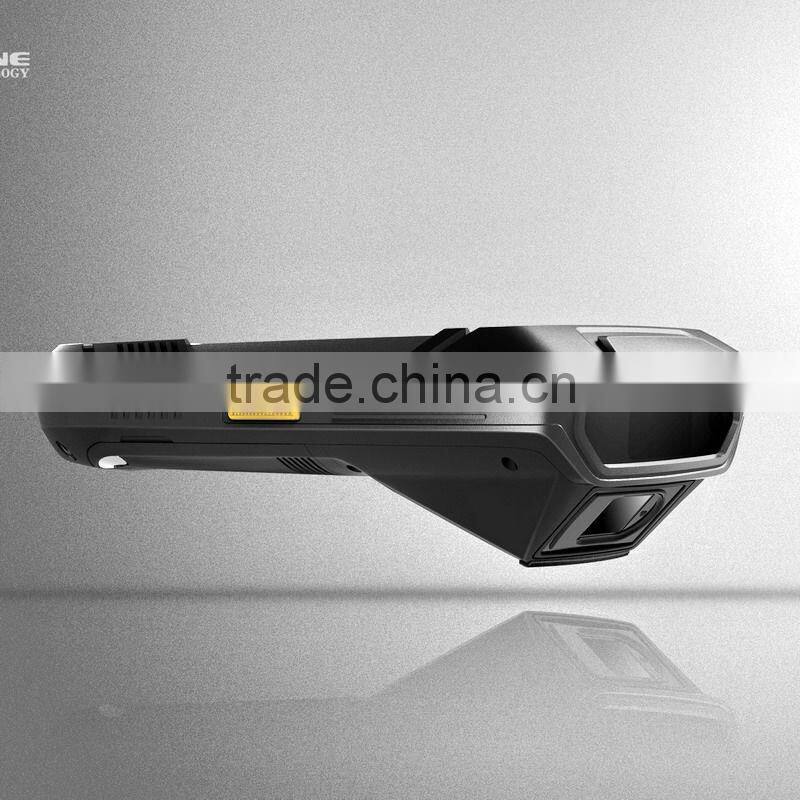

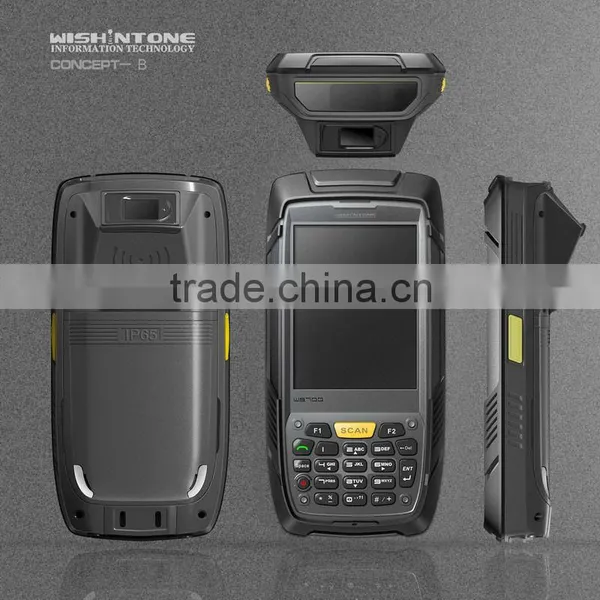

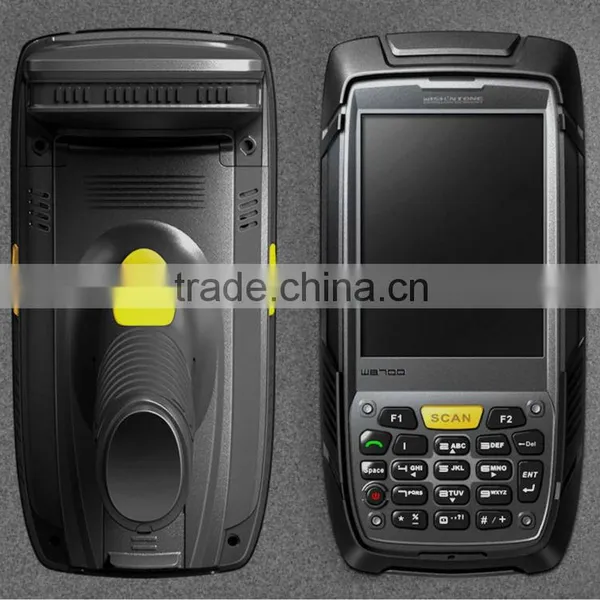

Handheld Rfid Reader with fingerprint, 3G, barcode, GPS, wifi, IP65
- Novelty, special, visual impact, elegant and refined appearance design cooperated with Red Dot Award winner company.
- Completely self-owned brand, independent R&D and patented product. Excellent human-computer interaction interface.
- Innovative ergonomic compact lightweight design, brings long time comfortable operation experience
- Industrial handheld mobile terminal by environmentally friendly hard-wearing materials.
- IP65 rugged, 1.5m free drop tested, and applies to kinds of severe environment easily.
- 5 kinds of data capture and 4 kinds of data communication functions optional, meet your kinds of application demand
- Excellent high speed and accuracy biometric identification as standard configuration, fingerprint scanner FAR< 0.001%
- Most competitive product in people management, electric power, energy and chemical industry, bank system, retails, manufacturing, fashion, express send-receive, logistics, hotel, safety, anti-counterfeiting and so on tracking management areas.
System | |
Operation System: |
Windows CE 6.0 Samsung 6410 ARM11 processor, 800MHz |
Memory Capacity: |
128MB DDR SDRAM,256MB ROM |
Extended Memory: |
2G/4G/8G/16G/32G SD |
LCD Screen | |
Size: |
3.5" 240*320 TFT LCD |
Loudspeaker: |
Built-in |
Biometric Identification (standard) | |
Fingerprint Sensor: |
Capacitance |
Registration Time: |
<3s |
FAR: |
<0.001% |
1D Barcode (optional) | |
Identify mode: |
Laser Scan |
Barcode type: |
Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
UHF RFID (optional) | |
Protocol: |
ISO18000-6C/EPC C1Gen2 |
Frequency: |
860-960MHz, |
Reading Distance: |
0-1.5m |
HF RFID (optional, can’t be built-in with UHF RFID at same time) | |
Protocol: |
ISO14443A/B, ISO15693 |
Frequency: |
13.56MHz, |
Reading Distance: |
0-8cm |
GPS Location(optional) | |
Cold start time: |
Within 60 seconds |
Location Precision: |
Within 10 meters |
Image Acquisition(optional) | |
Pixel: |
3.2M Pixel auto-focused |
Wi-Fi (standard) | |
Protocol: |
IEEE 802.11b/g |
Distance: |
100m indoor/300m outdoor |
Receiver Sensitivity: |
-75dBm |
Transmitting Power: |
within 100mW |
Bluetooth (standard) | |
Protocol: |
V 2.0 |
GPRS/GSM/CDMA(optional) | |
GSM Bands: |
850/900/1800/1900MHz |
Interface | |
External port: |
USB 2.0, RS232 |
Extend port: |
1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity: |
3.7V 4000mAh li-polymer battery |
Operational environment | |
Working Temperature: |
-20 - +55°C |
Storage Temperature: |
-30 - +60°C |
Relative Humidity: |
5%-95% RH no condensing |
Protection Grade: |
IP65 |
Drop Test: |
1.5 meter free fall into concrete |
Physical parameter | |
Size: |
160mm*77mm*37mm |
Weight: |
About 450g |
Almost the same reading distance RFID Reader: W8700A
