Specifications

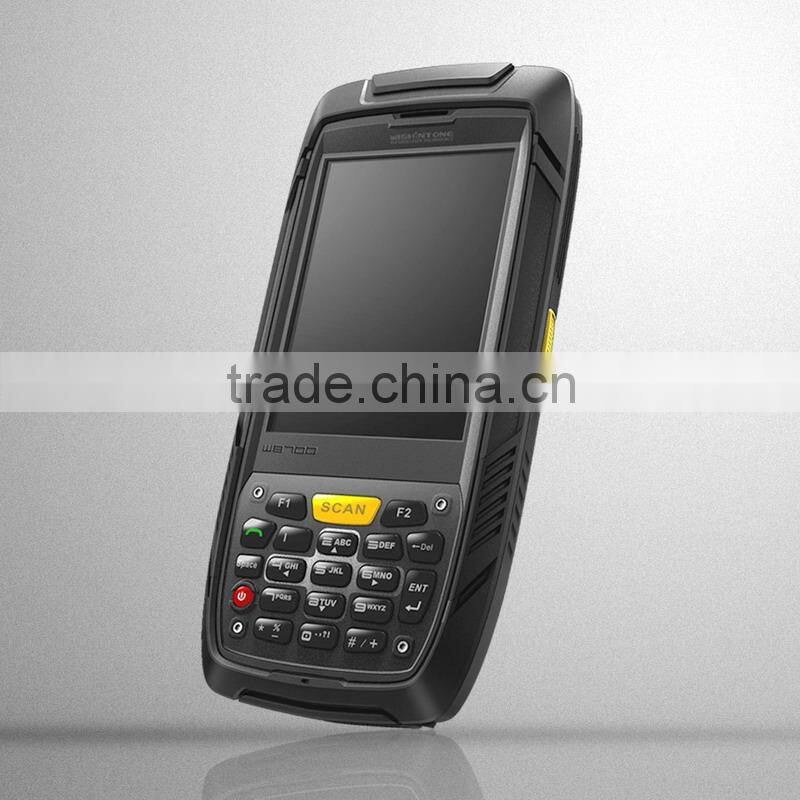

2014 new Android Barcode RFID reader-Android 4.0 IP65,Small size
-1D/2D,HF/UHF,3G,GPS,Bluetooth
-Changeable keyboard
Android IP65 RFID Bluetooth Barcode scanner
INTRODUCTION & FEATURE:
Chinese first Android 4.0 operation system mobile handheld terminal carrying Samsung quad-core CPU
Completely self-owned brand, independent R&D and patented product. Elegant and refined appearance design cooperated with Red Dot Award winner company.
Novelty, special, visual impact, 480*640HD touch screen. Changeable keyboard design. Excellent human-computer interaction interface.
Innovative ergonomic compact lightweight design, brings long time comfortable operation experience
Industrial device by environmentally friendly hard-wearing materials.
IP65 rugged, 1.5m free drop tested, and applies to kinds of severe environment easily.
7 main functions highly integrated: accurate Barcode Scanner (1D/2D), stable RFID (HF/UHF), GPS location, auto-focused 5.0MP Camera, multi choice wireless communication: WIFI, Bluetooth, and 3G WCDMA, supported and optional.
Most competitive product in people management, electric power, energy and chemical industry, bank system, retails, manufacturing, fashion, express send-receive, logistics, hotel, safety, anti-counterfeiting and so on tracking management areas.
2ND GENERATION INDUSTRIAL HANDHELD BARCODE TERMINAL
SPECIFICATIONS CHART:
System | |
Operation System: | Android 4.0 Multi-language |
CPU: | Samsung Exynos4412 Quad Core, ARM 9 processor, 1.4GHz |
Memory Capacity: | 1GB DDR SDRAM, 4GB ROM |
Extended Memory | 2G/4G/8G/16G/32G SD |
LCD Screen | |
Size: | 3.5" 480*640 HD LCD |
Loudspeaker: | Built-in (Volume adjustable) |
1D Barcode(standard) (2D barcode scanner optional) | |
Identify mode: | Laser Scan |
Identify depth field: | 45mm-450mm |
1D Barcode type: | Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
1D Barcode type: | PDF417, QR Code, Data Matrix, Aztec, Maxiccode. LP code, Chinese-sensible code, etc |
UHF RFID ( optional, can’t be built-in with 2D barcode scanner at same time) | |
Protocol: | ISO18000-6C/EPC C1Gen2 |
Frequency: | 860-960MHz, |
Reading Distance: | 0-1.5m |
HF RFID (optional, can’t be built-in with UHF RFID at same time) | |
Protocol: | ISO14443A/B, ISO15693 |
Frequency: | 13.56MHz, |
Reading Distance: | 0-8cm |
GPS Location (optional) | |
Cold start time: | Within 45 seconds |
Location precision: | Within 10 meters |
Image Acquisition(standard) | |
Pixel: | 5.0m pixel auto-focused |
Wi-Fi (standard) | |
Protocol: | IEEE 802.11b/g |
Distance: | 100m indoor/300m outdoor |
Receiver Sensitivity: | -75dBm |
Transmitting Power: | within 100mW |
Bluetooth (standard) | |
Protocol: | V4.0 |
GPRS/GSM/CDMA/WCDMA (standard, optional in bulk order) | |
3G Bands: | 850/900/1800/1900/2100 MHz |
Interface | |
External port: | USB 2.0, RS232 |
Extend port: | 1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity: | 3.7V 4000mAh li-polymer battery |
Operational environment | |
Working Temperature: | -20 - +55°C |
Storage Temperature: | -30 - +60°C |
Relative Humidity: | 5%-95% RH no condensing |
Protection Grade: | IP65 |
Drop Test: | 1.5 meter free fall into concrete |
Physical parameter | |
Size | 160mm*77mm*30mm |
Weight | 400-450g |
Chinese Most Complete RFID Production Base
FAQ:
Q: Need to know if the item could meet our applications?
A: Please send Rodan and technology team one Inquiry to get more details.
