Specifications
Lowest price wireless barcode scanner/data collector-Android 4.0 OS,IP 65
-Camera,GPS,,1D/2D barcode,WIFI
-Free SDK DEMO

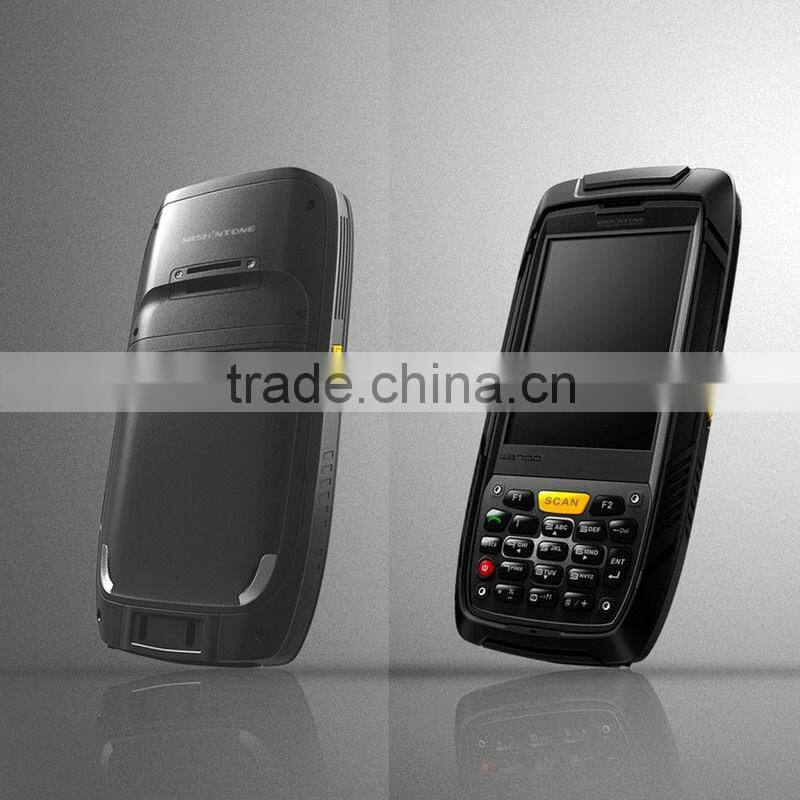

Lowest price wireless barcode scanner/data terminal
INTRODUCTION & FEATURE:
Chinese first Android 4.0 operation system mobile handheld terminal carrying Samsung quad-core CPU
Completely self-owned brand, independent R&D and patented product. Elegant and refined appearance design cooperated with Red Dot Award winner company.
Novelty, special, visual impact, 480*640HD touch screen. Changeable keyboard design. Excellent human-computer interaction interface.
Innovative ergonomic compact lightweight design, brings long time comfortable operation experience
Industrial device by environmentally friendly hard-wearing materials.
IP65 rugged, 1.5m free drop tested, and applies to kinds of severe environment easily.
7 main functions highly integrated: accurate Barcode Scanner (1D/2D), stable RFID (HF/UHF), GPS location, auto-focused 5.0MP Camera, multi choice wireless communication: WIFI, Bluetooth, and 3G WCDMA, supported and optional.
Most competitive product in people management, electric power, energy and chemical industry, bank system, retails, manufacturing, fashion, express send-receive, logistics, hotel, safety, anti-counterfeiting and so on tracking management areas.
System | |
Operation System |
Android 4.0 |
CPU |
ARM11 Samsung CPU, quad-core 4*1.2GHz |
Extended Memory |
32G SD |
LCD Screen | |
Size |
3.5" |
Type |
Semi-permeable TFT LCD (visual under sunshine outdoor) |
LED: |
Three-color LED Status |
Loudspeaker: |
Could be intruded (built-in) |
UHF RFID | |
Protocol: |
ISO18000-6C/EPC C1Gen2 |
Frequency: |
USA 902-928MHz FCC part 15 |
|
Europe 865-868MHz ETSI EN 302 208 |
|
China 920-925MHz |
|
Japan 952-954MHz |
|
Other country frequency customizable |
Antenna: |
Circular 2dBi |
Reading Distance: |
0-1.5m |
1D/2D Barcode | |
Identify mode: |
Laser Scan |
Identify depth field: |
45mm-450mm |
Barcode type: |
2D:PDF417,QR Code, Data Matrix, Aztec, Maxiccode. LP code, Chinese-sensible code, etc |
|
1D:Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
Fingerprint Reader | |
Sensor Type |
Capacitance |
Registration time |
<3s |
| Rate | FAR<0.001%,FRR<0.1% |
GPS Location | |
Cold start time: |
Within 45 seconds |
Location precision: |
Within 10 meters |
Image Acquisition | |
Pixel: |
5.0 M pixel auto-focused |
Wi-Fi Communication | |
Protocol |
IEEE 802.11b/g |
Distance |
100m indoor/300m outdoor |
Bluetooth Communication | |
Protocol |
Support versions 2.0 |
GPRS/GSM/CDMA/3G WCDMA | |
GSM Bands |
850/900/1800/1900/2100MHz |
Interface | |
External port |
USB 2.0, RS232 |
Extend port |
1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity |
3.7V 4000mAh li-polymer battery |
Operational environment | |
Working Temperature |
-20 - +55°C |
Storage Temperature |
-30- +60°C |
Relative Humidity |
5%-95% RH no condensing |
Protection Grade |
IP65 |
Drop Test: |
1.5 meter free fall into concrete |
Physical parameter | |
Size |
160mm*77mm*37mm |
Hand Shank |
100mm |
Weight |
450 g |
Parts | |
Cable |
USB cable and adaptor |
Charge |
Adaptor and battery |
