Specifications
Long range handheld UHF RFID reader-Android 4.0,1.2m drop,IP65 rugged
-WIFI,Bluetooth,camera,1D/2D barcode scanner,GPRS

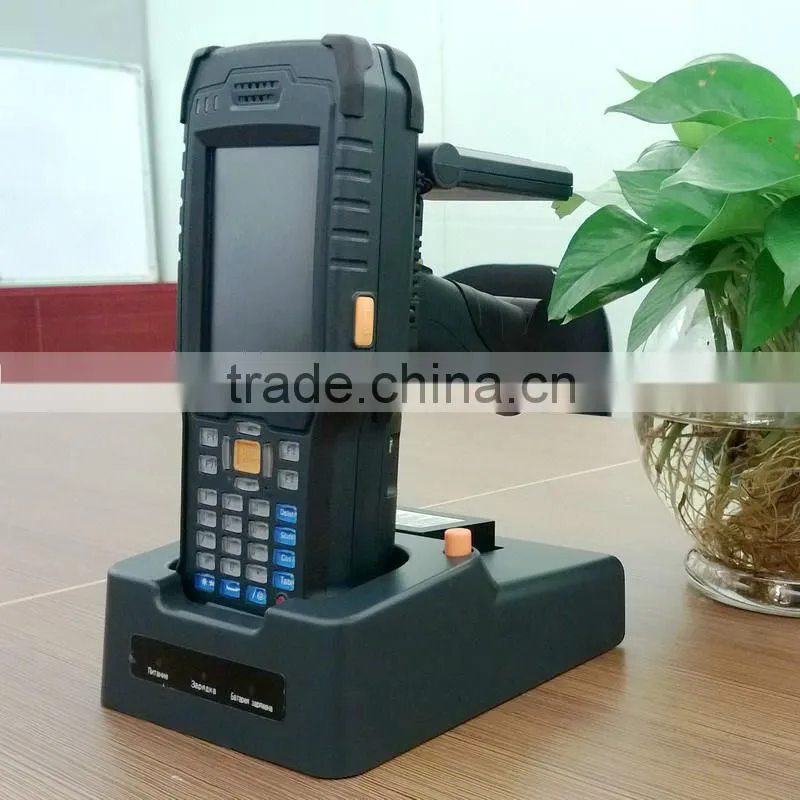

860-960mhz Long Range handheld UHF RFID Reader price (7M to 12M)
INTRODUCTION & FEATURE:
Patented high-end, imposing, visual impact and refined appearance design cooperated with famous industrial design company.
Learned many advantages of similar products at home and abroad, abandoned the design flaws on the market in appearance, structure, performance, operation using and so on
Completely self-owned brand, independent R&D team, and complete production line. Novelty, special, visual impact,atmospheric appearance design. Strong Battery, humanized hand trip brings long time comfortable operation experience.
Windows CE 6.0 Operation System (ARM11, 800MHz), excellent human-computer interaction interface.
Industrial device by environmentally friendly hard-wearing materials.
IP65 rugged, 1.2m free drop tested, and applies to kinds of severe environment easily.
4 kinds of data capture (UHF/HF RFID, 1D/2D Barcode Scanner, GPS, Camera, 4 kinds of communication: WIFI, Bluetooth, GPRS/GSM ,USB optional
Max RFID module and antenna completely self-developed. Chinese No.1 UHF RFID Long reading distance up to 3-8m (max 9-12m) - Keeps champion.
Most competitive product in ITS ( Express Way, Parking Lot, Vehicle Checking Management); Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding
people management, electric power, energy and chemical industry, bank system, retails, manufacturing, fashion, express send-receive, warehousing logistics (Production line; Warehouse aisles and loading docks) , hotel, safety, anti-counterfeiting and so on tracking management areas.
1ST GENERATION INDUSTRIAL HANDHELD MOBILE TERMINAL
CE / CCC / IP65 CERTIFICATED
SPECIFICATIONS:
System | |
Operation System: | Windows CE 6.0, Chinese, English, Russian or customizable |
CPU: | Samsung 6410 ARM11 processor, 800MHz |
Memory Capacity: | 128MB DDR SDRAM,256MB ROM |
Extended Memory: | 2G/4G/8G/16G/32G SD |
LCD Screen | |
Size: | 3.5",240*320 TFT LCD |
Loudspeaker: | Built-in |
UHF RFID (standard) | |
Protocol: | ISO18000-6C / EPC C1Gen2 |
Frequency: | 860-960MHz, |
| Different area frequency customization optional |
Antenna: | Circular 4dBi |
Reading Distance: | 0-8m |
HF RFID (optional) | |
Protocol: | ISO14443A/B, ISO15693 |
Frequency: | 13.56MHz, |
Reading Distance: | 0-8cm |
1D/2D Barcode (optional) | |
Identify mode: | Laser Scanning |
1D Barcode type: | Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
2D Barcode type: | PDF417, QR Code, Data Matrix, Aztec, Maxiccode. LP code, Chinese-sensible code, etc |
GPS Location (optional) | |
Location Precision: | Within 10 meters |
Image Acquisition (optional) | |
Pixel: | 3.2M Pixel auto-focused |
Wi-Fi (standard) | |
Protocol: | IEEE 802.11b/g |
Distance: | 100m indoor/300m outdoor |
Bluetooth (standard) | |
Protocol: | V 2.0 |
GPRS/GSM/CDMA (optional) | |
GSM Bands: | 850/900/1800/1900 MHz |
Battery parameter | |
Capacity: | 7.4V 3500mAh li-polymer |
Operational environment | |
Working Temperature: | -30 - +60°C |
Storage Temperature: | -40 - +85°C |
Relative Humidity: | 5%-95% RH no condensing |
Protection Grade: | IP65, 1.2 meter free fall into concrete |
Physical parameter | |
Size: | 200mm*84mm*155mm |
Weight: | About 850g |
