Specifications
2nd Generation UHF RFID handheld reader-Android 4.0 or WinCE 6.0 optional
-3G,Fingerprint,Barcode,BT
-3-7m RFID distance
Ever Changing RFID Handheld Mobile Terminal
2NDGENERATION INDUSTRIAL HANDHELD MOBILE TERMINAL
INTRODUCTION & FEATURE:
- Novelty, special, visual impact, elegant and refined appearance design cooperated with Red Dot Award winner company.
- Completely self-owned brand, independent R&D and patented product. Excellent human-computer interaction interface.
- Innovative ergonomic compact lightweight design with hand grip, brings long time comfortable operation experience
- Industrial device by environmentally friendly hard-wearing materials.IP65 rugged, 1.2m free drop tested, and applies to kinds of severe environment easily.
- 4 kinds of data capture and 4 kinds of data communication functions optional. Double batteries support long time endurance
- Max RFID module and antenna completely self-developed. UHF RFID Long reading distance up to 3-7m (max 8-10m)
- Most competitive product in ITS ( Express Way, Parking Lot, Vehicle Checking Management); Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding people management, electric power, energy and chemical industry, bank system, retails, manufacturing, fashion, express send-receive, warehousing logistics (Production line; Warehouse aisles and loading docks) , hotel, safety, anti-counterfeiting and so on tracking management areas.
2014 New Long Rang RFID handheld terminal
SPECIFICATIONS:
System | |
Operation System: |
Windows CE 6.0 |
CPU: |
Samsung 6410 ARM11 processor, 800MHz |
Memory Capacity: |
128MB DDR SDRAM,256MB ROM |
Extended Memory: |
2G/4G/8G/16G/32G SD |
LCD Screen | |
Size: |
3.5",240*320 TFT LCD |
Loudspeaker: |
Built-in(Volume adjustable) |
UHF RFID (standard) | |
Protocol: |
ISO18000-6C / EPC C1Gen2 |
Frequency: |
860-960MHz, |
Different area frequency customization optional |
|
Antenna: |
Circular 4dBi |
Reading Distance: |
0-7m |
1D Barcode (optional) | |
Identify mode: |
Laser Scan |
Barcode type: |
Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
GPS Location (optional) | |
Location Precision: |
Within 10 meters |
Image Acquisition (optional) | |
Pixel: |
3.2M Pixel auto-focused |
Wi-Fi (standard) | |
Protocol: |
IEEE 802.11b/g |
Distance: |
100m indoor/300m outdoor |
Receiver Sensitivity: |
-75dBm |
Transmitting Power: |
within 100mW |
Bluetooth (standard) | |
Protocol: |
V 2.0 |
GPRS/GSM/CDMA (optional) | |
GSM Bands: |
850/900/1800/1900 MHz |
Interface | |
External port: |
USB 2.0, RS232 |
Extend port: |
1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity: |
Main Battery: 3.7V 4000mAh li-polymer Secondary Battery: 3.7V 2000mAh li-polymer battery ( specially designed only for UHF RFID working) |
Operational environment | |
Working Temperature: |
-20 - +55°C |
Storage Temperature: |
-30 - +60°C |
Relative Humidity: |
5%-95% RH no condensing |
Protection Grade: |
IP65 |
Drop Test: |
1.2 meter free fall into concrete |
Physical parameter | |
Size: |
160mm*77mm*142mm |
Weight: |
About 600-650g |
Chinese Most Complete RFID Production Base
MORE THAN 10 YEARS RFID R&D EXPERIENCE
For More Professional Before Sale / After Sale Service / Quality Warranty or Technology Support , please kindly email or call Lucky now. We will offer full solution to satisfy you.

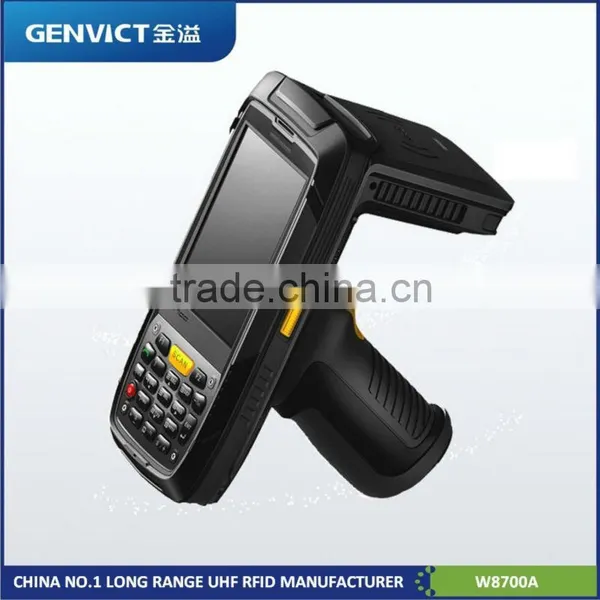

Notes: W8700A is a new industrial / rugged/ power handheld device mainly focused on Long Rang UHF RFID with pistol grip design. If your project have other main demand such us HF RFID, BARCODE or Biometric Identification FINGERPRINT.Welcome to have a look at our new models in same series as below.
Deeply believe that you can always find a suitable device for your RFID/Barcode/Fingerprint application projects.
W8700B fingerprint version
W8700C HF RFID / Barcode version
