20W 30W 50W COB Led Downlight Cool/Warm White Dimmable LED Bulb Lamp Light

20W 30W 50W COB Led Downlight Cool/Warm White Dimmable LED Bulb Lamp Light thumbnail-1
20W 30W 50W COB Led Downlight Cool/Warm White Dimmable LED Bulb Lamp Light thumbnail-2
20W 30W 50W COB Led Downlight Cool/Warm White Dimmable LED Bulb Lamp Light thumbnail-3
20W 30W 50W COB Led Downlight Cool/Warm White Dimmable LED Bulb Lamp Light photo-1
20W 30W 50W COB Led Downlight Cool/Warm White Dimmable LED Bulb Lamp Light photo-2
20W 30W 50W COB Led Downlight Cool/Warm White Dimmable LED Bulb Lamp Light photo-3
US$ 1 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
CITIZEN COB
Warranty(Years):
3
Input Voltage(V):
230
Contact Supplier Request Quote Chat Now
Shenzhen Voreal Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source CITIZEN COB
Warranty(Years) 3
Input Voltage(V) 230
Lamp Power(W) 30
Lamp Luminous Flux(lm) 2550
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Other, 2700K,3000K,4000K,5000K,
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE, EMC, LVD, SAA
Model Number CBT01
Place of Origin Guangdong, China
Brand Name VOREAL
Product Description

TUV Certified Led Driver 20W 30W 50W Dimmable Led Downlight

(Size:6inch,Recessed cob downlight with 230Vac input.)



Application

CFL, HID,CDM replacement, lighting for shopping mall, office, hotels, public areas etc.



Features
*Anti-glare Design UGR<19 ,halogen effect.
*Easy installation with nice spring position design.
*High Lumem and stable lighting output with Citizen COB.
*Dimmable driver Adopt TOP dimming IC on the market
Smooth dimming range from 100%~10%,and compatible with
most of the dimmers.

20W 30W 50W COB led downlight Cool/Warm White Dimmable LED Bulb Lamp Light



1;Product list



We have standard 4'' 5'' 6'' 7'' 8'' inch for this design,with patent;pls check more specification below



iLite Series cob downlight
No Item No Watt Leds CRI Lumen CCT Size Cutout Dimmable
4inch DL15100 15W Citizen 82+ 80-90LM/W 2700K,3000K,4000K,5000K,6500K φ120*62mm φ95-110mm Yes
DL20100 20W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ120*62mm φ95-110mm Yes
5inch DL20120 20W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ148*80mm φ125-138mm Yes
DL30120 30W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ148*80mm φ125-138mm Yes
DL50120 50W Citizen 82+ 90-110LM/W 2700K,3000K,4000K,5000K,6500K φ148*104mm φ127-138mm Yes
6inch DL20150 20W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ173*90mm φ148-163mm Yes
DL30150 30W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ173*90mm φ148-163mm Yes
DL50150 50W Citizen 82+ 90-110LM/W 2700K,3000K,4000K,5000K,6500K φ173*103mm φ148-163mm Yes
8inch DL20200 20W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ234*111mm φ198-220mm Yes
DL30200 30W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ234*111mm φ198-220mm Yes
DL40200 40W Citizen 82+ 85-100LM/W 2700K,3000K,4000K,5000K,6500K φ234*125mm φ198-220mm Yes
DL50200 50W Citizen 82+ 90-110LM/W 2700K,3000K,4000K,5000K,6500K φ234*125mm φ198-220mm Yes

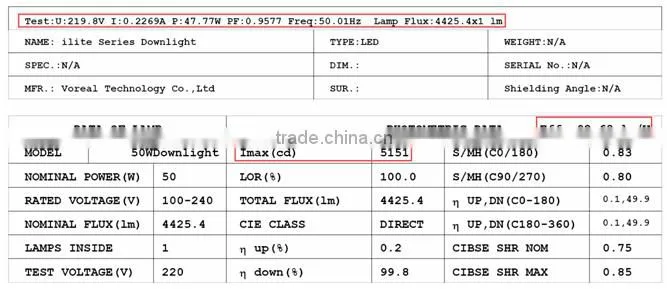

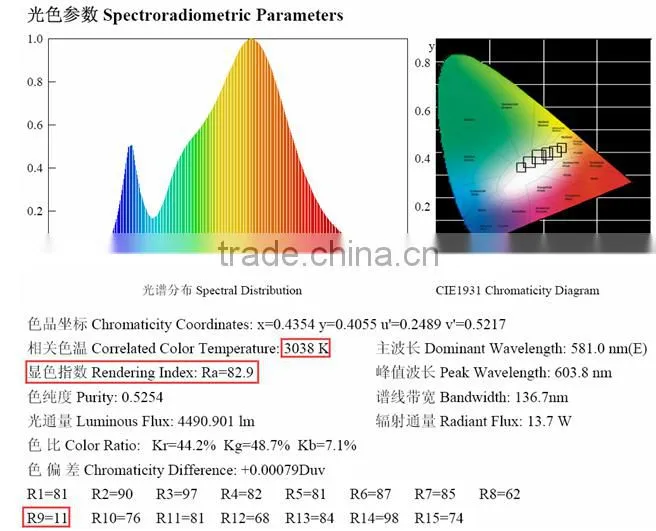

Below test Data is for your ref;Welcome to rquest complete test report if you need,thank you!

(IES,Erp,PHOTOMETRIC,SDCM,CIE ets report are available.)

(For exmaple:for 50W 3000K.)



2;Product introduction



a,LM80 Led source

We adopt NO.1 COB leds:Citizen cob with higher lumen output:120~150LM/W;



b,TUV Certified Driver,brand led driver on the market

We have stable cooperation with Lifud,Philips etc,and always adopt their newest technology on our lamps.

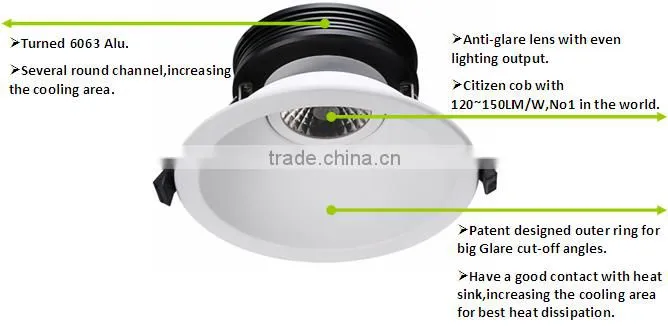

c,Anti-glare design with high quality heat sink

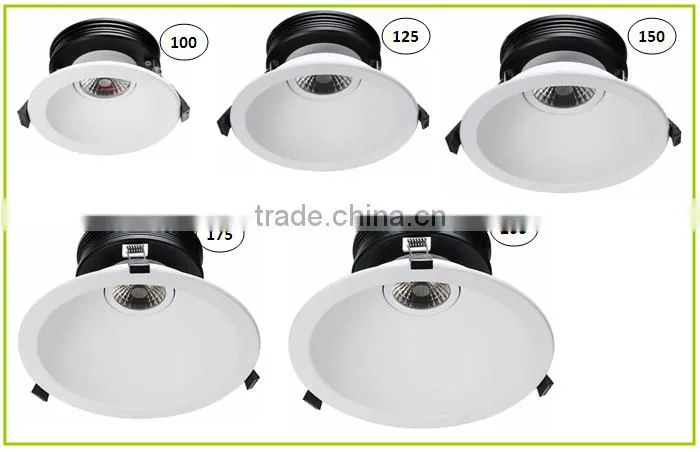

We provide standard 3,4,5,6,7,8 inch downlight with same anti-glare design.

And reach the watt from 15W-50W,and meet your various project requirement.



Lens:Anti-glare design,perfect even lighting output;

Outer ring:Increasing more cooling area for best heat dissipation;

Heat sink:Turned 6063 with several round channels for best heat dissipation.

Spring:Imported material for strong tension;

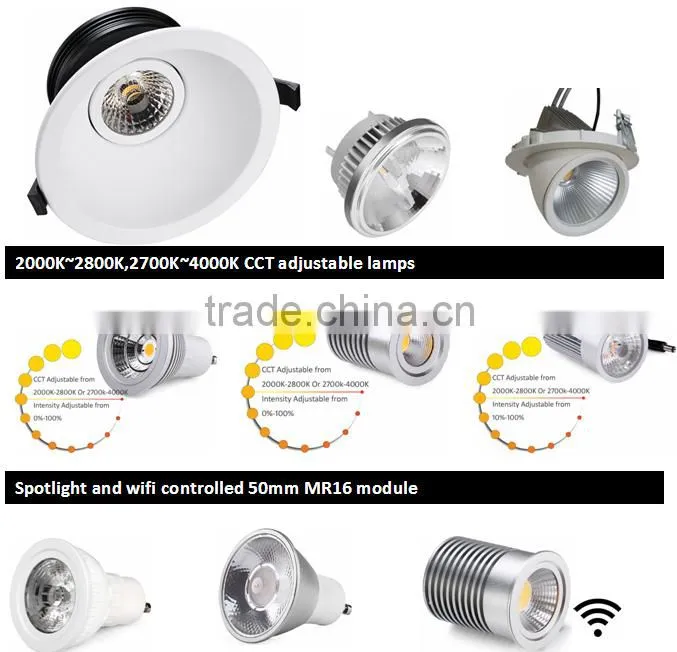

Also we have other product for your choice:





Packaging & Shipping

 Package:

1. Every led downlight is separately packed with neutral box.
2. Laser printing is available.
3. Standard export carton.



Shipping:

3-5Working Days for Sample, 5-15Working Days for Bulk Order

Our Services

 1. 3/5years warranty.

2. provide competitive price since we have stable cooperation with our material supplier and with charging reasonable profit.

3. With great R&D team, new products will be launched every season.

4. Quick and high efficiency after-sale team, your complaints will be solved with 24 hours by professional team.

5. We supply OEM and ODM service, and only focus on high quality products.

6. Our main products are led spotlight,led module and led downlight.

7. Payment terms: T/T, 30% deposit T/T, western union, paypal.

8. Economic and fast delivery: Shipping by sea, air, railway. UPS, FedEX, DHL, TNT,  ARAMEX etc.

Company Information

 1,We are a Led Factory manufacturing led spotlight and downlight with high quality control, Best production capacity, Best service and price.

2,We guarantee  100% QC inspection and 100% aging test before shippment for good quality.

3,We will respond any your requirement in 24 hours and provide best after-sale service.



a,SGS certified factory;

b,Own Patent designed cob downlight;

c,With all necessary certificates/Test Report like CE,Rohs,Erp,IES etc.

FAQ

 Q1: What's the warranty for your led lamps?

A1: We provide 2years for the lamps with built-in driver,and 3/5 years for the lamps with external driver.



Q2: What are your drivers brand?

A2: Most of them got TUV,UL etc with high quality.



Q3: What is your led chips? CRI? CCT?

A3: Our chips are mainly from Sharp,CREE and Citizen etc,could do 2300~6500K,CRI80+ and CRI90+ are optional.



Q4: What kind of dimmable lamps do you have?

A4: We could do 0-100% dimming for gu10 spotlight,and 10~100% dimming for downlight with external driver.



Q5: Do you have extram wram lamps?

A5: Yes, we have, and we could do 2300K for our spotlight.Also we have 2000~3000K adjustable lamps.



Q6: Do you have OEM or ODM experience?

A6: Yes, we focusd on led lighting since 2010 and have lots of professional cases. we have ability and will be happy to be your official supplier.



Q7: Where is your main market?

A7: Our market mainly in EU.



Q8: How should I contact you to start business?

A8: You can send enquiry to us, pls click the button "Send" now with your questions.



Q9: Can we chat on skype?

A9: Yes, of course,at your convenient time. My Skype: bruce_lkt
