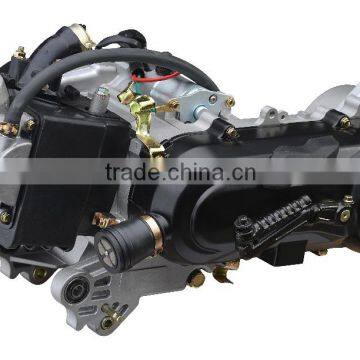

1P39QMB-B 50cc 4 Stroke Scooter Engine

Name: 1P39QMB-B 50cc 4 Stroke Scooter Engine
Brand: JINLANG
SKU: 109451379
Availability: InStock

US$ 150.00 - 150.00 MOQ: 50 Cartons

Key Specifications

Stroke:

4 Stroke

Cold Style:

Air-Cooled

Start:

Electric / Kick

Zhejiang Huxian Machinery Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Stroke 4 Stroke

Cold Style Air-Cooled

Start Electric / Kick

Cylinder NO. 1 Cylinder

Ignition Method CDI

Displacement (ml) 49cc

Place of Origin China

Brand Name JINLANG

Model Number 1P39QMB

Product Description

scooter engine 50cc, 80cc, 100cc, 125cc, 150cc, 200cc, 250cc and 300cc

parameters
50cc 4 stroke
Model No.				1P39QMB-B
Type				Single cylinder,4-storke,forced air-cooled
Bore				39mm
Stroke				41.5mm
Displacement				49.6ml
Compression ratio				10.5:1
Max power				2.2kw/7500rpm
Max torque				2.8N.m/6000rpm
Min idling speed				2000r/min
Shaft length				195mm/130mm
Case Length(OPTIONAL)				30mm
80cc 4 stroke
Model No.				1P47QMB-B
Type				Single cylinder,4-storke,forced air-cooled
Bore				47mm
Stroke				41.5mm
Displacement				72ml
Compression ratio				10.3:1
Max power				3.05kw/8000rpm
Max torque				4.2N.m/6500rpm
Min idling speed				2000r/min
Shaft length				195mm/130mm
Case Length(OPTIONAL)				30mm
parameters
50cc 4 stroke POPO engine
Model No.				1P39QMB-3
Type				Single cylinder,4-storke,forced air-cooled
Bore				39mm
Stroke				41.5mm
Displacement				49.6ml
Compression ratio				10.5:1
Max power				2.2kw/7500rpm
Max torque				2.8N.m/6000rpm
Min idling speed				2000r/min
Shaft length				195mm/130mm
Case Length(OPTIONAL)				30mm
80cc 4 stroke POPO engine
Model No.				1P47QMB-3
Type				Single cylinder,4-storke,forced air-cooled
Bore				47mm
Stroke				41.5mm
Displacement				72ml
Compression ratio				10.3:1
Max power				3.05kw/8000rpm
Max torque				4.2N.m/6500rpm
Min idling speed				2000r/min
Shaft length				195mm/130mm
Case Length(OPTIONAL)				30mm
