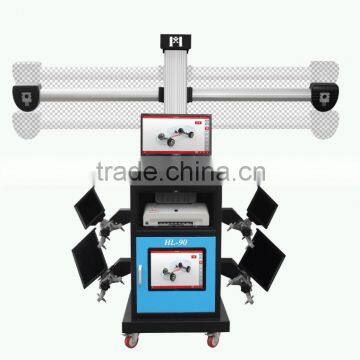

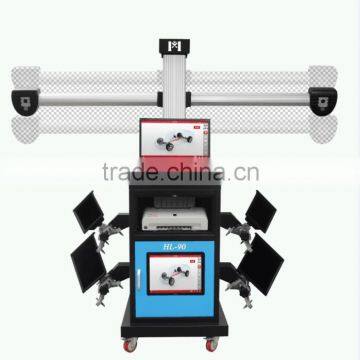

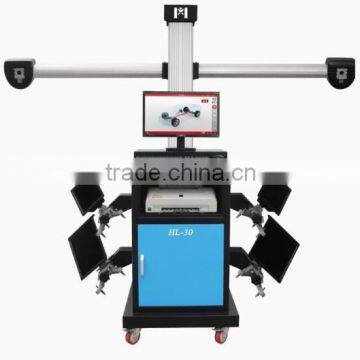

car wheel position proofread machine and car wheel alignment for garage

The main features the best wheel aligment:

 1) Four high resolution cameras respectively photographing four targets along with closer distance between    cameras and targets offer clearer photographs and more precise measurement.

 2) Apply high strength plastic target, which is lighter, thiner and stronger.

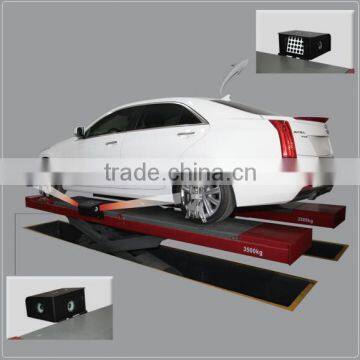

 3) The measurement data is more precise with camera installed onto the car lift and short shooting distance.

 4) This machine is made for saving the operation space.

Technical Details

Software Display

                                                                 Original vehicle database:

Owning more than 20,000 original vehicle databases from different region around the world.

 Example Display

3D animation auxiliary adjustment function; simple 3D video demo are available to help the operator to adjust the wheel.

 Data Result Show

1) While previewing the data, rear wheel measurement result can be displayed in one interface.

2) Two dimensional dynamic display can be switched to different interface according to the customers'        requirement.

Other features you may perfer them:

1) Caster & S.A.I measurement: sync measure caster, included angle and S.A.I, which helps the operator to accurately analyze the status of vehicle's suspension system and assists four wheels' adjustment.

2) Body size measurement: detect the vehicle wheelbase, wheel track data etc., these can help customers to understand the real condition of the vehicle chassis.

3) Wheel rolling radius measurement: to help the operator accurately examine the condition of the tire pressure and tire wear.

4) Jack-up adjustment function: it is convenient for operator to jack up vehicles and adjust camber.

Packaging & Delivery

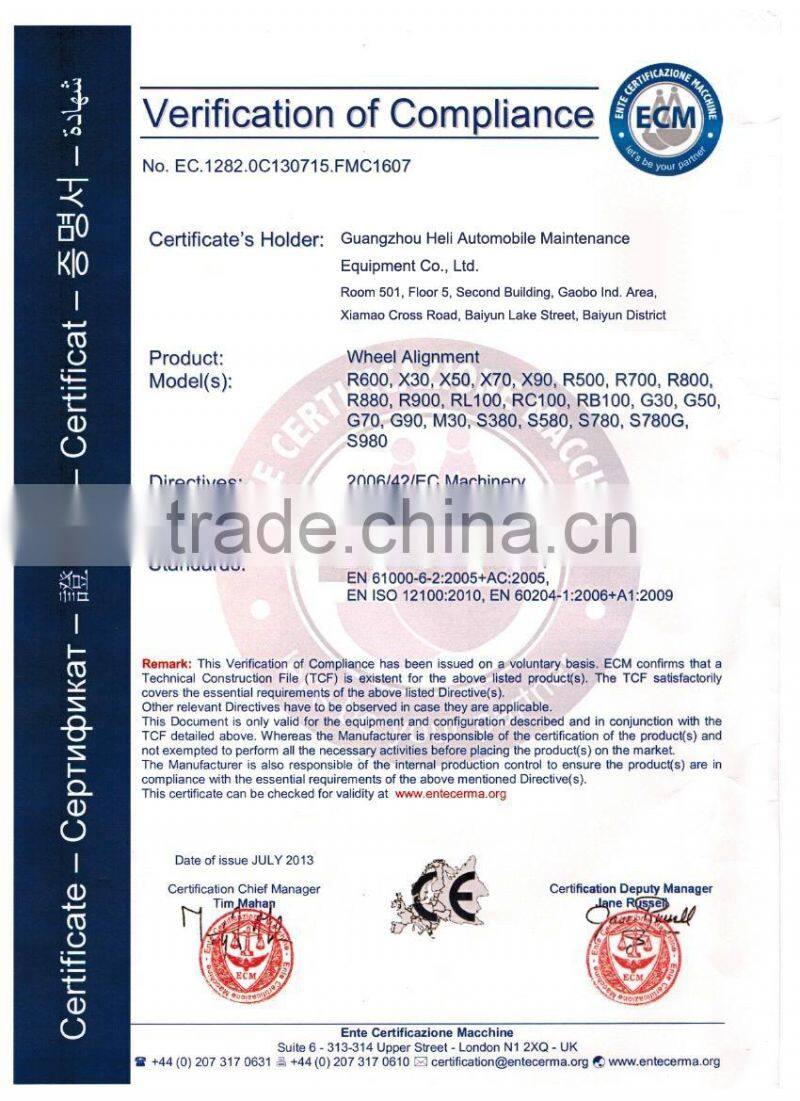

 The CE certification of our 3D wheel aligment:
