Home > Lights & Lighting > LED Interior Lighting > LED Down Light > Promotional Price Cool White 6000-7000K 9W Gimbal LED Downlight for Showcase

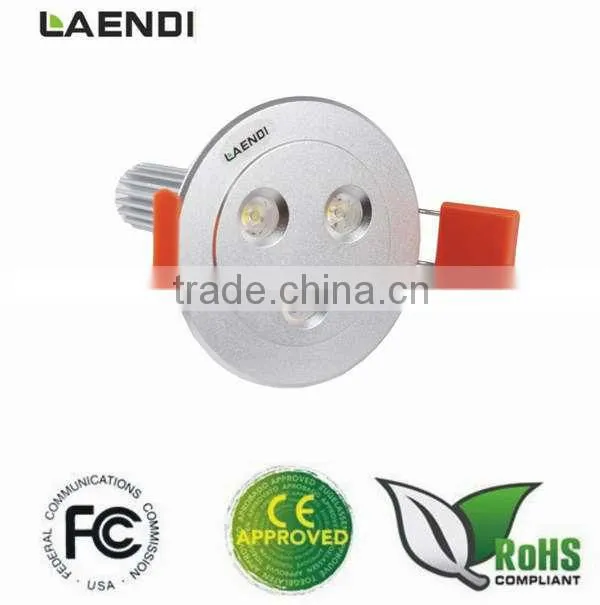

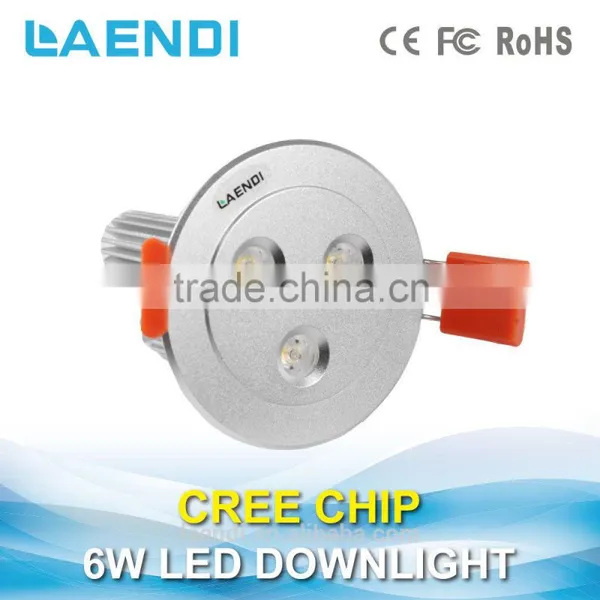

Promotional Price Cool White 6000-7000K 9W Gimbal LED Downlight for Showcase

Name: Promotional Price Cool White 6000-7000K 9W Gimbal LED Downlight for Showcase
Brand: LAENDI
SKU: 109440901
Availability: InStock

Promotional Price Cool White 6000-7000K 9W Gimbal LED Downlight for Showcase thumbnail-1

Promotional Price Cool White 6000-7000K 9W Gimbal LED Downlight for Showcase thumbnail-2

Promotional Price Cool White 6000-7000K 9W Gimbal LED Downlight for Showcase photo-1

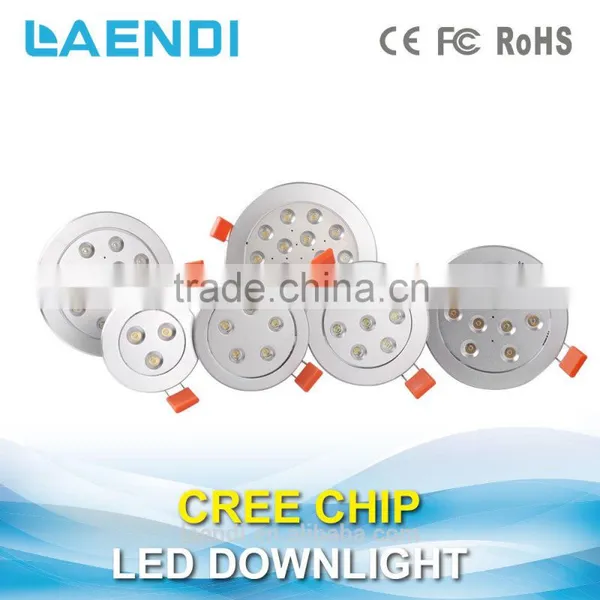

Promotional Price Cool White 6000-7000K 9W Gimbal LED Downlight for Showcase photo-2

US$ 1 - 25 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

cree LED

Warranty(Years):

Input Voltage(V):

220

Contact Supplier Request Quote Chat Now

Shenzhen Laendi Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source cree LED

Warranty(Years) 3

Input Voltage(V) 220

Lamp Power(W) 9

Lamp Luminous Flux(lm) 500

Lamp Luminous Efficiency(lm/w) 85

Color Temperature(CCT) Other, 2700-6500k

Working Temperature(℃) -20, 55

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating Other, ip20

Certification C-tick, CCC, CE, EMC, FCC, LVD

Model Number LDT-3X3W-RC

Place of Origin Guangdong, China

Brand Name LAENDI

C-TIC past 9w led downlight

General Administration of QualitySupervision,Inspectionand Quarantine of the People's Republic of China Aprroved

Fire Rated lamp on RD process . Coming this October at HongKong Lighting Fair .

1. Specifications of this downlight :

Item No.	LDT-3X1W-C	LDT-3X3W-C
Imput voltage	85-265VAC	85-265VAC
Diameter	*Dia 80H 52mm**	*Dia 80H 72mm**
Cut out	Dia 75mm	Dia 75mm
Actual Power	<3.5w	<7.5W
No of LEDS	3pcs @350ma	3pcs @ 700ma
Comparable to	25w halogen	35W halogen Lamp
Chips Brand	CREE USA ORIGIN	Cree USA Origin
Bean Angle	30 45 60	30 45 60
CRI	>82Ra	>82Ra
Lumens	Warm white 180LM	Warm white 385LM
	Day white 220LM	Day white 450LM
	Cold white 255LM	Cold white 480LM
IP Rate	IP20	IP20
Guarantee	3 Years	3 Years
Weight	0.42kg/pc with driver	0.42kg/pc with driver
Packing info	24pcs/ctn	24pcs/ctn

2. Service of this led downlight :

We supply the 3 years warranty on this Downlight & ensure the LED chip is 100% origin of Cree USA Factory .

Dimmable function available with TRIAC Version .

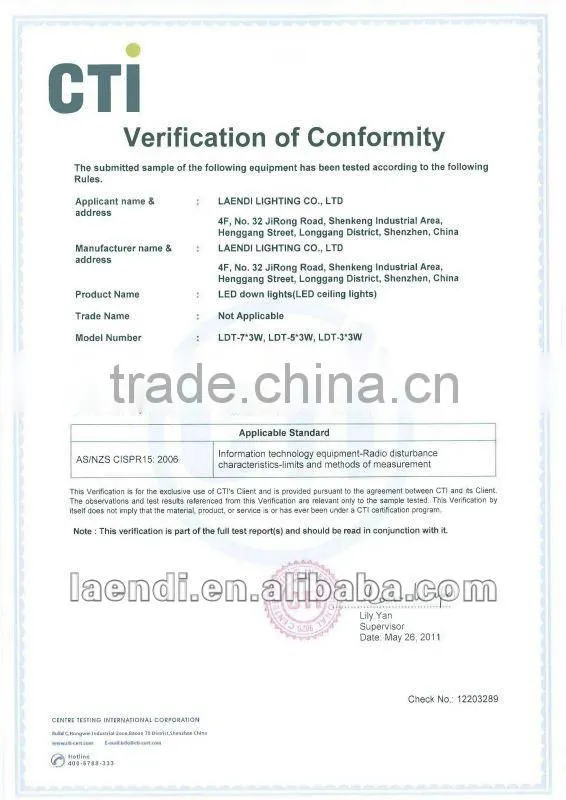

CE/C-TIC certificated

3-60w power range for option with could be max 4000lm + for 6meters height ceiling application

3. Features :

Comparing the the common downlights in the market . Here is the advantages we have :

	Laendi downlight	common downlight
LED chip	Cree use origin XP-G/E , 110lm/w CRI>82ra	Edison / Epistar LED 100lm/w CRI 70-75ra
Aluminum	Aviation level 2.3+w/m-k	standard 6063 1.9-2.0w/m-k
Cable	2 layer 2 core	1 layer 2 core

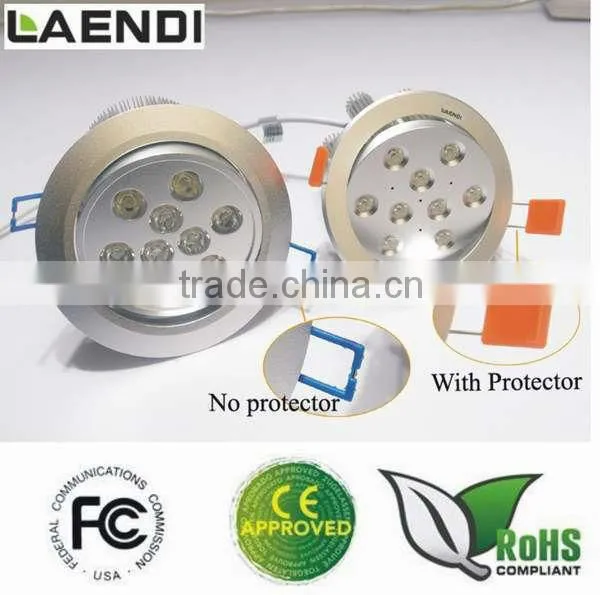

Gimbal protector	Equip	Non Equip
Pull out stopper	Equip	Non Equip
Install Clause	Equip	Non Equip

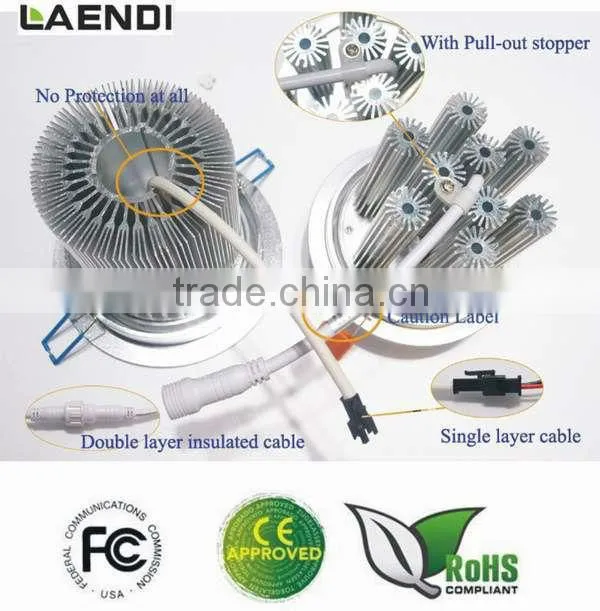

4. Advantages of this downlight

Pls check the pictures below

5. Illumination comparison :

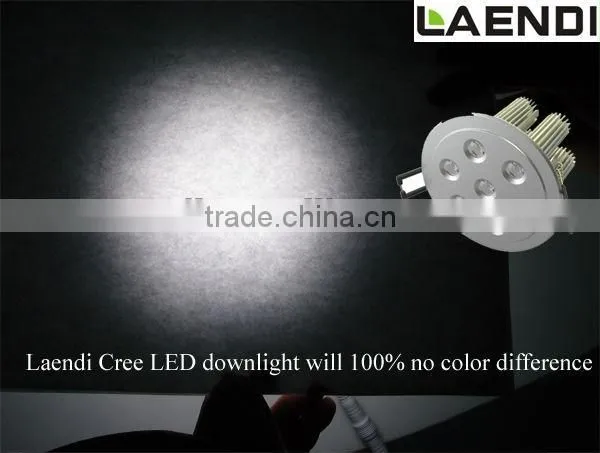

1. Laendi Cree downlight can provide the output in either Uniform or Concertrated version for option . Without any color difference .

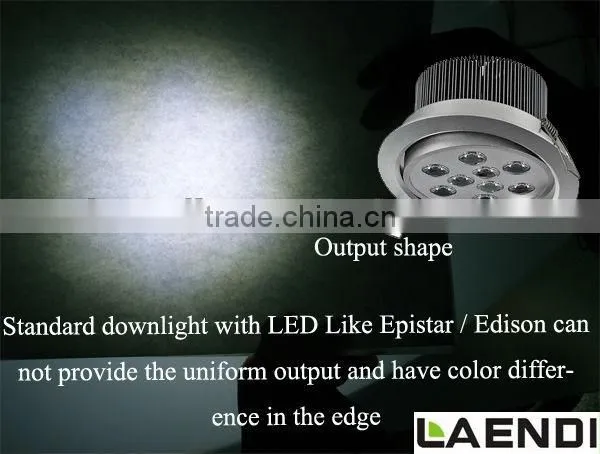

2. While the downlights with LED of Edison / Epistar . Will surely cause Inregular output shape and the color difference in the edge .

Pls check the Two pictures below for details

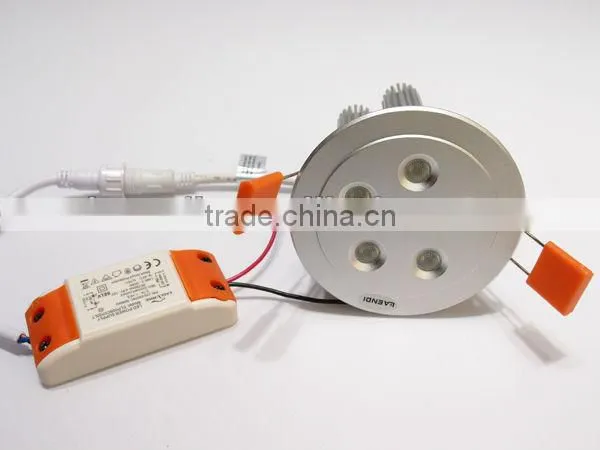

6. Accessary Contain of this 9w led downlight :

Every downlight of Laendi light will provide 1pc LED downlight + 1pc C-TIC/CE past LED Powersupply

For a convenient installation . It's available for us to connect the lamp with the SAA/CE plug .

It is also available for the lamp body to be Silver / White / Black color .

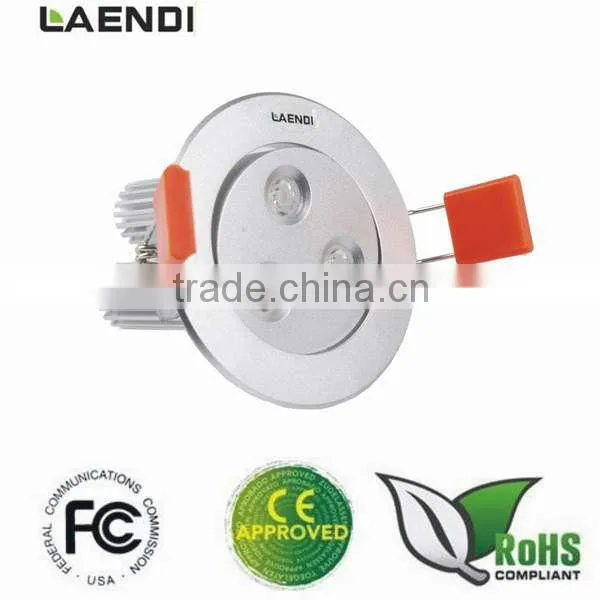

7. Design :

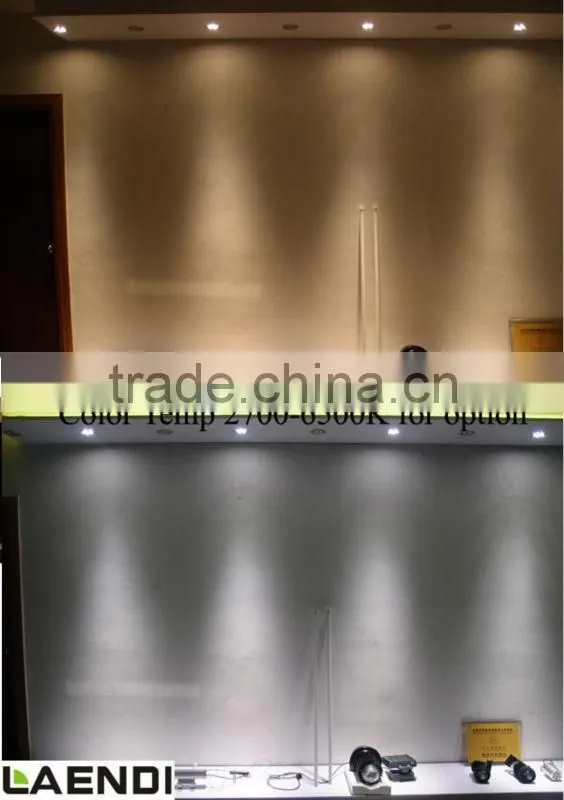

8. Application and Light Pattern :

Accent lighting,ArchitecturalBack lighting,Cabinet and under counter lighting,Ceiling /Wall Coves,Display Cases,Exhibition stands and panels,Light boxes,Recess lighting,Shelf Lighting Step Lighting ,Task lighting.

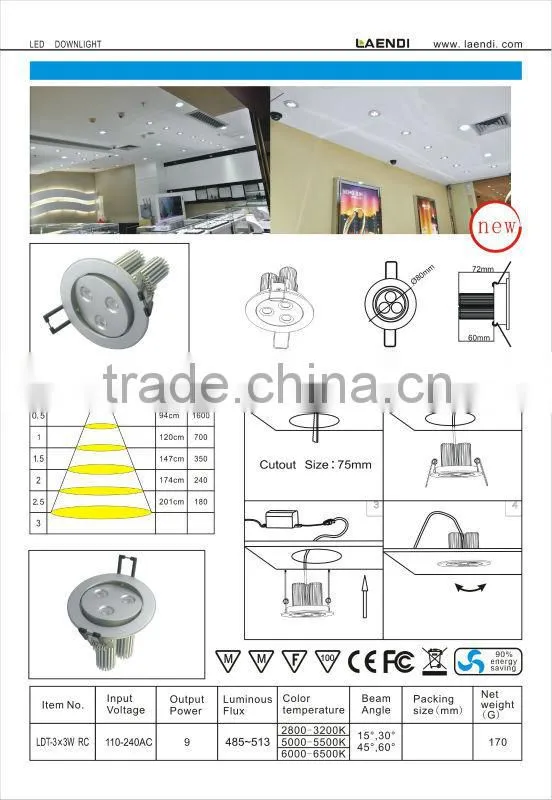

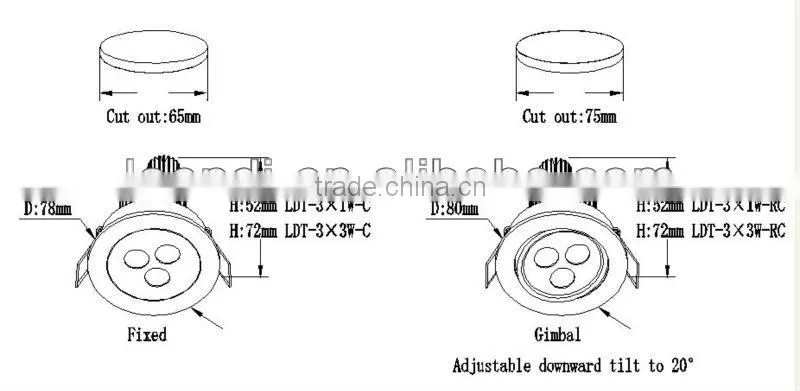

9. Dimensions:

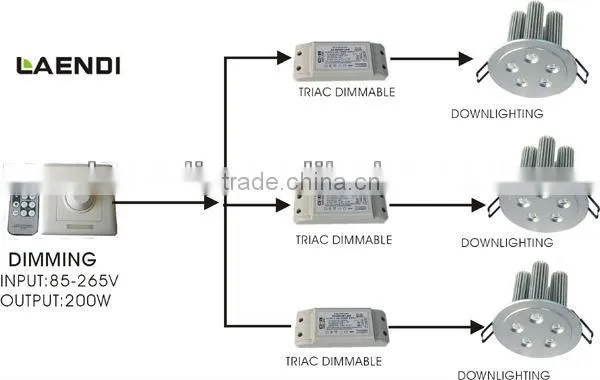

10. Dimmable function :

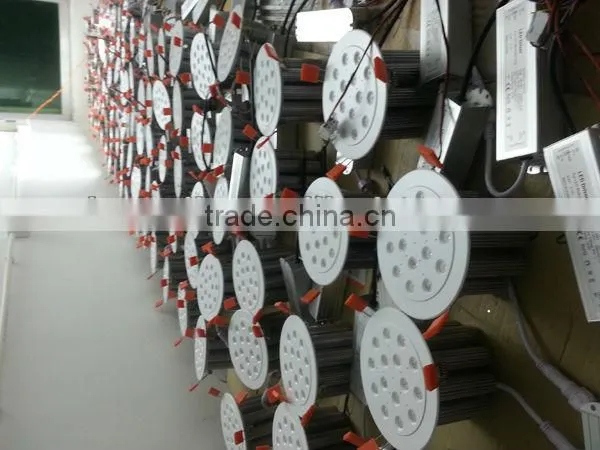

11. Aging and production :

12. Installation :

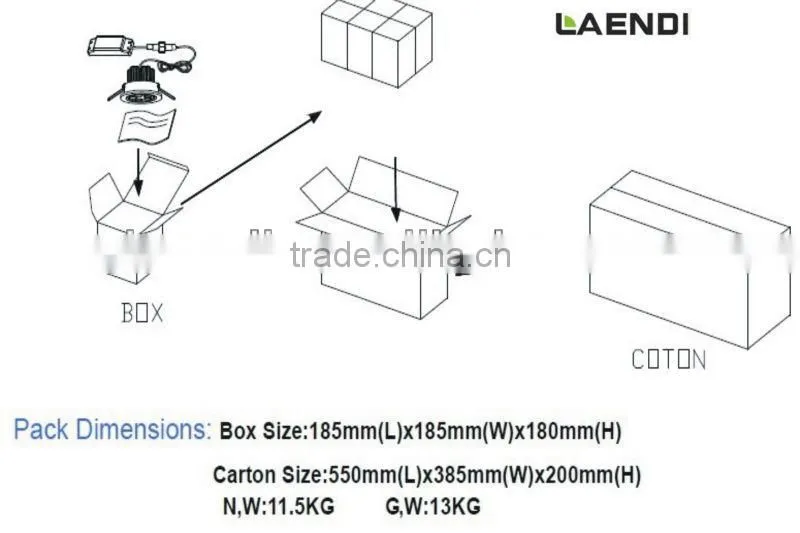

13.Packing :

14. Series Information :

The Cree LED downlight series is a hotsale downlight series . We available to provide the watt from 3-60w for 2.5-6Meter height ceiling lighting illumination led downlight . Here is a brief intro for the spec :

Item	Volt	power	Chips	Lumens	Size
LDT-3X3W-C	AC100-240V	9W	CREE/ OSRAM	383-456LM	*D78H72mm Hole size:65mm**
LDT-5X3W-C		15W		638-760LM	*D98H72mm Hole size:90mm**
LDT-7X3W-C		21W		893-1064LM	*D100H72mm Hole size:90mm**
LDT-9X3W-C		27W		1040-1370LM	*D124H92mm Hole size:105mm**
LDT-12X3W-C		36W		1531-1824LM	*D140H92mm Hole size:115mm**
LDT-15X3W-C		45W		1914-2280LM	*D150H92mm Hole size:125mm**
LDT-20X3W-C		60W		2850-3156LM	*D170H112mm Hole size:145mm**
