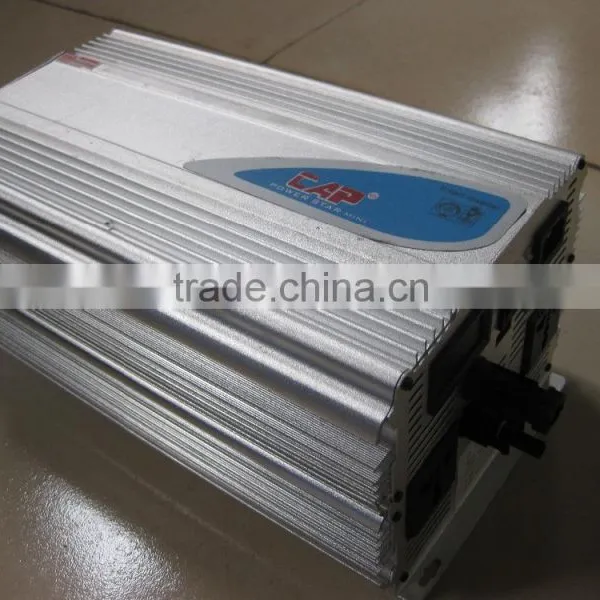

24v 300w pure sine wave hybrid inverter and conrtoller
- 10000 Piece / Pieces per Month
- Guangzhou
- Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CAP | Model Number: | LMI-series |
Output Power: | Other, 500W, 100-6000W | Output Type: | Single | Size: | 23.8*12.6*9.5mm |
Weight: | 2.6kg, 49kg | Input Voltage: | 12V | Output Voltage: | 220V±3% |
Type: | Other, DC/AC Inverters, DC/AC Inverters | Output Frequency: | 50Hz | Output Current: | 220v, 60A |
Product Description
24v300w sine wave inverter & controller hybird with controller
1.Combined charger nverter,
2 LED display operation status
3.safety management system
4. high frequency hybrid controller inverter 12v 24v 48 v DC Appliance
all kinds of home appliance,office equioment,solar power system,
and other equipments which use single phase power.
Protection against:
1. Over load,over temperature,over charging,low battery
2. Reverse connection(optional by hard connector),blackouts
Features:
1.this power inventer represents the most advanced DC to DA convesion technology.it come with a number of outstanding features,such as:
1.pure sine wave output (THD<3%@linear load).
2.an intelligent solar charge controller and battery management system.
3.high frequency technology light and small . insulated design.
4.input &output completely insulated design.
5.high efficiency:max 90% Capable of drivng inductive & capacitive loads from the start moment
6.LED indicators display all operation status
| LMI-1 | LMI-3 | LMI-5 | LMI-10 | LMI-15 | LMI-20 | LMI-30 | LMI-40 | LMI-50 | LMI-60 | |||||||||||
Power Rating (W) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | |||||||||||
Battery Voltage (V) | 12/24 | 12/24/48 | 24/48 | ||||||||||||||||||
Solar Panel | Maximum Voltage (V) | 25/50 | 50 | 100 | 100 | ||||||||||||||||
Solar Panel | Maximum Current (A) | 20 | 40 | 60 | 70ss | ||||||||||||||||
Solar Panel | MPPT Function | user option | |||||||||||||||||||
Inverter Output | Voltage (V) | 220±3% | |||||||||||||||||||
Inverter Output | Frequency (Hz) | 50±0.5 | |||||||||||||||||||
Inverter Output | Wave Form | pure sine wave | |||||||||||||||||||
Inverter Output | THD (%) | ≤ 3% for linear load,<5% for nonlinear load , all of them in full load condition | |||||||||||||||||||
Inverter Output | Dynamic Response Time (ms) | <10 | |||||||||||||||||||
Inverter Output | Efficiency (%) | Max 90% | |||||||||||||||||||
Inverter Output | Overload Capacity | overload 120% or short circuit automatically shut off the inverter, 1 second after automatic restart the inverter | |||||||||||||||||||
Line complementary Input | 220V/50Hz/60Hz | ||||||||||||||||||||
Line complementary output | DC priority design ,when battery voltage is too low, the inverter output is turned by line bypass output to load User option | ||||||||||||||||||||
DC Output | USB Power Supply | User option | |||||||||||||||||||
DC Output | 12V DC Power Supply | ||||||||||||||||||||
Operating Temperature(°C) | -40 — +50 | ||||||||||||||||||||
Type of Cooling | temperature control forced ventilation | ||||||||||||||||||||
Relative Humidity (%) | 0-90% non-condensate | ||||||||||||||||||||
Indication LED Indicator | solar panel (blue), battery normal (yellow , when battery capacity left 10% ,the yellow LED will flash ), Battery failure(red), power start (green/red ,if you use manned , the green LED light ,if you use atomic ,the red LED light, inverter normal (yellow), line normal (green) | ||||||||||||||||||||
Protection Function | output overload and short circuit, battery low voltage and over charging protection, solar panel Polarity reverse connect protection, overheating protection, lightning protection | ||||||||||||||||||||
Cooling | By automatic control fan cooling | ||||||||||||||||||||
Physical Size (LW×H)(cm) | 14*9*3 | 23.8*12.6*9.5 | 45*25*11.3 | 63*25*13.8 | |||||||||||||||||
Net Weight (Kg) | 0.3 | 2.3 | 2.6 | 2.8 | 4.5 | 4.9 | 6.8 | 7.5 | 8.5 | 9 |
Any questions pls feel free to contact me.
Skype:capsolar4
