Home > Lights & Lighting > LED Interior Lighting > LED Down Light > High CRI Warm White 2700k-3200k 16W Gimbal Led Downlight for Commercial Lighting

High CRI Warm White 2700k-3200k 16W Gimbal Led Downlight for Commercial Lighting

Name: High CRI Warm White 2700k-3200k 16W Gimbal Led Downlight for Commercial Lighting
Brand: LAENDI
SKU: 109440475

High CRI Warm White 2700k-3200k 16W Gimbal Led Downlight for Commercial Lighting thumbnail-1

High CRI Warm White 2700k-3200k 16W Gimbal Led Downlight for Commercial Lighting photo-1

US$ 5 - 25 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

cree LED

Warranty(Years):

Input Voltage(V):

220

Contact Supplier Request Quote Chat Now

Shenzhen Laendi Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source cree LED

Warranty(Years) 3

Input Voltage(V) 220

Lamp Power(W) 15

Lamp Luminous Flux(lm) 900

Lamp Luminous Efficiency(lm/w) 85

Color Temperature(CCT) Other, 2700-6500k

Working Temperature(℃) -20, 55

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating Other, ip20

Certification C-tick, CE, EMC, FCC, LVD

Model Number ldt-5*3w-rc

Place of Origin Guangdong, China

Brand Name LAENDI

C-TIC hotel led downlight

General Administration of QualitySupervision,Inspectionand Quarantine of the People's Republic of China Aprroved

Laendi company now sourcing proper company to expend the distribution range in Australia . Can provide the C-TIC certificaton

1. Specifications of this C-TIC hotel led downlight :

Item No.	LDT-5X1W-RC	LDT-5X3W-RC
Imput voltage	85-265VAC	85-265VAC
Diameter	*Dia 100H 52mm**	*Dia 100H 72mm**
Cut out	Dia 95mm	Dia 95mm
Actual Power	5w	15w
No of LEDS	3pcs @350ma	3pcs @ 700ma
Comparable to	25w halogen	35W halogen Lamp
Chips Brand	CREE USA ORIGIN	Cree USA Origin
Bean Angle	30 45 60	30 45 60
CRI	>82Ra	>82Ra
Lumens	Warm white 380LM	Warm white 638LM
	Day white 400LM	Day white 700LM
	Cold white 480LM	Cold white 760LM
IP Rate	IP20	IP20
Guarantee	3 Years	3 Years
Weight	0.42kg/pc with driver	0.42kg/pc with driver
Packing info	24pcs/ctn	24pcs/ctn

2. Service of this cree led down light :

We supply the 3 years warranty on this Downlight & ensure the LED chip is 100% origin of Cree USA Factory .

Dimmable function available with TRIAC Version .

CE/C-TIC certificated

3-60w power range for option with could be max 4000lm + for 6meters height ceiling application

3. Features of led down light :

Comparing the the common downlights in the market . Here is the advantages we have :

	Laendi downlight	common downlight
LED chip	Cree use origin XP-G/E , 110lm/w CRI>82ra	Edison / Epistar LED 100lm/w CRI 70-75ra
Aluminum	Aviation level 2.3+w/m-k	standard 6063 1.9-2.0w/m-k
Cable	2 layer 2 core	1 layer 2 core
Gimbal protector	Equip	Non Equip
Pull out stopper	Equip	Non Equip
Install Clause	Equip	Non Equip

4. Advantages of this down light

Pls check the pictures below

5. Illumination comparison :

1. Laendi Cree downlight can provide the output in either Uniform or Concertrated version for option . Without any color difference .

2. While the downlights with LED of Edison / Epistar . Will surely cause Inregular output shape and the color difference in the edge .

Pls check the Two pictures below for details

6. Accessary Contain of cree led down light :

Every downlight of Laendi light will provide 1pc LED downlight + 1pc C-TIC/CE past LED Powersupply

For a convenient installation . It's available for us to connect the lamp with the SAA/CE plug .

It is also available for the lamp body to be Silver / White / Black color .

7. Design :

8. Application and Light Pattern :

Accent lighting,ArchitecturalBack lighting,Cabinet and under counter lighting,Ceiling /Wall Coves,Display Cases,Exhibition stands and panels,Light boxes,Recess lighting,Shelf Lighting Step Lighting ,Task lighting.

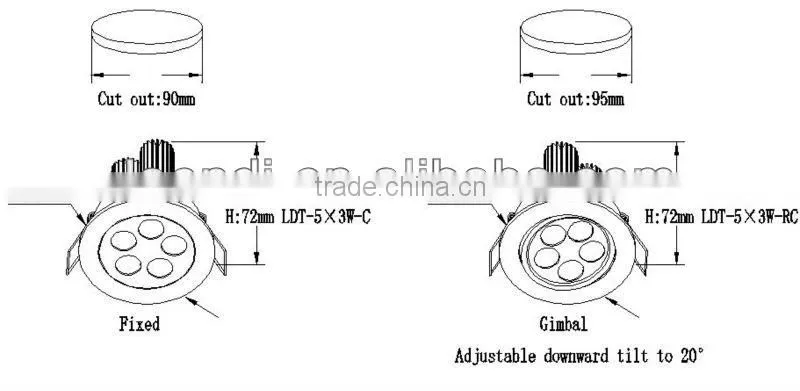

9. Dimensions:

10. Dimmable function :

11. Aging and production :

12. Installation :

13.Packing :

14. Series Information :

The Cree LED downlight series is a hotsale downlight series . We available to provide the watt from 3-60w for 2.5-6Meter height ceiling lighting illumination led downlight . Here is a brief intro for the spec :

Item	Volt	power	Chips	Lumens	Size
LDT-3X3W-C	AC100-240V	9W	CREE/ OSRAM	383-456LM	*D78H72mm Hole size:65mm**
LDT-5X3W-C		15W		638-760LM	*D98H72mm Hole size:90mm**
LDT-7X3W-C		21W		893-1064LM	*D100H72mm Hole size:90mm**
LDT-9X3W-C		27W		1040-1370LM	*D124H92mm Hole size:105mm**
LDT-12X3W-C		36W		1531-1824LM	*D140H92mm Hole size:115mm**
LDT-15X3W-C		45W		1914-2280LM	*D150H92mm Hole size:125mm**
LDT-20X3W-C		60W		2850-3156LM	*D170H112mm Hole size:145mm**
