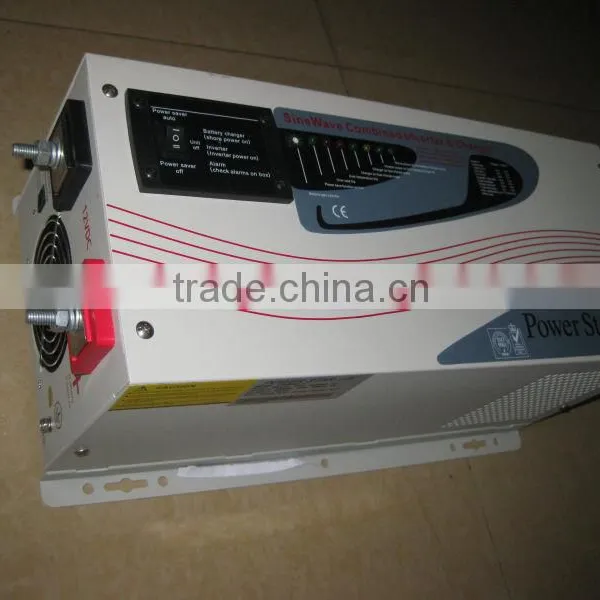

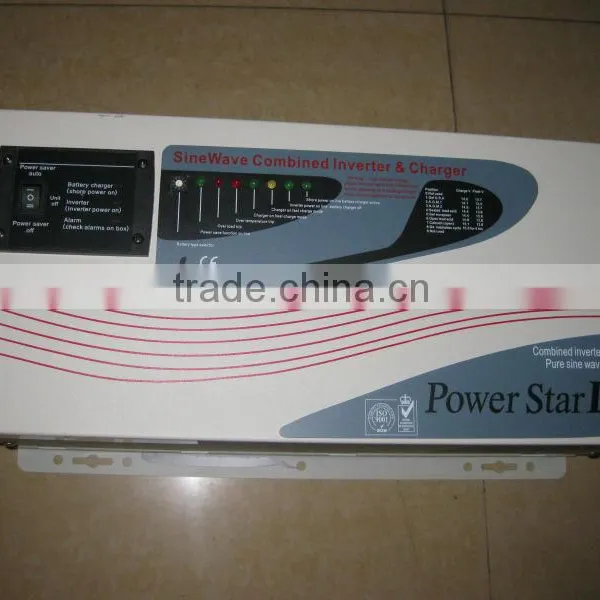

Pure Sine Wave Low Frequency Inverter 12v 220v 5000w With Battery Charger for Solar System
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CAP low frequency solar inverter
Model Number:
LW5000 low frequency solar inverter
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproof Solar Power Inverter 3000w With Battery Charger for Soalr SystemNegotiableMOQ: 1 Piece -
220v 1000w Pure Sine Wave Solar Power Inverter With Battery Charge for China SupplierNegotiableMOQ: 1 Piece
-
1000w off Grid Pure Sine Wave Solar Power Inverter Buit in Mppt Controller for China SupplierNegotiableMOQ: 1 Piece
-
dc ac Solar Power Inverter With Battery Charger for Solar Energy System 350w 600w 1000w 1500wNegotiableMOQ: 1 Piece
-
China Pure Sine Wave Solar Power Inverter 350w 600w 1000w 1500w With City Power ChargerNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CAP low frequency solar inverter
Model Number
LW5000 low frequency solar inverter
Output Power
Other, 5kw
Output Type
Single
Size
218X179X598
Weight
60kg
Input Voltage
12V
Output Voltage
220V
Type
DC/AC Inverters
Output Frequency
50/60 Hz
Output Current
60A
pure sine wave low frequency inverter 12v 220v 5000w with battery charger for solar system
Off-Grid Inverter:
Off-grid inverter is a special inverter that specialized in supporting solar and wind power system. It has the following characteristics:
1.High transfor efficiency, highest can reach to 95%.
2.Output ture sine wave
3.Protection function completely, output short-circuit protection( take load short-circuit), overload protaction, DC overload or under-voltage protection.
4.Strong ability of resist concussion, can loading all kinds of electric apparatus and industry equipments. Such as: air condition, refrigerator, television, fan, washer, fill water electric motor, tortile gate, and etc.
5.The service life is long, can reach a decade.
| Model No. | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input | ||||||
| Phase & waveform | Single phase & Pure Sine Wave | |||||
| Voltage | 120VAC/230VAC | |||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | |||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | |||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | |||||
| Line high Transfer | 135V±4%/253±4% | |||||
| Line high Return | 127V±4%/243±4% | |||||
| Frequency | 50Hz or 60Hz (auto sensing) | |||||
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | |||||
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | |||||
| Output | ||||||
| Phase & waveform | Single phase & Pure Sine Wave(bypass mode sync to input) | |||||
| Voltage | 120/220/230/240VAC(bypass mode sync to input) | |||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | |||||
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | |||||
| Peak Power | 3 times of rating power | |||||
| Short Circuit Protection | Yes,shutdown after 10ms | |||||
| Power Factor | 0.9-1.0 | |||||
| DC Input | ||||||
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | |||||
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | |||||
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | |||||
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | |||||
| Max Charging Current | 35A/70A | |||||
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | |||||
| Transfer Efficiency | ||||||
| Line Mode | more than 95% | |||||
| Battery Mode | more than 88% | |||||
| power saver | Available when the load is less than 25 Watts | |||||

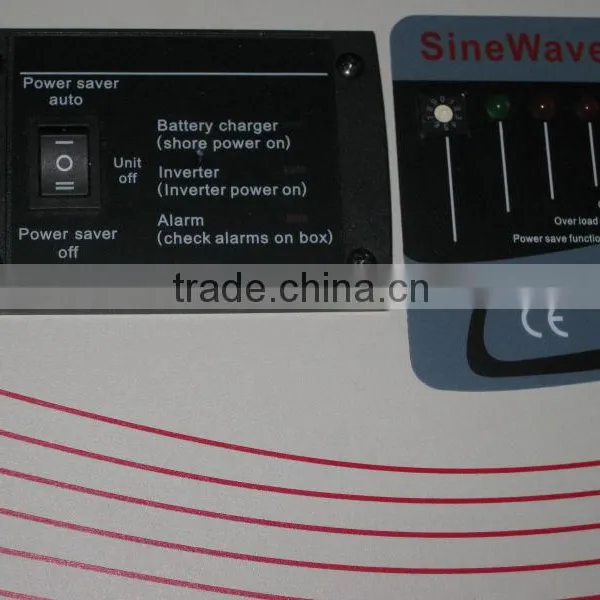

| Indicators | ||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode | |||||
| (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged | ||||||
| (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded | ||||||
| shutdown(red lighting),LED7 Saving Mode(green lighting) | ||||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | |||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is | |||||
| turning the inverter off. | ||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105°C and shutdown after 30 seconds. | |||||
| Protections | low battery,over charging,over temp,over load | |||||
| Communications | RS-232/USB(custom-made) | |||||
| Enviromental | ||||||
| Operating Environment | 0-40°C,0-90%RH(non-condensing) | |||||
| Audible Noise | less than 60dB | |||||
| Physical | ||||||
| Net Weight(KG) | 20 | 25 | 32 | 48 | 60 | 48 |
| Dimension,D X W X H(mm) | 218X179X442 | 218X179X598 | ||||
*********************************************************************************
