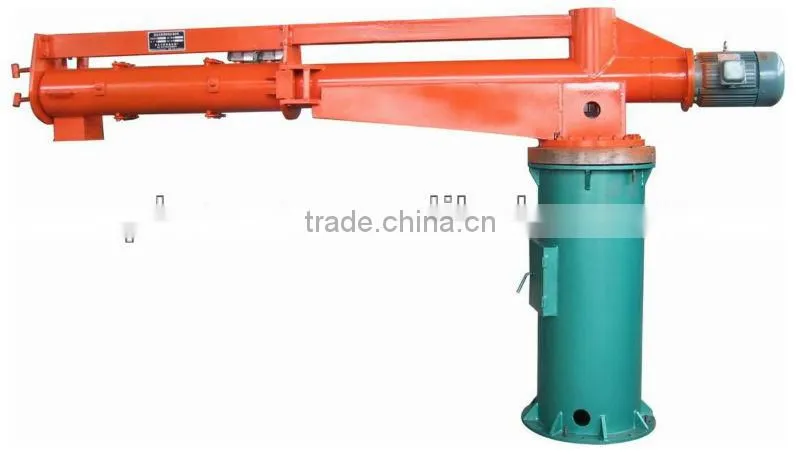

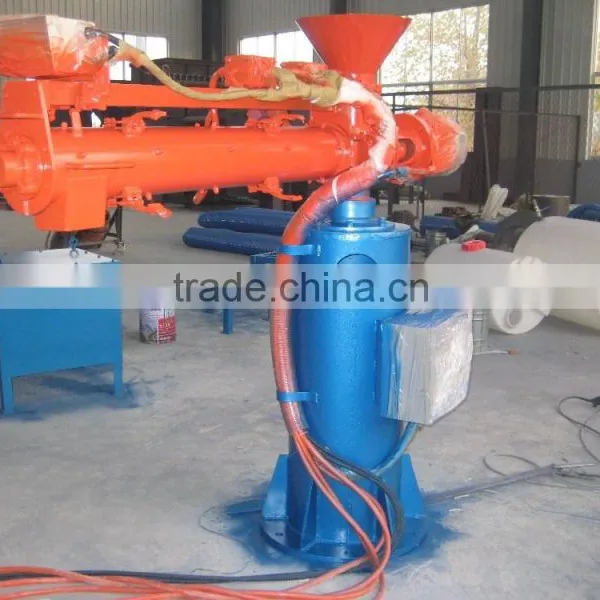

Movable Resin Sand Mixer
S24 single resin sand mixer series, is suitable for the selfhardening resin sand, silicate sand such as sand mixing, it has the
mixed sand quality is good, accurate quantitative, convenient cleaning and maintenance, flexible operation, etc.
Standard slewing mechanism, flexible operation.
All open sand stirring cage arm to facilitate the adjustment of the blade, cleaning and maintenance.
Long arm type sand stirring cage, increase operating area.
Configuration of old and new sand proportion regulator according to proportion of tuned to choose in advance, change the
old and the new sand plus heat.
PLC control system, restricting the protection, basic headless, loss of backfilling.
Configuration import technique of the binder quantitative pump, quantitative precision and reliable in use.
Single arm rotation has simple structure, less investment in equipment.
Technical parameter
| type | S242 | S243 | S245 | S248 | S2410 | S2412 | S2415 | S2420 |
| product capacity(t/h) | 2 | 3 | 5 | 8 | 10 | 12 | 15 | 20 |
| tank diameter(mm) | Φ175 | Φ175 | Φ203 | Φ219 | Φ219 | Φ225 | Φ225 | Φ250 |
| rotate speed(r/min) | 940 | 960 | 960 | 960 | 970 | 920 | 730 | |
| motor power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| turning radius(mm) | R850 | R1500 | R2000 | R2000 | R2000 | R2000 | R2000 | R2000 |
| resin pump flow(L/min) | 2.2 | 2.5 | 6 | 6.5 | 6 | 6 | 6 | 6 |
| curing agent pump flow(L/h) | 49 | 49 | 49 | 75 | 101 | 120 | 155 | 201 |
| binder quantitative accuracy | >±2% | |||||||
certification
About us
Qingdao Rovan Machinery Co.,Ltd was established in 2001, Asia's largest shot blasting machine supplier, do foreign trade
export for ten years,mainly produces shot blasting machine, shot peening equipment, resin sand equipment, sand
plant equipment, dust collector and conditioning equipment, V law molding line etc.
Technical advantages
With new product design,development,prototype,debug capabilities,provide users with the best technical solutions in the
shortest time,and delivery in high quality.In the shot blasting,sand casting,shape own professional technicist to leading
technology work.
Trade Terms:
1. Payment:
(1)Telegraphic Transfer(30% advance payment, balance before shipment)
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents)
(3)Letter of Credit: at sight
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
Our Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years,
competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is
usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products
to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you want to buy shot blasting machine, could you tell me the answers as follow?Please indicate the following details:
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference. Note:As we are an
integrated company, we sell our products direct to customers without any extra agent charges. Hence, our price is relatively
lower than others. Moreover, we are using the most advanced equipment and technology in order to produce high quality
and more professional.
