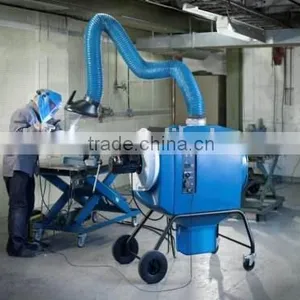

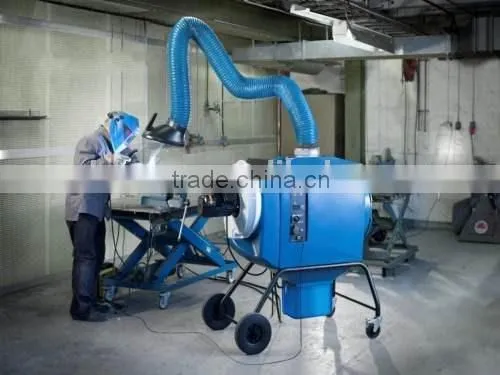

Portable Welding Fume Extractor
Product Description
Many mills and factories have very little ground space, so the portable type moving on ground is not welcome. In this case, you need the wall mounted type welding fume extractor.
It does not take up your limited ground space, meantime you do not need to invest lots of money and time to build and maintain one complex central extraction system. Just mount it on the wall or pole and attach it to electricity and compressed air (pulse jet type). Then it is ready for use.
The cost is most times lower than a central filtering system, and the suction of each hood can be assured easier then central system.
It is typically used for indoor welding fume extraction. It can also be used in other similar cases of fume and dust collection, such as stone dust.
Its built-in filtration cycle design can avoid indoor cold/heated air discharged outdoor as the central ventilation system, and save energy.
Two Filter Stage: pre-filtering stage, main filter of PTFE cartridge.
The flexible arm length is from 2m to 3m.
Specifications
Suitable for fume & dust purificationfor small parts welding within 70CM,metal polishing,turning,etc.
1, Operating Principle
1)Through the blower's gravity effect, wedling fumes/dust has been sucked to fume extractor's air inlet through universal dust hood, there's fire barrier in the air inlet, spark will be stopped by fire barrier once go through it;
2) Fume & gas will enter to dust setting chamber.Take use of gravity & upgoing airflow, big particles firstly fell to dust hopper, small particles fumes will becapture outside by cartridge;
3)Clean gas been filtrated by cartridge filter and flow into clean room,then exhuast outside from air outlet.When cartridge filter blocked, customer can removal it easily and reuse after cleaningsurface dust of cartridge filter by air compressor.
2. Portable Welding Workshop Inhaler Machine
1) Metal Plate case;
2) Universal exhaust arm;
3) Vacuum hose with high temperature resistant;
4) Dust hood(with air flow control valve);
5) Fire barrier;
6) Flame retardant HEPA cartridge;
7) Clean room;
8) Ash drawer;
9) Glass down;
10) Castors with brake;
11) Blower & Electronic Control Panel, etc.
3 Mini Industrial Workshop Welding Fume Extractor Product Feature Specialized Blower and Moto, take prevent overload circuit, which can prevent blower been burnout, high safety, stable work performance.Blower connected by high pressure hose,this canmake sure fume extractor always in good working condition. Filter cartridge use Americanimported material, long working life, it can filtrate dust particles less than 0.3μm, also have very good filtration effect towet & sticky dust.
Remarks: Welding fume extraction test under standard environment, if air flow 1500m3/h means the achieved air flow at the air outlet of the equipment . Filtration area 12m2, means the area of consumable filter.
