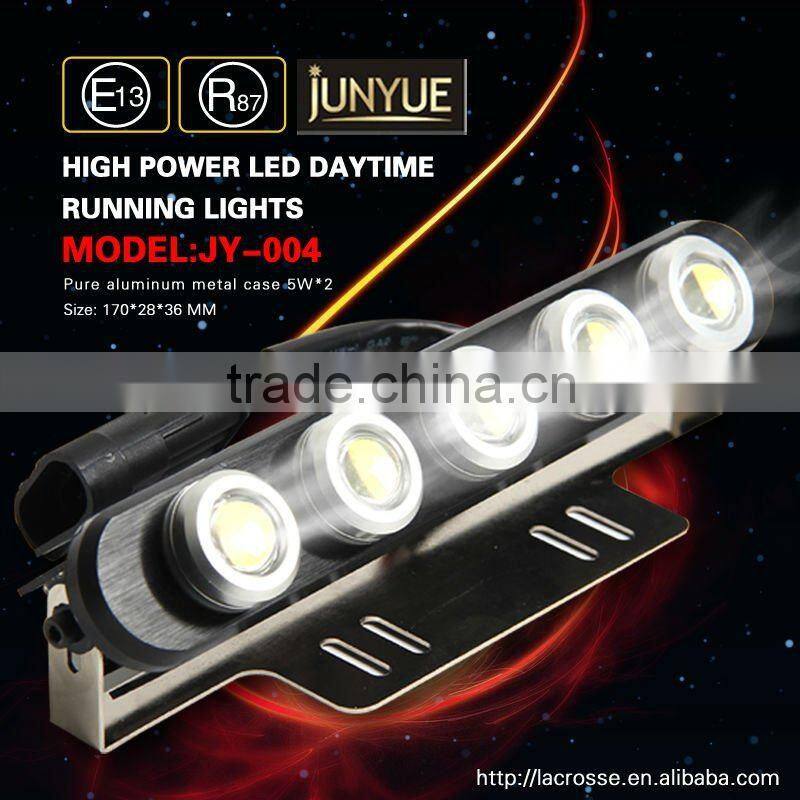

led day light car

led day light car

1 Piranha LED
2 5*1W Bigger Power LED X 2
3  E4 R87 certification
4  warranty for 1 year

Daytime Running lights(DRL),is an automotive lighting (For Automobile Safety) device on the front of a roadgoing motor vehicle,installed in pairs,automatically switched when the vehicle is moving forward,emitting white,yellow,or amber light to increase the conspicuity of the vehicle during daylight conditions.

  1.LED composition

Each LED light has the left light(L),right light(R),the two LED lights are placed in two car grille below the headlights.

  2.Lamp consists of :

Each lamp from the circuit board,reflective bowl and light shell,lamp,cable composition.

  3.Circuit Board

Each LED circuit board containing five high-power light-emitting diodes and complete electronic control components.

LED Daytime Running light parameter:

Voltage:DC 12V
Total Operating current:DC1.12A
Total Power consumption:13.44W
Dimmer Total current:DC 0.66A
Dimmer total power consumption:7.92W
Maximum working voltage:DC 24V last 1 min
Excess working voltage:DC 18V last 1 hour
Continous working time exceed 24hours
The maximum surface temperature below 60 centigrade
color temperature:6000-6500K
Lumens:70~90LM
