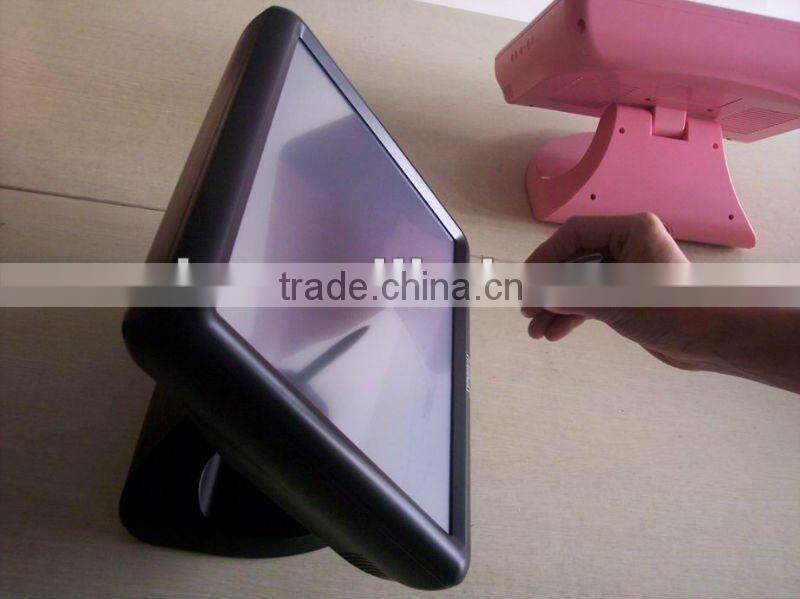

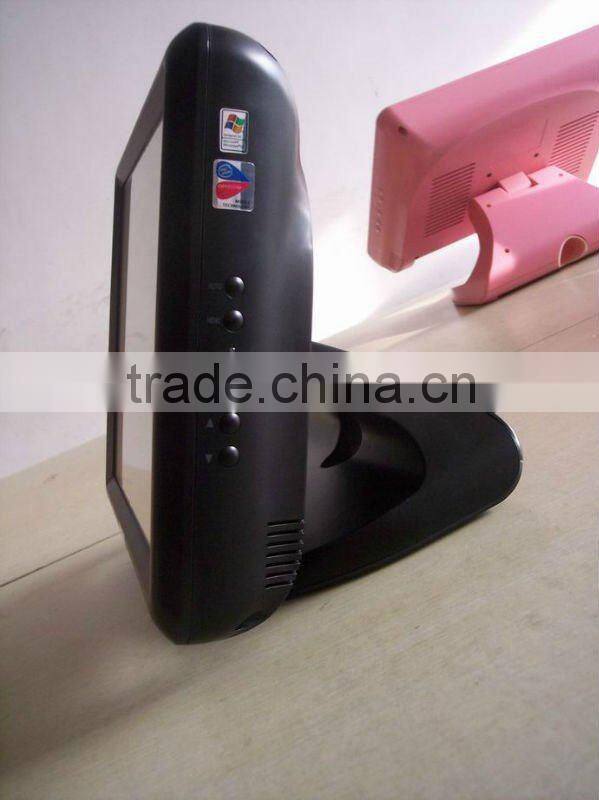

15inch Pos system touch screen all in one pos for Retail and Restaurant pos cash register

Product Type

SE158E(Touch Computer)

Processor

Intel Atom D525 (1.8GHz)

Operating system

-Optional:Windows 2000,XP,Vista,Win7,WinCE,WinPOS 2009

LED screen

- 15 inch LED

Chipset

- Intel NM10  (ICH8)

System memory

- DRAM size: 2GB.

-DDR3 1333Maximum (Memory supported up to 4 GB)

Shows the core

-Onboard Intel GMA3150,support DirectX 9.0C

Hard disk

- HDD: 2.5inch SATA ,SSD Flash

On-board network

-Realtek RTL 8105EL (10M/100M LAN)

On-board sound card

- CODEC: ALC662, 6 Channel output

The rear panel input / output interface

- 4 * USB 2.0ports

- 2 * PS/2 connector for Keyboard and Mouse

- 1 * RJ-45 ports

- 2 * Audio I/O ports ( Line-in, mic and line-out )

- 1 * VGA port

- 2 * DB-9 RS232 COM port

- 1 * DB-25 Connector for Printer Port

- 1 * Power port

Onboard I / O

- 4 * USB 2.0 ports

- 1 * DB-9 RS232 COM port( or 5 * DB-9 RS232 COM port)

System monitoring and management software

- CPU voltage monitoring
- Wake-on-LAN, Keyboard Power-on, Timer Power-on
- System power management
- AC power failure recovery

Operating temperature

0~60°C

Operating Humidity

0% ~ 93% (relative humidity; non-condensing)

Touch screen

Sxtouch w5r Touch Screen(Long life span - exceeds 35 million touches)

(L*W*H)

460*360*320mm

Product weight

7. 5kg
