Specifications
(1)CPU:D525 dual core(2)Industrial 5wires
(3)Resistive touch panel
(4)No shaking
(5)Water proof

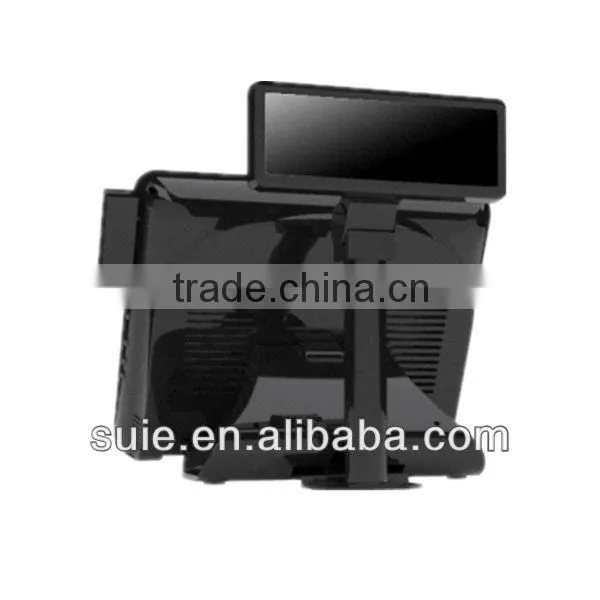

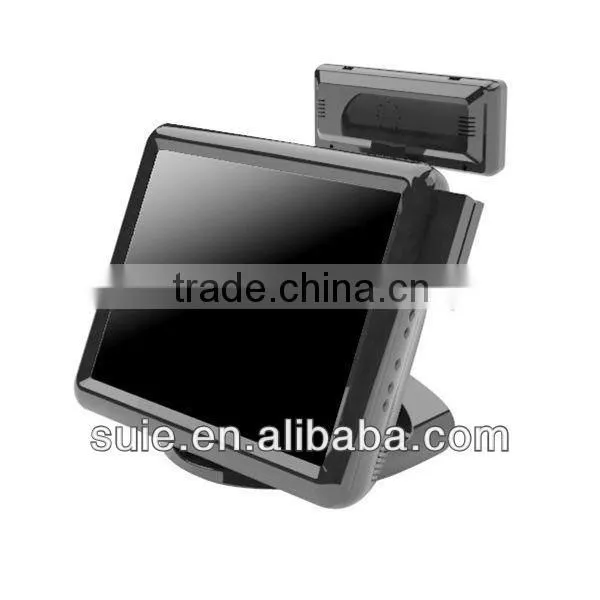

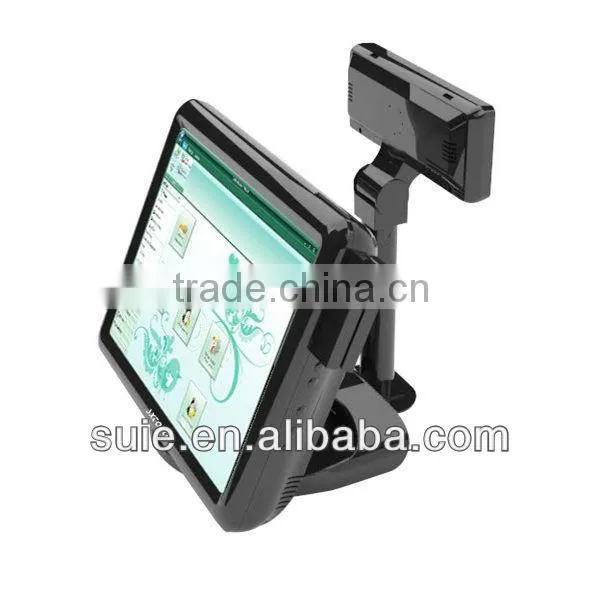

Retail pos systems with custome display touch screen pos terminal
Specifications
Product Type |
SE158E(Touch Computer) |
|
Processor |
Intel Atom D425 (1.8GHz) |
|
Operating system |
-Optional:Windows 2000,XP,Vista,Win7,WinCE,WinPOS 2009 |
|
LED screen |
- 15 inch LED |
|
Chipset |
- Intel NM10 (ICH8) |
|
System memory |
- DRAM size: 2GB. -DDR3 1333Maximum (Memory supported up to 4 GB) |
|
Shows the core |
-Onboard Intel GMA3150,support DirectX 9.0C |
|
Hard disk |
- HDD: 2.5inch SATA ,SSD Flash |
|
On-board network |
-Realtek RTL 8105EL (10M/100M LAN) |
|
On-board sound card |
- CODEC: ALC662, 6 Channel output |
|
The rear panel input / output interface |
- 4 * USB 2.0ports - 2 * PS/2 connector for Keyboard and Mouse - 1 * RJ-45 ports - 2 * Audio I/O ports ( Line-in, mic and line-out ) - 1 * VGA port - 2 * DB-9 RS232 COM port - 1 * DB-25 Connector for Printer Port - 1 * Power port |
|
Onboard I / O |
- 4 * USB 2.0 ports - 1 * DB-9 RS232 COM port( or 5 * DB-9 RS232 COM port) |
|
System monitoring and management software |
- CPU voltage monitoring |
|
Operating temperature |
0~60°C |
|
Operating Humidity |
0% ~ 93% (relative humidity; non-condensing) |
|
Touch screen |
Sxtouch w5r Touch Screen(Long life span - exceeds 35 million touches) |
|
(L*W*H) |
460*360*320mm |
|
Product weight |
7. 5kg |
|
IMAGES
Successful projects:
Peking metro station touch screen service system
The subway extension touch screen service system from Guangzhou to Foshan
China Mobile halls touch screen service system in the whole Guangdong province.
Milk Tea chain-store from all over the world
