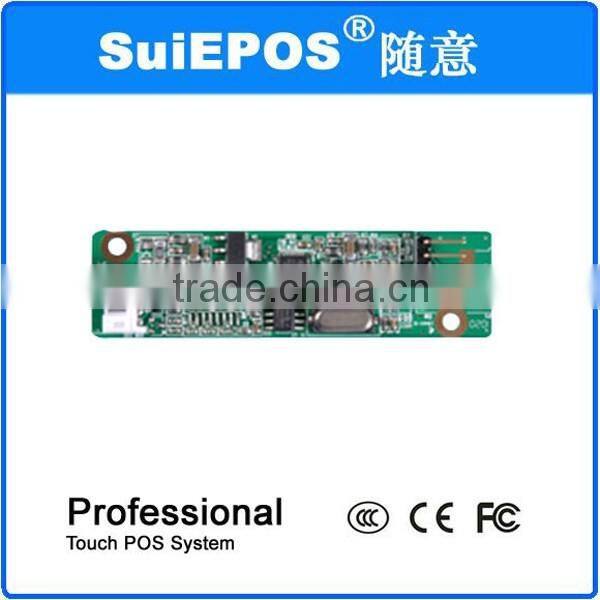

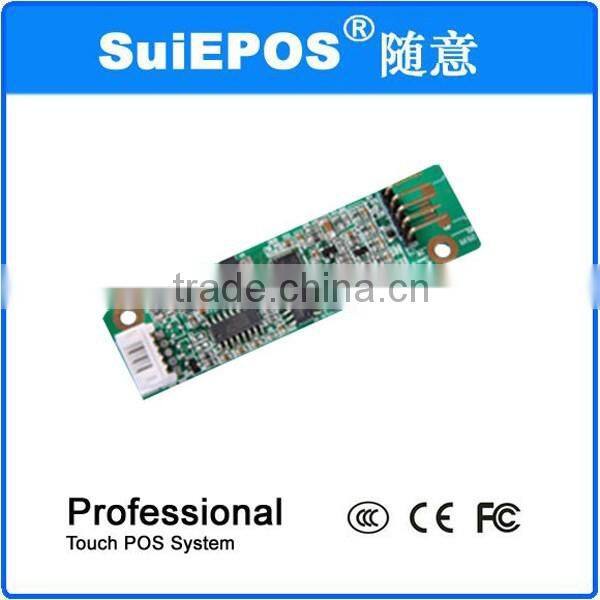

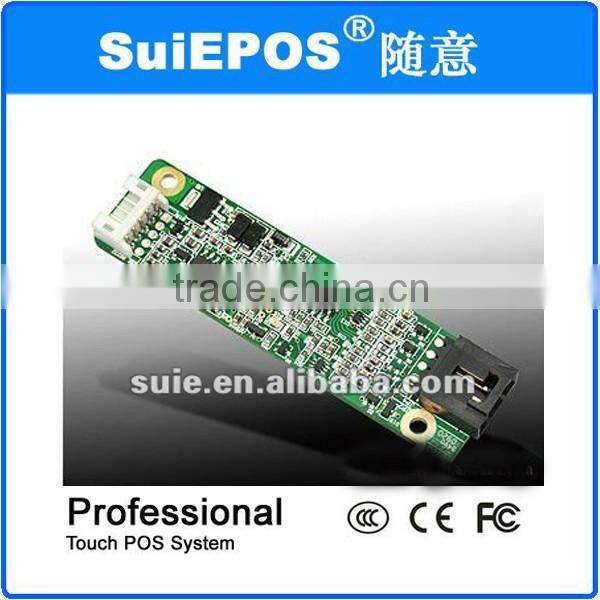

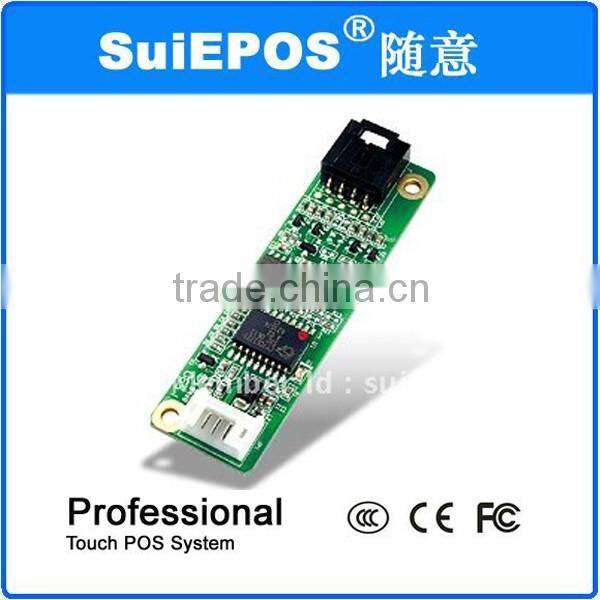

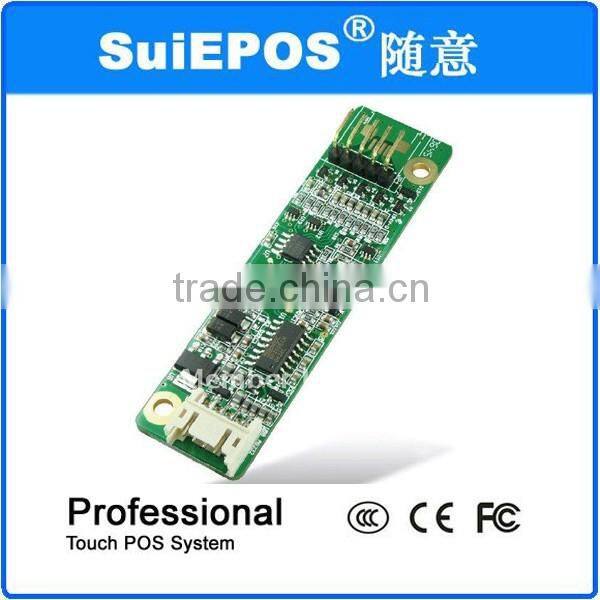

High quality lcd controller board
Hardware Specifications |
( for 4 / 5 wire only ) |
Power Consumption |
DC +5V |
(max. 100mA, typical 70mA, 50mVpp max ripple) | |
Interface |
USB : Full Speed (12Mbps) |
RS232 : 9600 bps, None parity 8 data bits,1 stop bit (N81) | |
PS2 Model : PS2 compatible mouse | |
Report Rate |
USB : 200 points / sec. (Max.) |
RS232 : 160 points/ sec. (Max.) | |
Pin Out Definition |
4 wire model : X+, Y+, X-, Y- |
5 wire model : UL, UR, COM, LR, LL | |
5 wire model : UL, UR, COM, LL, LR | |
Panel Resistance |
4 wire model : 200 ~ 900 ohm |
5 wire model : 50 ~ 200 ohm | |
Note |
When both USB & RS232 ports are connected to |
Performance | |
Resolution(Interpolation) |
4096*4096 |
Linearity Error |
<0.5mm |
Response Speed |
<15ms |
Environmental | |
Temperature |
Operating Range: -25°C ~ 80°C; |
Storage Range: -55°C ~ 150°C | |
Relative Humidity |
95% at 60 degrees Centigrade RH nondensing |
Authentication | |
Agency Approvals |
CE, FCC-B, RoHs |
