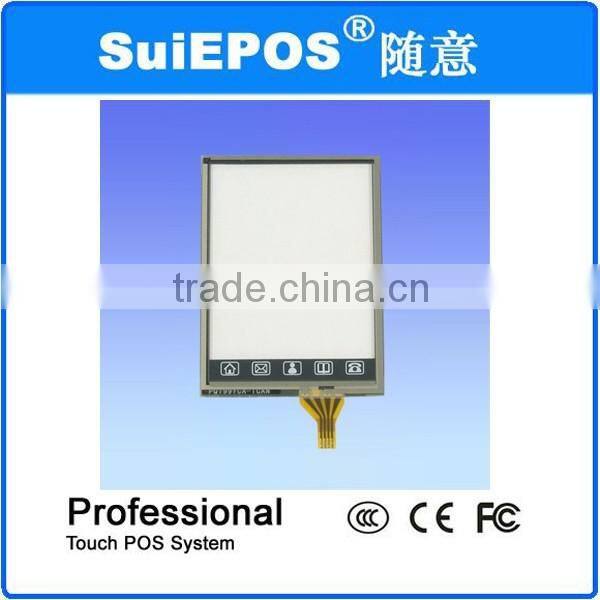

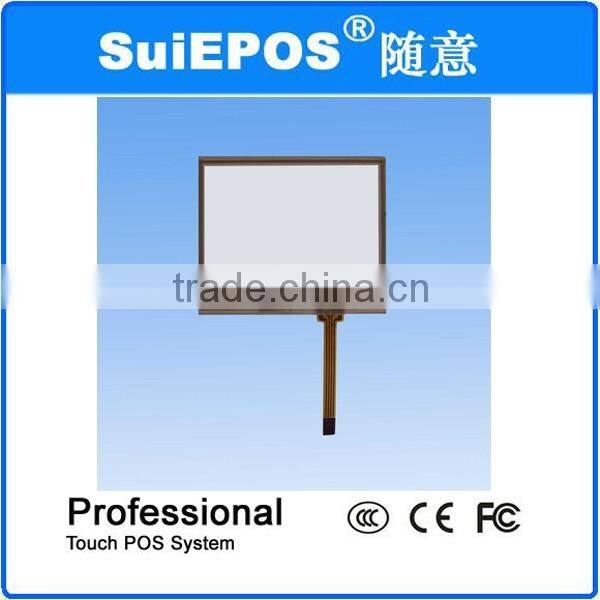

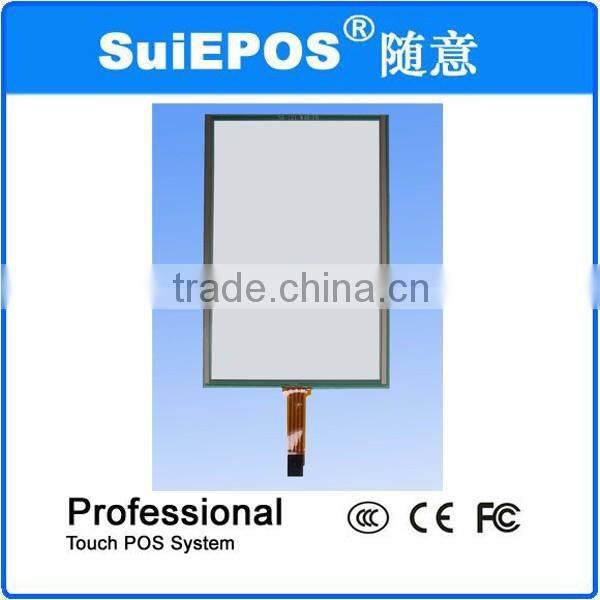

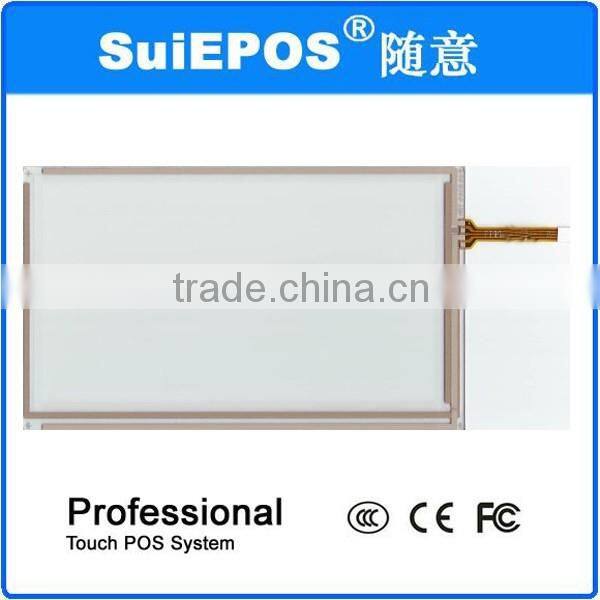

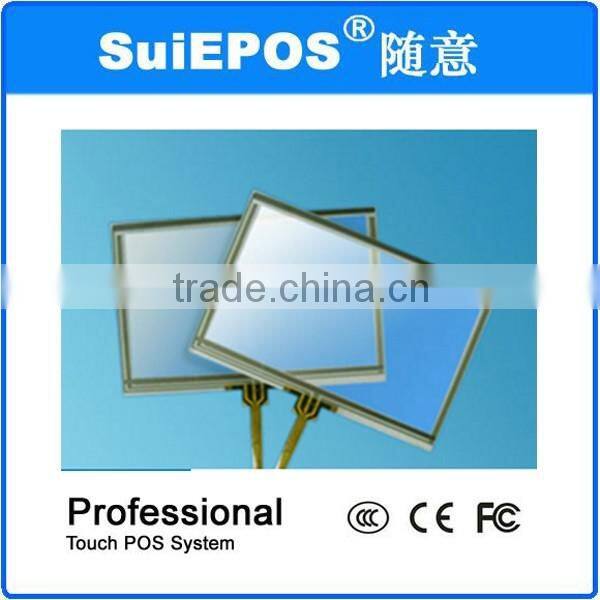

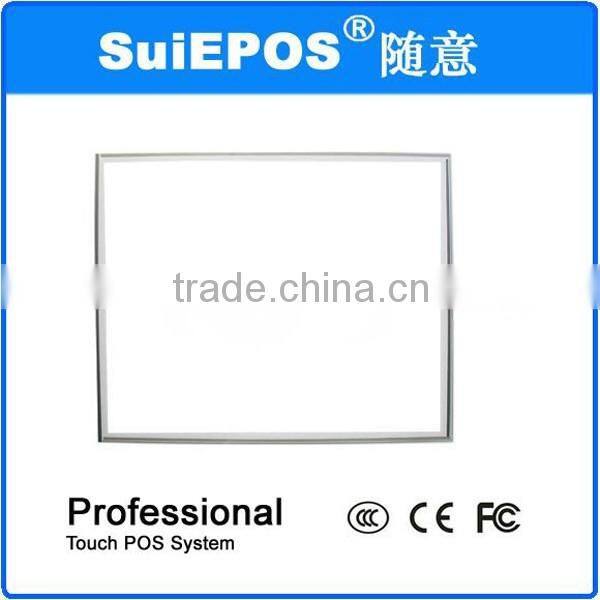

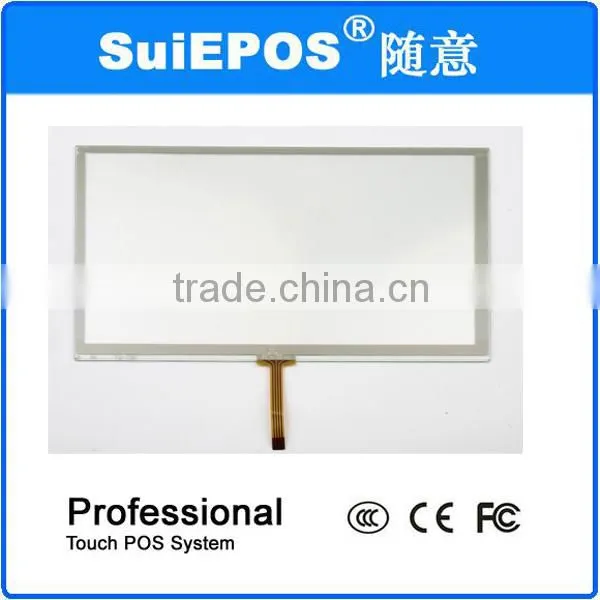

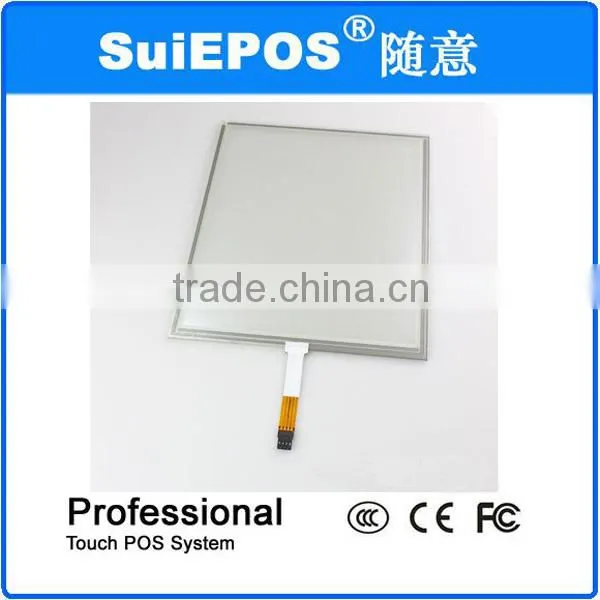

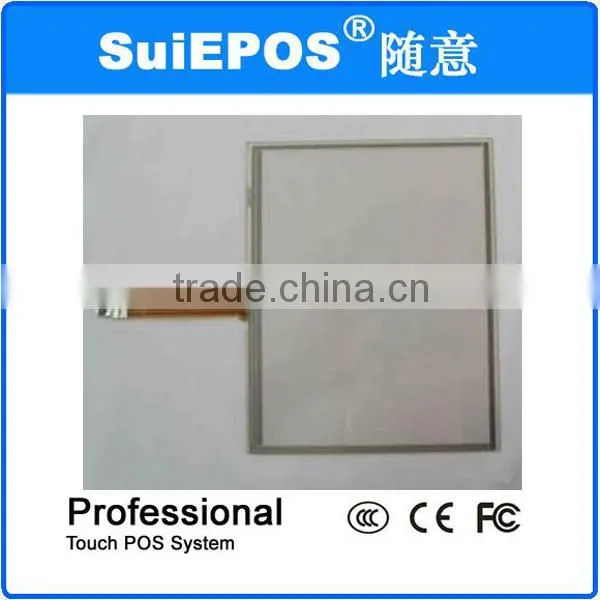

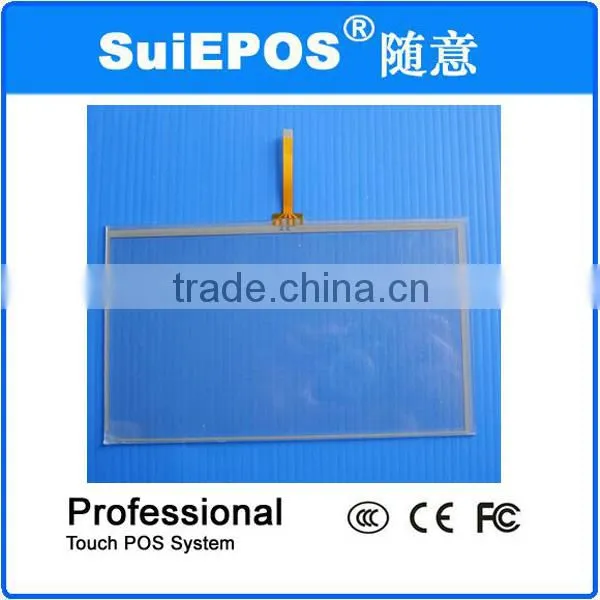

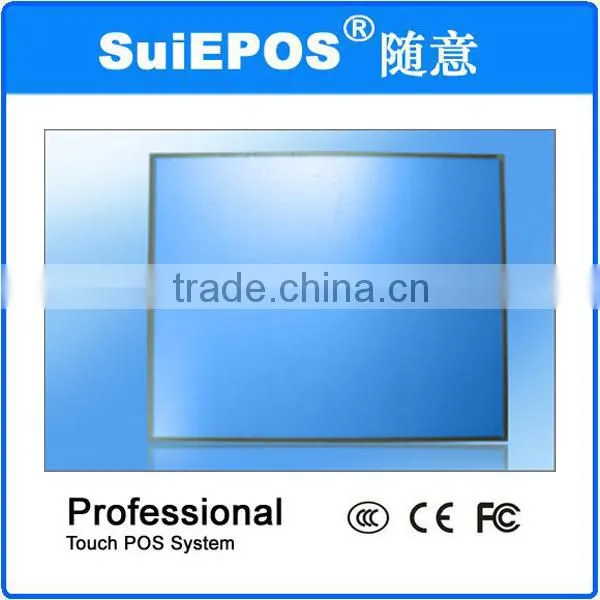

Suie High Quality Touch Screen Panel Glass

Name: Suie High Quality Touch Screen Panel Glass
Brand: suie
SKU: 109393167
Availability: InStock

US$ 10 - 50 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

suie

Model Number:

SE4WR

Shenzhen Sui-Yi Touch Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name suie

Model Number SE4WR

Type Other, TFT, Resistive, TFT, Resistive

suie high quality touch screen panel glass

Product Description

General Size	2.5″ to 22″
Fit in with	Panel display device
Mechanical
Input Method	Finger or gloved hand (rubber ,cloth or leather)
Active Force	Stylus or Finger or Similar ≤45g~110g
Ball Impact	ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area]
Durability	>35 million touches
Positional Accuracy	<1.5%
Optical
Light Transmission	85%(Meet ASTM D1003)
Clear surface	≤3%
Antiglare Surface	≤4%
Anti-Newton	≤10%
Gloss	90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457
Electrical
Supply voltage	DC5V
Circuit Resistance	X:20~250Ω, Y:20~250Ω (See Figure 1)
Linearity	X ≤1.5%, Y ≤1.5%
Response	≤15ms
Insulation	≥20MΩ/25V(DC)
Endurance	No acting damage at DC50V/60sec.
Resolution	Based on controller resolution of 4096 x 4096
Environmental
Operation Temperature	-20℃ ~ +60℃
Operation Humidity	20%RH ~ 85%RH, no condensing
Storage Temperature	-20℃ ~ +70℃
Storage Humidity	10%RH ~ 90%RH, no condensing
Waterproof	Not damaged by running water applied to the active area
Reliability
Heat Cycle	65℃ /240 hrs
Cold Cycle	-20℃ /240 hrs
Thermal Cycle	-20℃ ~60℃ [60 min./cycle] *10 cycles
Operationg System
Operation System	Linux/ Dos / WinME/95/98 / NT/CE/XP/2000/ win7/Mac OS

High accuracy and high resolution.

· Response is fast and high stability.

· Life of about four-wire resistance of 10 times.

Almost to touch with any object

· Waterproof, dustproof, anti-oil pollution, adapt to harsh environments

Technical characteristics

High accuracy and high resolution.

· Response is fast and high stability.

Almost to touch any object

· Waterproof, dustproof, anti-oil pollution, adapt to harsh environments

Product Application

· PDA handheld device

· GPS satellite positioning system

Industrial control systems

· POS, financial terminals

Information kiosk

· Medical equipment service system

· Interactive Learning System

Circuit level: 5v DC, 35 ma		Surface hardness: 3 h
Light transmittance:	The film on the film > 77%	knock life: A life more than 5 million times
	The film on the glass >85%	Stroke life: more than five hundred thousand times
Contact jitter time: <10ms		Operating temperature : -20 ^oC ~ +70 ^oC
Resolution : 4096*4096		Storage temperature : -30^oC ~ +80^oC
Linear <1.5% (special requirements <1.0%)		Glass thickness : 0.55mm,0. 7mm, 1.1mm, 1.8mm, 3.0mm
Operating pressure :10g~100g		The type of glass: glass, toughened glass
