Suie Barcode Scanner Module For Barcode Scanner USB RS232

Name: Suie Barcode Scanner Module For Barcode Scanner USB RS232
Brand: Suie
SKU: 109391563
Availability: InStock

US$ 28 - 90 MOQ: 10 Parcels

Key Specifications

Products Status:

Stock

Type:

Barcode Scanner

Scan Element Type:

CMOS

Shenzhen Sui-Yi Touch Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Barcode Scanner

Scan Element Type CMOS

Colour Depth 36 Bit

Interface Type PS/2, USB, Other, PS/2, USB, RS232

Max Paper Size 600*600mm

Optical Resolution 4mil

Scan Speed 100 Scans/sec

Brand Name Suie

Model Number SEX-500

Place of Origin Guangdong, China

Suie Barcode Scanner Module For Barcode Scanner USB RS232

Functions

1) Handheld laser barcode scanner with holder and auto sense function

2) High scan rate (100 scans/sec) and long reading distance

3) NLSFUNC and all All type support 1d

4) Instock, sample can be send fast

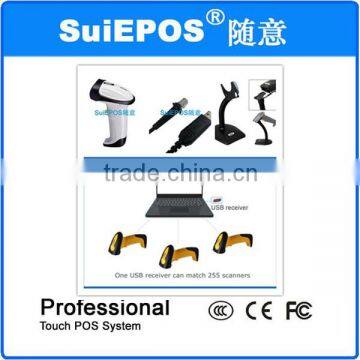

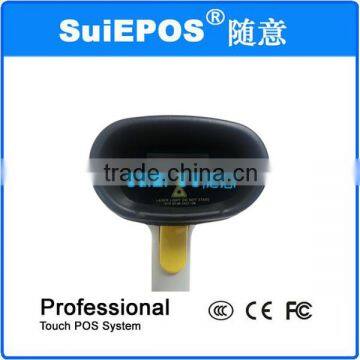

Product picture

Product Description

Type	Barcode Scanner In Scanners
Input Voltage	DC 5V ± 5%
Power Source	Host supply keyboard interface; Rs-232 external or host supply
Current	50ma (working); 30ma (standby); 100ma (maximum peak)
Light Source	650nm visible laser
BER	1/5,000,000
Laser Level	laser safety standards at the national level 1
Scan width	60mm at 30cm, 98mm at 100mm
Depth of Field	2-9cm (0.1mm width article); 3-40cm (0.3mm width article)
Transfer Rate	RS232baudrate: 2400-38400
Article readable width	Minimum 0.1mm (4mils)
Ability to Decode	support all decode type 1d
System Interface	PS / 2 keyboard, RS-232 serial port; standard interface 2.0USB
Sensing distance	25cm(250cm2) 20cm(100m2) 5cm(small area)
Sensing delay	2sec/per time
Decoding Speed	100 times / sec
Reading distance	10-600mm To read 60 degrees elevation and 45 degrees inclination to read
Trigger Mode	Manually; Automatic continuous scanning
Size	length x width x high: 20cm x 6.50cm x 5.8cm
Operating Temperature	- 20 ℃ to 50 ℃
