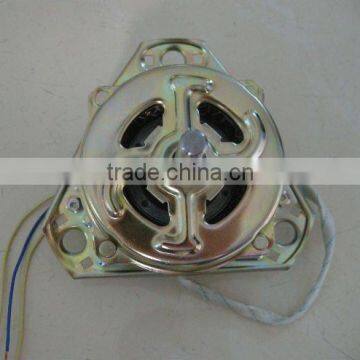

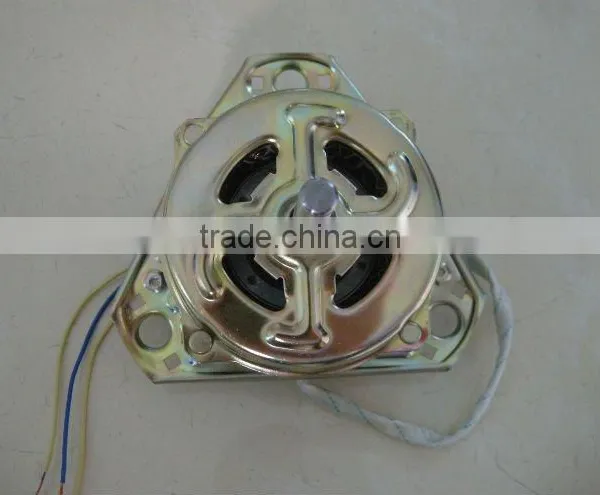

washing machine motor

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	juhong
Model Number	XD-120

model: XD-120
1,power :120W
2,volatge:220V/230V/240V 127V
3,frequency:50hz/60hz
4,runing direction: CCW/CW

specification :

model: XD-120

1,power :120W

2,volatge:220V/230V/240V 127V

3,frequency:50hz/60hz

4,runing direction: CCW/CW

5,capacitor: 10uf/12uf

6,speed:1320rpm/min

7,gurtantee times:3years

It's running common ,aslo have good performance in operation .we can do it from 90W-300W .

twin tube wash machine motors
1 smoothing in operated
2 small starting current
3 Large overload capacity

washing motors
model	rated power	voltage	frequency	current rating	starting torque	greatest torque
XD-80	80W	220-240v 110-127v	50/60Hz 60Hz	<=0.85A <=1.5A	>=0.7Nm	>=1.0Nm
XD-100	100W	220-240v 110-127v	50/60Hz 60Hz	<=1.1A <=2.2A	>=0.8Nm	>=1.30Nm
XD-120	120W	220-240v 110-127v	50/60Hz 60Hz	<=1.15A <=2.2A	>=0.85Nm	>=1.50Nm
XD-130	130W	220-240v 110-127v	50/60Hz 60Hz	<=1.3A <=2.5A	>=0.90Nm	>=1.55Nm
XD-150	150W	220-240v 110-127v	50/60Hz 60Hz	<=1.4A <=2.8A	>=0.95Nm	>=1.70Nm
XD-180	180W	220-240v 110-127v	50/60Hz 60Hz	<=1.6A <=3.5A	>=1.2Nm	>=2.30Nm

spin motor
model	rated power	voltage	frequency	current rating	starting torque	greatest torque
YYG-30	30W	220-240v 110-127v	50/60Hz 60Hz	<=0.5A <=0.95A	>=0.32Nm	>=0.45Nm
YYG-40	40W	220-240v 110-127v	50/60Hz 60Hz	<=0.58A <=1.10A	>=0.38Nm	>=0.50Nm
YYG-45	45W	220-240v 110-127v	50/60Hz 60Hz	<=0.65A <=1.3A	>=0.42Nm	>=0.56Nm
YYG-60	60W	220-240v 110-127v	50/60Hz 60Hz	<=0.75A <=1.5A	>=0.50Nm	>=0.75Nm
YYG-70	70W	220-240v 110-127v	50/60Hz 60Hz	<=0.8A <=1.5A	>=0.53Nm	>=0.82Nm
YYG-90	90W	220-240v 110-127v	50/60Hz 60Hz	<=0.95A <=1.8A	>=0.63Nm	>=1.10Nm
