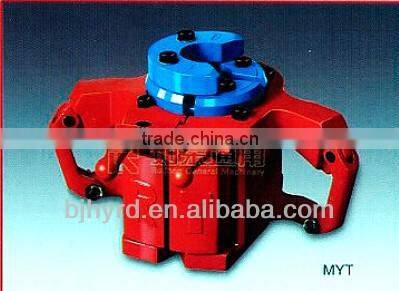

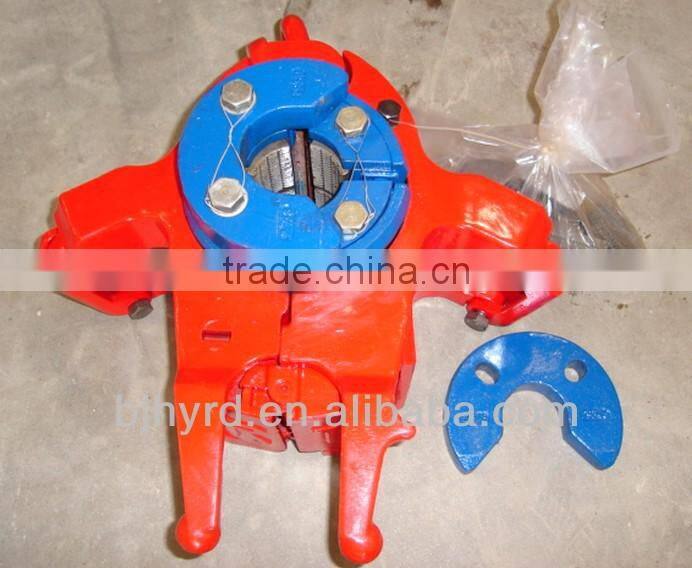

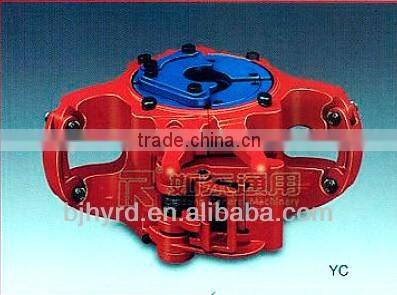

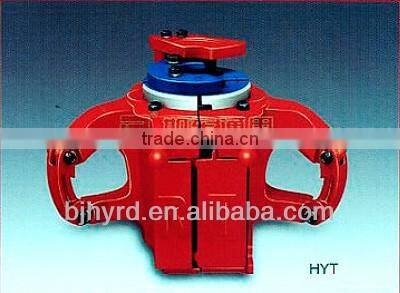

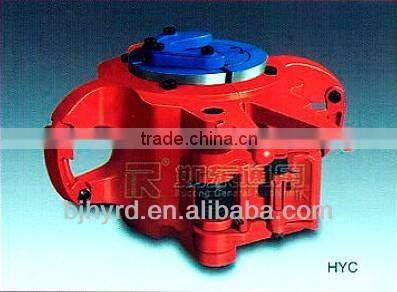

Y series slip type elevators
Specification
1.Model: Y series slip type elevators, such as HYT,YT,MYT,LYT,HYC,MYC,YC
2. especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column.
3. an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation.
4.Standard: API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment
5. rated capacity:20-200 tons
Main Technical Parameters
Model |
Size |
Rated Cap. |
|
mm(in) |
kN |
short Tons |
|
HYT |
60.3-88.9(23/8-31/2) |
1350 |
150 |
YT |
33.4-88.9(1.315-31/2) |
675 |
75 |
MYT |
33.4-73(1.315-27/8) |
360 |
40 |
LYT |
26.7-52.4(1.05-11/16) |
180 |
20 |
HYC |
88.9-139.7(31/2-75/8) |
1800 |
200 |
MYC |
88.9-117.8(31/2-7) |
1125 |
125 |
YC |
88.9-117.8(31/2-7) |
675 |
75 |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV and SGS.
