Specifications
ro1. RO USA membrane
2. 1-20tons/hr
3. stainless steel 304 316L

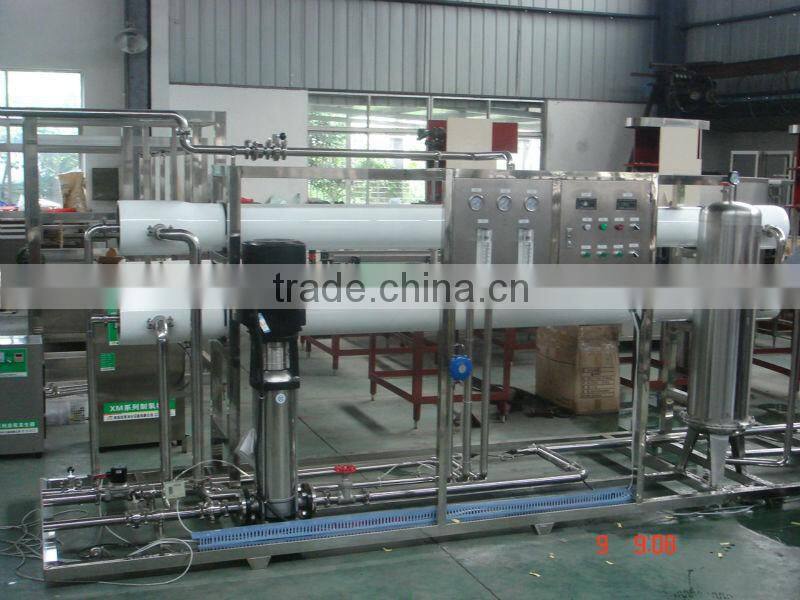

RO filtration system for pure water
the water purifying machine, reverse osmosis devise can remove more then 97% of deliquescent saline substance and 99% of colloid, microbe, particulate and organic substance in water. Due to its low energy consumption, easy operation and maintenance, output of high-quality water and bringing no pollution, this machine has become the best choice for producing pure water, super- pure water
Quartz sand filter;
Quartz sand filter can filter to remove large particles of suspended solids in water, filter backwash regularly required to remove the retention of suspended solids, sand filter media tank filter with quartz sand in the main, to remove the water oxidation, rust, colloid , sediment, etc., the effluent becomes clear. Equipment can be washed under the water on a regular basis. 10-20 minutes each wash. (This equipment mainly for processing of turbidity)
Activated carbon filter;
Activated carbon filter for further filtration to remove particles of suspended solids in water, filter backwash regularly required to remove the retention of suspended solids, sand filter media tank filter with quartz sand in the main, to remove the water oxidation, rust, colloid , sediment, etc., the effluent becomes clear. Equipment can be washed under the water on a regular basis. 10-20 minutes each wash. (This equipment mainly for processing of turbidity)
Precision filter;
Precision filter filtration accuracy of 5 microns, as UF into the water to further remove the turbidity of precision filter, better protection of the back-end precision equipment. This precision filter with a diameter of 81 cm, 18 cm long fiber bag.
Precision filter in use should be preceded by opening the top of the exhaust valve, so that all the precision filter in the gas discharge. Run-time observation of the water filters through quantitative pressure difference before and after, when the filter pressure difference before and after the initial increase 0.05MPa than running, you should consider replacing. At this point the filter inlet valve closed, open the cover on the filter, check the bag, observe and record the pollution, and clean or replace the filter bag. (Recommended bag recycling 2 times)
- Reverse Osmosis is the device that uses semi-permeable membrane under the pressure difference’s function to make the salt water desalination and purification.
- It is on the contrary of natural direction, so it is called reverse osmosis.
- It can remove more than 97% solubility of salts in the water and more than 99% of the gel, micro-organisms, and particulate organic matter and so on.
- It is the first choice equipment of modern water and purified water.
- Main Process Flow of RO Systems
- Raw Water →Raw water pump→ Multi-medium filter→ Activated carbon filter→ Precise filtration → water storage tank → water pump→ Reverse osmosis unit→ water storage tank→ water pump →filling line
