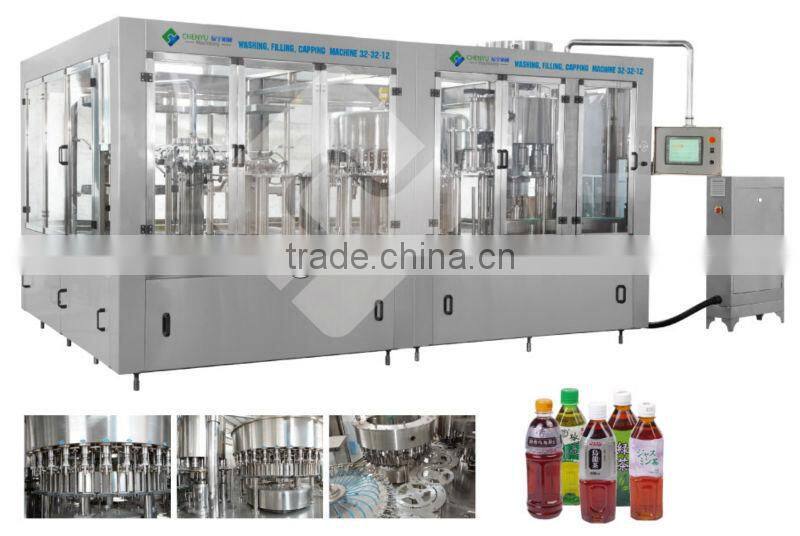

Tea processing machine
It is suitable for filling various kinds of fruit juice, tea kinds. It is also used in filling mineral water, pure water and other liquid at normal temperature.
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology
3. It is equipped with temperature control system, the filling temperature can be set. When the supplied material temperature is higher of lower than the set one, it will auto stop. When the material temperature is lower than the set one, the material will be conveyed to the circulate system to treat it again to ensure the set temperature in filling.
4. Advanced programmable PLC is equipped to control the main machine.
5. Working speed can be adjusted by frequency conversion device.
6. Main electronic components are all from famous international enterprises
7. The liquid level is correct and the filling characteristics are steady.
Main Technical Parameters:
Model: |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-12 |
RCGF40-40-12 |
Production Capacity :500ml |
5000 |
8000 |
12000 |
15000 |
Suitable Bottle Standard :(mm) |
150-340 |
|||
Suitabl diameter Standard :(mm) |
50-110 |
|||
Filling Temperature : |
80°-90° |
|||
Filling Pressure :(Mpa) |
0.2-0.25 |
|||
Installed Capacity :(L) |
3.5 |
4 |
6 |
8 |
Overall Size L×W×H(mm) |
2400×1800×2350 |
2800×2200×2350 |
3600×2650×2350 |
3800×2950×2400 |
Total Weight :(kg) |
3200 |
4200 |
5200 |
6200 |
