Specifications

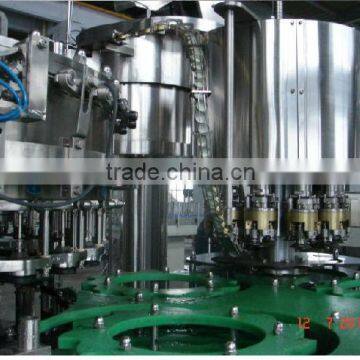

Automatic Wine / Whisky/ Vodka filling machine1. Third generation filling valve
2. suitable for PET &Glass bottle
Alcohol Wine / Whisky/ Vodka filling machine
Take notice please:
We can supply the turnkey and installation running service.
I. Characteristics:
This machine with washing filling and capping,normally used for glass bottle and ROPP cap. The capacity is from 2,000-12,000 bottles per hour.
1. glass bottle
2. aluminum cap or crown cap
3. cork
4. the parts touth with Alcohol/Vodka/Wine are made of stainless steel 316L
5. with PLC control system
6. stepless timing with frequency conversion
7. the bottle neck lock system,which makes the process of changing bottles easy by only adaping the height of conveyer chain
8. no bottle rinsing
9. no bottle capping
II. Main Models and technical parameters
Model | CGFC16-16-6 | CGFF18-18-6 | CGFF24-24-8 | CGFF32-32-10 |
Capacity | 5000bph(500ml) | 6000bph(500ml) | 80000bph(500ml) | 12000bph(500ml) |
Rising heads | 16 | 18 | 24 | 32 |
Filling heads | 16 | 18 | 24 | 32 |
Capping heads | 5 | 6 | 8 | 10 |
Bottle Diameter | Commonly 50-110mm (can adjustable) | |||
Bottle Height | Commonly 150-340mm(can adjustable) | |||
| BOTTLE | Glass or Plastic bottle | |||
Rising pressure | 0.2-0.25Mpa | |||
Overall size | 2130*1700*2350 | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 |
Weight | 3.3t | 3.5t | 4.5t | 5.5t |
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
