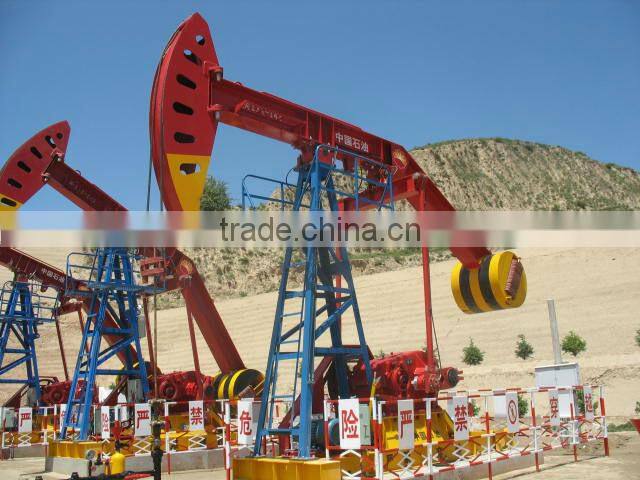

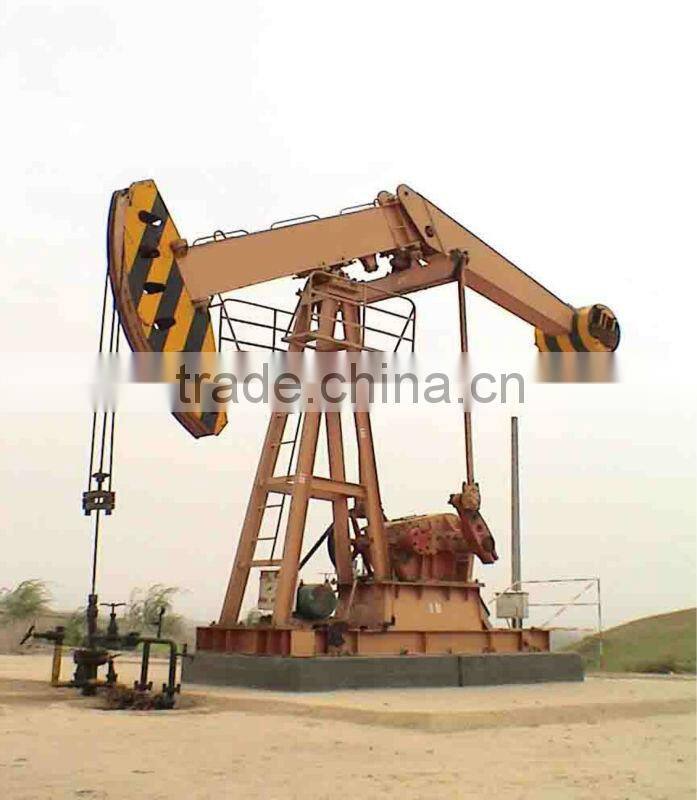

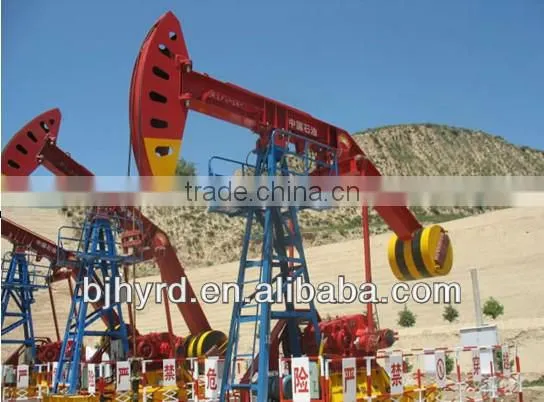

Oil field beam pumping unit
Structure Features
Based on the original four bar mechanism of walking beam pumping unit,we mount the equalizer on the upwards of walking beam,the rear end of walking beam is bent and adding a barbell at the downwards of walking beam,combined with crank balance to become a compound balance,so the balance effect is better than before,the usage life of reducer is prolonged,the power of electric motor is smaller than before ,The waving scope of electric current becomes small,It can save about 30% energy.
Technical Parameters
|
No.
|
Model
|
Torque Rating(lbf.in)
|
Rated Structure Capacity(lbf)
|
Stroke Length
|
Stroke Frequency(min-1)
|
||||
1 |
C912-365-192 |
912,000 |
30,500 |
192 |
165 |
139 |
4 |
6 |
8 |
2 |
C640-305-168 |
640,000 |
30,500 |
168 |
145 |
124 |
5 |
7 |
9 |
3 |
C640-365-144 |
36,500 |
144 |
124 |
106 |
6 |
8 |
10 |
|
4 |
C456-305-144 |
456,000 |
30,500 |
168 |
145 |
124 |
5 |
7 |
9 |
5 |
C456-365-144 |
30,500 |
144 |
124 |
106 |
6 |
8 |
10 |
|
6 |
C320-256-120 |
25,600 |
120 |
102 |
85 |
6 |
9 |
12 |
|
7 |
C228-213-120 |
228,000 |
21,300 |
120 |
102 |
85 |
6 |
9 |
12 |
8 |
C228-173-100 |
17,300 |
100 |
86 |
73 |
6 |
9 |
12 |
|
9 |
C160-200-64 |
160,000 |
17,300 |
86 |
74 |
62 |
9 |
12 |
15 |
10 |
C114-143-74 |
14,300 |
74 |
62 |
51 |
12 |
15 |
18 |
|
11 |
C80-119-64 |
80,000 |
11,900 |
64 |
53 |
42 |
12 |
15 |
18 |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
