Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Grade S135 Drill Pipe for Oil Field

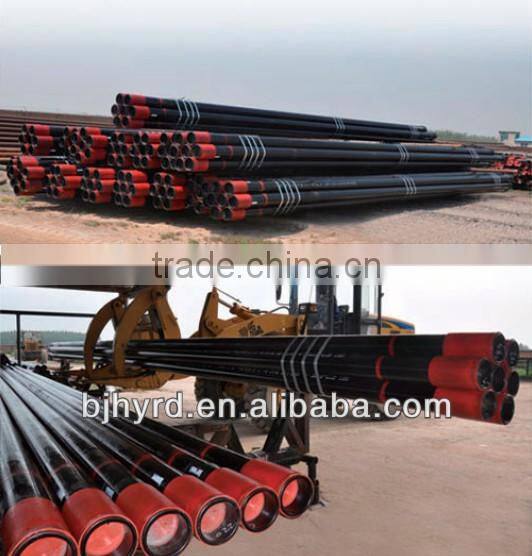

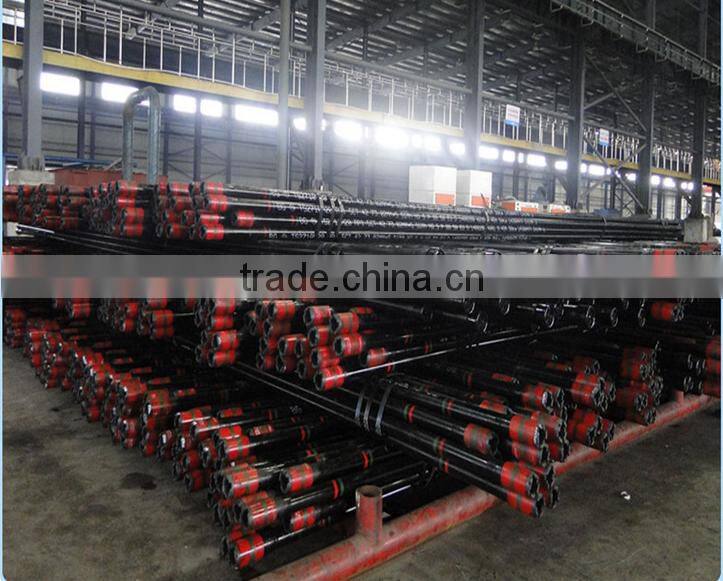

Grade S135 Drill Pipe for Oil Field

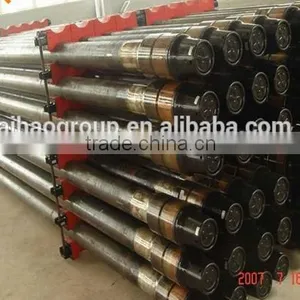

Grade S135 Drill Pipe for Oil Field thumbnail-1
Grade S135 Drill Pipe for Oil Field photo-1
US$ 1 - 1,000,000 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
OCEAN RENDA
Model Number:
API 5DP
Contact Supplier Request Quote Chat Now
Beijing Ocean Renda Petroleum Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name OCEAN RENDA
Model Number API 5DP
Type Drill Pipe
Machine Type Drilling Equipment
Certification API
Material Stainless Steel
Processing Type Forging
Use Well Drilling

Grade s135 drill pipe  for oil field

Product Description

1. Process High Quality Drill Rod

Process of drill rod generally includes three parts: the pipe end thickening processing tool joints, friction welding, and subsequent processing.

1). The performance and advantages: rod tube ends inside and outside thicker type, the joint use of phosphate or plated steel threaded processing.

2). The product uses: down hole drilling operations, to extend the drill footage;

3). Service: home delivery, tracking services;

4). Packing: steel strapping, compartment plate press-fit.



2. Description High Quality Drill Rod



We can supply all kinds of drill pipes that are consistent with API SPEC 5DP or SY.

Drill Pipe Price can be made as customers' requirements and be equipped with the same type of tool joints.



Advanced drill pipe production lines can transfer the welding parameters to the best position to ensure the quality of welding zone; the heat treatment process with the feature of internal and external cooling at the same time can make a more reliable and stable mechanical character. Application of automatic weight, length measurement and automatic spray records can ensure products' traceability. Application of thickening and heating lines and 1250 tons of upsetting machine can ensure the thickening size meet the standard of API SPEC 5DR Using of CN furnace for whole pipe body heating and quenching, tempering machine's advanced heat treatment process can ensure the pipe's mechanical character. Tube hydraulic straightening machine ensures the straightness and coaxiality of pipe body.



3. Specification High Quality Drill Rod



Size  Normal Weight Calculated Plain-End weight Grade Outside Diam. Wall Thickness Upset type Tool Joint
in mm Lb/ft Lb/ft kg/m   Inch mm Inch mm
2-3/8 60.3 6.65 6.26 9.32 E,X,G,S 2.375 60.3 0.28 7.11 EU NC26
2 7/8 73 10.4 9.72 14.48 E,X,G,S 2.875 73 0.362 9.19 EU IU NC31
3 1/2 88.9 9.5 8.81 13.12 E 3.5 88.9 0.254 6.45 EU IU NC38
3 1/2 88.9 13.3 12.31 18.34 E,X,G,S 3.5 88.9 0.368 9.35 EU IU NC38,NC40
3 1/2 88.9 15.5 14.63 21.79 E 3.5 88.9 0.449 11.4 EU IU NC38,NC40
3 1/2 88.9 15.5 14.63 21.79 X,G,S     0.449 11.4 EU IEU
4 101.6 14 12.93 19.26 E,X,G,S 4 101.6 0.33 8.38 EU IU NC40,NC46
4-1/2 114.3 13.75 12.24 18.23 E 4.5 114.3 0.271 6.88 EU IU NC46,NC50
4-1/2 114.3 16.6 14.98 22.31 E,X,G,S 4.5 114.3 0.337 8.56 EU IEU NC46,NC50
4-1/2 114.3 20 18.69 27.84 E,X,G,S 4.5 114.3 0.43 10.92 EU IEU NC46,NC50
5 127 16.25 14.87 22.15 X,G,S 5 127 0.296 7.52 IU NC50.5,1/2FH
5 127 19.5 17.93 26.71 E 5 127 0.362 9.19 IEU NC50.5,1/2FH
5 127 19.5 17.93 26.71 X,G,S 5 127 0.362 9.19 EU IEU NC50.5,1/2FH
5 127 25.6 24.03 35.79 E 5 127 0.5 12.7 IEU NC50.5,1/2FH
5 127 25.6 24.03 35.79 X,G,S 5 127 0.5 12.7 EU IEU NC50.5,1/2FH





4.Strength High Quality Drill Rod





  Grade Yield Strength Tensile strength
min max min
Psi Mpa Psi Mpa Psi Mpa
1 E-75 75 517 105 724 100000 689
2 X-95 95 655 125 862 105000 724
G-105 105 724 135 931 115000 793
S-135 135 931 165 1138 145000 1000





Grade s135 drill pipe for oil fieldGrade s135 drill pipe for oil field



Company Information

Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment.  Our products get the API  certificates. At present, our main market is in South America. Our company  have established four overseas company in United States, Colombia , Mexico and Dubai.





FAQ



1. What does Ocean Renda do?

Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.

2. What does Ocean Renda offer?

Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.

3.Can I expect a quality products?

All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV and SGS.
