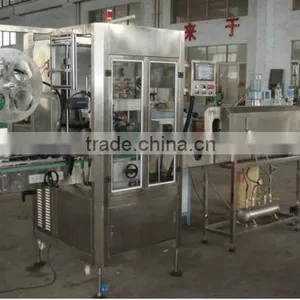

Labeling Machine for Bottles
Usage: This machine is used for covering the circle label on the position designated of the PET bottle (the bottle can be round shape or square shape bottle), and then the label will shrink to fix on the bottle when through the hot shrinking channel (with the machine and after it).
Features:
1) The machine is made of stainless steel and high quality Aluminum alloy, structure in reason, tighten, adjustment conveniently.
2) Not need ground feet bolts, move conveniently, flexible assort production field.
3) Shrink film volume label frame, according to different volume label paper pipe adjusted range 5”-10”.
4) Transmission machine can be adjusted conveniently without tools, which make is more suitable for different bottle sizes.
5) Forced insertion design proves to be reasonable and convenient.
6) The system of cutting volume label ensures last error.
7) Special designed knife plate is changed free with the related specifications.
8) Newel nip system makes change and installation rapid without tools.
9) Disport bottle screw, located strap, transport chain adopts synchronization adjust model, adjust facility.
10) Introduce Japanese servo motor and high-delicacy photo electricity, the length of cutting label is precise.
Main Technical Specifications
Model | PM-100 | PM-200 | PM-200P | PM-300 |
Production speed (bot./h): | 100 | 200 | 100-200 | 300 |
Suitable bottle diameter(mm): | 28-120 | 28-120 | 20-50(bottle mouth) | 28-120 |
Label length(mm): | 30-250 | 30-250 | 30-100 | 30-250 |
Label thickness (mm): | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 |
Power consumption (kw): | 1.5 | 3 | 1.5 | 3 |
Size(mm): | 2100*850*2000 | 2100*850*2000 | 780*1200*2000 | 2100*1100*2000 |
Weight(kg): | 400 | 500 | 500 | 600 |
