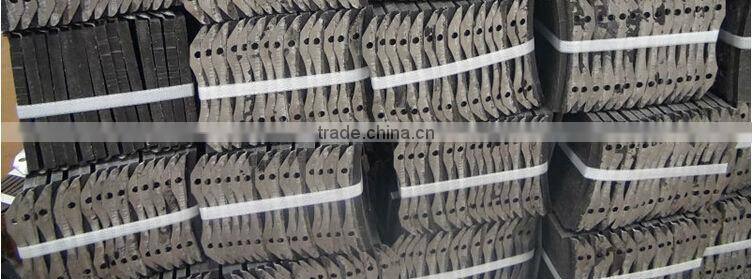

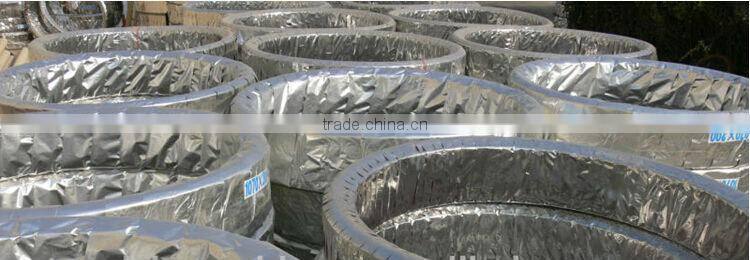

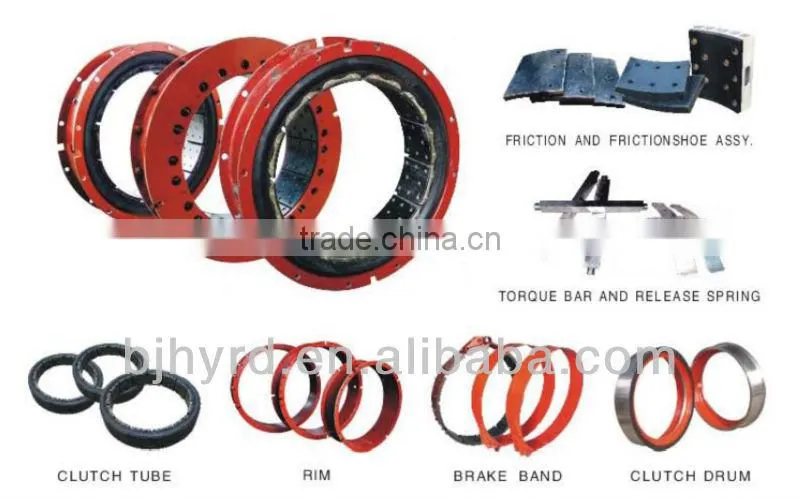

VC TYPE Penumatic Tube Clutch
Specification
1.Type: VC TYPE
2. Stable perfomance
3. small inertia of the driven parts, long service life
4. vibration absorption,
5. compensation to an extent for the relative radial offset and relative angular offset of drive and driven shafts
6. long service life, compact structure and good sealing
Technical Specification
Type |
AVB500/200 |
LT500/250T |
AVB600/250 |
LT700/250T |
LT700/135DY |
LT800/250T |
||
Rotate speed (r/min) |
Max |
1312-1578 |
1586-1701 |
1281-1544 |
- |
1569-1890 |
1016-1224 |
|
Rating |
768-912 |
916-983 |
740-892 |
- |
907-1092 |
587-707 |
||
Torsional moment |
Max |
17110-24970 |
23390-26900 |
32200-46710 |
- |
24560-35630 |
54240-78660 |
|
Rating |
11406-16646 |
15590-17930 |
21466-31140 |
32100-47300 |
16170-23750 |
36160-52440 |
||
Working pressure (MPa) |
0.7-1.0 |
0.7-0.8 |
0.7-1.0 |
0.7-1.0 |
0.7-1.0 |
0.7-1.0 |
||
Clutch cubage(L) |
13*2 |
3-5 |
2*2 |
2.28*2 |
24 |
2.66*2 |
||
Drum dia(mm) |
Ø500 |
Ø496 |
Ø600 |
Ø700 |
Ø700 |
Ø800 |
||
Spider Size (mm) |
Dia. |
Ø780 |
Ø750 |
Ø890 |
Ø1010 |
Ø935 |
Ø1115 |
|
Width |
243 |
288 |
284 |
292 |
200 |
300 |
||
Orien tation dia. |
Ø300H8 |
Ø750f9 |
Ø340H8 40H8*100 |
Ø240H8 |
Ø360H10 |
Ø1105f9 |
||
Bolt QTY and dia. |
40H8*80 |
12- Ø18H10 |
12- Ø23H10 |
8- Ø32H8 |
16- Ø22H10 |
16- Ø22H10 |
||
Bolt Strbuting dia. |
10- Ø18H10 |
Ø720 |
Ø420 |
Ø300 |
Ø400 |
Ø1070 |
||
Air connection tube thread size |
2-G1/2" |
2-M20*1.5 |
2-G1/2" |
2-G1/2" |
1-M20*1.5 |
2-G1/2" |
||
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
