RCGF Series Automatic Filling Machine

RCGF Series Automatic Filling Machine thumbnail-1
RCGF Series Automatic Filling Machine photo-1
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Application:
Beverage
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Winmark Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power By capacity
Place of Origin Jiangsu, China
Brand Name Winmark
Model Number RCGF
Dimension(L*W*H) 2950*2450*2400
Weight 4000KG
Certification CE ISO SGS
After-sales Service Provided Engineers available to service machinery overseas

  Automatic filling machine

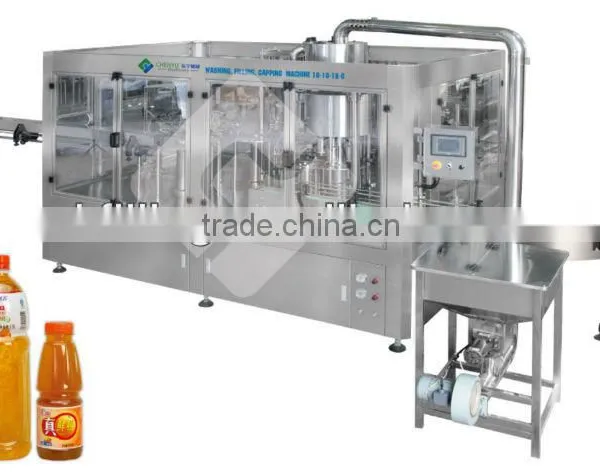

RCGF Series Automatic Juice Filling Machine



it is used for packing hot liquid, such as fruit juice, tea drink in PET bottles. we can supply the whole line.







Characteristics:



1. The washing, filling and capping 3 kinds of jobswill be finished just by this one machine.



2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.



3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjustedby frequency conversion device.







4. In case of overheat it will alarm while if temperature is lower than standard the machine will stop and the liquid will flowback.



5. Main electronic components are all from famous international enterprises.







Main Technical Specifications
Model:
RCGF18-18-6
RCGF24-24-8
RCGF32-32-12
RCGF40-40-12
Production Capacity :500ml
5000
8000
12000
15000
Suitable Bottle Standard :(mm)
150-340
Suitable Cap Standard :(mm)
50-110
Filling Temperature :
80°-90°
Filling Pressure :(Mpa)
0.2-0.25
Installed Capacity :(L)
3.5
4
6
8
Overall Size L×W×H(mm)
2400×1800×2350
2800×2200×2350
3600×2650×2350
3800×2950×2400
Total Weight :(kg)
3200
4200
5200
6200





RCGF series automatic filling machine





RCGF series automatic filling machine



RCGF series automatic filling machineRCGF series automatic filling machine



RCGF series automatic filling machineRCGF series automatic filling machine
