Potable Water PET Bottle Washing Filling and Capping Machine 3in1 Monobloc
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram
You May Like
-
Automatic Potable Drinking Water Filling Production Line
-
Plastic Injection Mould/blow Mold/plastic Bottle Cap Mould
-
Blow Molding Machine, Four Station Two Head,connector Injection
-
3 in 1 Bottle Rinsing Filling Capping Machine Return Commission
-
Rinsing Washing Filling Bottle Return Machine
-
Factory Price Automatic Pure Water/coconut Wate/mineral Water Bottle Washing Filling Capping Machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Winmark | Model Number | CGF | |
| Voltage | 380V | Power(W) | 3.5KW | |
| Weight | 3000KG | Dimension(L*W*H) | 2450*1800*2400 | |
| Processing Types | WATER | Certification | CE ISO |
Product Description

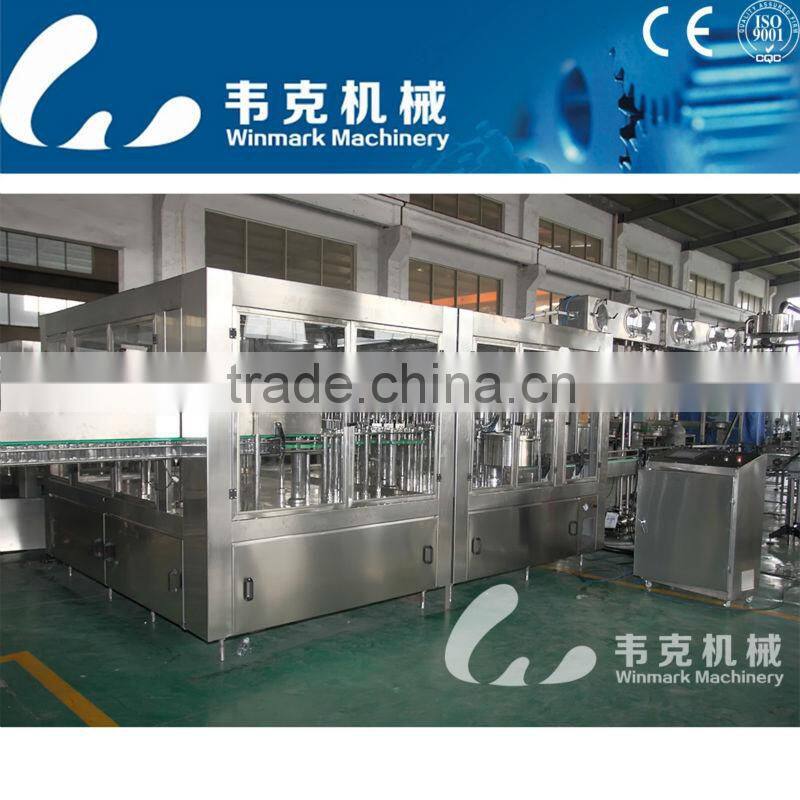

Potable water PET bottle washing filling and capping machine 3in1 monobloc
Description:
This series of bottle capping machine are used for capping PET bottle.
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine.
4. Main electronic components are all from famous international enterprises, like Siemens or Mitsubishi.
5. All spare parts that may touch with water are made from high-quality stainless steel.
Main Technical Specifications
Model: | CGF16/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
Production Capacity:500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Suitable Cap Standard:(mm) | φ50-φ110 | |||||
Filling Pressure:(Mpa) | 0.2-0.3 | |||||
Filling Model: | by Gavity | |||||
Installed Capacity:(L) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
Overall SizeL×W×H(mm) | 2400×1670 ×2350 | 2470×1970 ×2350 | 2865×2170 ×2350 | 3700×2570 ×2350 | 3800×2950 ×2400 | 4500×3400 ×2400 |
Total Weight:(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |
