carbonated water filling line

FOB Price

USD $20,000 - $50,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Winmark	Model Number	DCGF
Voltage	380V	Power(W)	3.8KW
Weight	4500KG	Dimension(LWH)	295021502400
Processing Types	CARBONATED DRINK	Certification	CE ISO
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

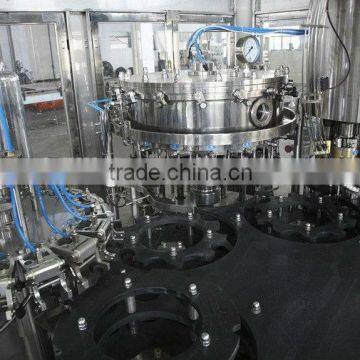

carbonated water filling line

It is used for filling carbonated drink in PET bottles or glass bottles. We can supply the whole line.

Characteristics:

1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology

3. Advanced programmable PLC is equipped to control the main machine.

4. Working speed can be adjusted by frequency conversion device.

5. Main electronic components are all from famous international enterprises

Main Technical Specifications:

Model:	DCGF18-18-6	DCGF24-24-8	DCGF32-32-12	DCGF40-40-12
Production Capacity:500ml	5000	8000	12000	16000
Suitable Bottle Standard:	round or square shaped bottle.
Polyester Bottle Standard: (mm)	Bottle Diameter:50-110 (Height):150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision:	≤±5mm
Filling Pressure:(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Filling Pressure:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Power:(KW)	3.5	4	6	8
Overall Size:(mm)	2450×1800 ×2350	2780×2200 ×2350	3600×2650 ×2350	3800×2950 ×2400
Total Weight: (kg)	3500	4500	5500	6500
