Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > PET Bottle Making Machine/PET Bottle Blow Moulding Machine

PET Bottle Making Machine/PET Bottle Blow Moulding Machine

Name: PET Bottle Making Machine/PET Bottle Blow Moulding Machine
Brand: winmark
SKU: 109366839
Availability: InStock

Zhangjiagang Winmark Machinery Co., Ltd.

PET Bottle Making Machine/PET Bottle Blow Moulding Machine thumbnail-1

PET Bottle Making Machine/PET Bottle Blow Moulding Machine thumbnail-2

PET Bottle Making Machine/PET Bottle Blow Moulding Machine photo-1

PET Bottle Making Machine/PET Bottle Blow Moulding Machine photo-2

US$ 11,000 - 13,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Application:

Bottle

Plastic Processed:

PET

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Bottle

Plastic Processed PET

Blow Moulding Type Stretch Blow Moulding

Automatic Yes

Place of Origin Zhejiang, China

Brand Name winmark

Model Number WM-L

Voltage 110-415

Power(W) subject to model

Dimension(L*W*H) subject to model

Weight subject to model

Certification CE ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

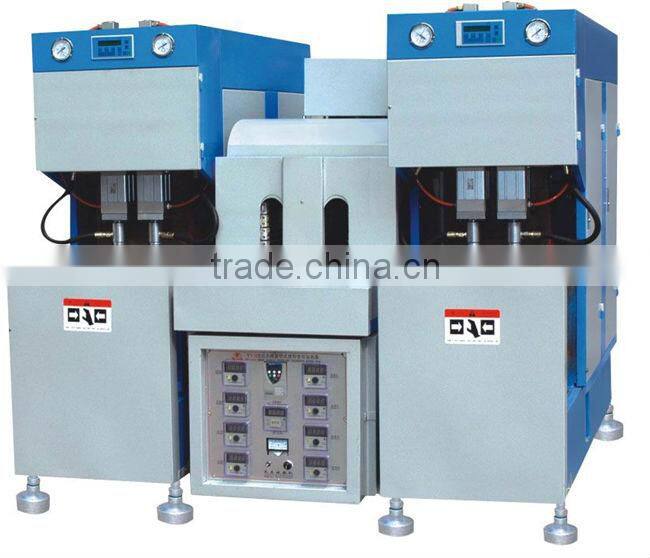

PET bottle making machine/PET bottle blow moulding machine

semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. The machine can be operated in the step-by-step mode and the semi-auto mode. The machine is small with low investment, easy and safe to operate.

Technical parameter:

Name	Item	Unit	Details
Blowing machine	Dimension	mm	16006001610mm
	Weight	kg	500
	Bottle volume (max)	ml	2000
	Bottle volume (min)	ml	50
	Bottle Neck Diameter (max)	mm	40
	Bottle Neck Diameter (min)	mm	18
	Body Diameter (max)	mm	125
	Body Height( max)	mm	420
	Number of Cavities	mold	2
	Production output	pcs/h	1600-1800BPH
	Clamping force	T	5.756KN
	Mold thickness	mm	200max
	Mold width	mm	360x390
	Space between Tie-bars	mm	120-220
	Diameter of Tie-bars	mm	63
	Scope of Tie-bars	mm	405
	Mold stroke	mm	160
	Stretching stroke (max)	mm	420
	Working pressure	Mpa	0.8-1.0Mpa
	Blowing pressure	Mpa	2.0-3.0Mpa
	Voltage/Power	V/KW	220V/1KW
	Weight	Kg	500
Pre-heater	Dimension	mm	18706301450mm
	Weight	kg	260
	Voltage/Power	V/KW	380V/14KW

Adopting double carnk connecting bar clamping and clamping mould is stable and fast

Adopt for infra-red rotary oven and heated equally.PET bottle blowing machine

1.The air system has been divided into two parts , pneumatic action part and bottle blow part to meet the different requirements for the pressure of action and blow , it can provide sufficient and steady high pressure for blowing large irregular shaped bottles

2.The machine is also equipped with muffler and different parts of refueling system

3.The machine can be operated in step by step mode and the semi-auto mode

4.The machine is small with low investment ,it is easy and safe to be operated by one person.
