Automatic Lineal PET Blow Moulding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WINMARK
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
WINMARK
Model Number
CY-880B
Type
Other, Stretch Blow Moulding, Stretch Blow Moulding
Certification
ISO9001;CE
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

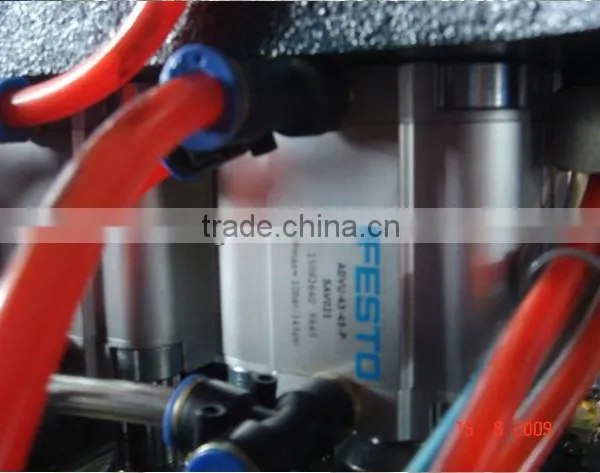

blow moulding machine*FESTO pneumatic parts
*Mittisubushi PLC
*OMRON electrical parts
*Fully-auto
stretch PET blowing machine
CY-880B automatic stretch blow moulding machine has been improved on the base of advanced technology, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. It is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Main Technical Parameters:
TYPE |
ITEM |
UNIT |
TECH. DATA |
CY-880B | |||
Main |
Max. Volume of Product |
L |
5(2-cavity) 12(1-cavity) |
Theoretical Output |
pcs/h |
300-1200 |
|
Neck Size of Product |
mm |
15-120 |
|
Useful Area of Mould |
mm |
350*450 |
|
Mould Thickness |
mm |
120-320 |
|
Mould Stroke |
mm |
80-250 |
|
Clamping Force |
KN |
120 |
|
Stretching Stroke |
mm |
420 |
|
Working Pressure |
Mpa |
<=1.0 |
|
Blowing Air Pressure |
Mpa |
<=4.0 |
|
Power of Main Blower |
KW |
0.2 |
|
Weight of Main Blower |
Kg |
900 |
|
Measurement of Main Blower |
mm |
1700*580*1820 |
|
Preheater |
Power of Preheater |
KW |
12 |
Weight of Preheater |
Kg |
450 |
|
Measurement of Preheater |
mm |
1450*700*1150 |
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
