Home > Manufacturing & Processing Machinery > Crane > Tower Crane > Construction Type Hot Sale and High Quality QTZ63(5610/5013/5011) Tower Crane

Construction Type Hot Sale and High Quality QTZ63(5610/5013/5011) Tower Crane

Construction Type Hot Sale and High Quality QTZ63(5610/5013/5011) Tower Crane thumbnail-1
Construction Type Hot Sale and High Quality QTZ63(5610/5013/5011) Tower Crane photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
building
Rated Loading Capacity:
1.3t
Contact Supplier Request Quote Chat Now
Jinan Yuexing International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application building
Rated Loading Capacity 1.3t
Rated Lifting Moment 630n
Max. Lifting Load 6T
Max. Lifting Height 41m
Span 50-56m
Place of Origin Shandong, China
Brand Name OEM
Model Number QTZ63(5610/5013/5011)
Certification CE ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

construction type Hot sale and high quality QTZ63(5610/5013/5011) Tower Crane





Ultra-long suspension arm(56/50m), large coverage.
Large section of standard section, good rigidity, stable complete machine during hoisting, little sway.
Main limb material of standard section: <160*160*16 angle steel or <160*160*14 or <135*135*12 square steel pipe.
Electrical system using high-quality domestic or imported components, stable and reliable performance.
Standard section, draw bar and upper and lower turntables adopting C02 gas shielded welding, large weld penetration, little deformation.
Winding motor, stable operation, rapid, convenient and efficient positioning.
Hoisting mechanism with good speed regulation and stability and no lifting shock.

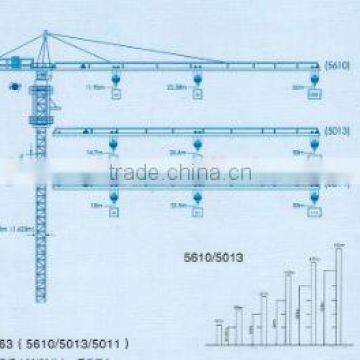

Load diagram
5610 loading capacity
m 1220232530354045505556
6t-11.95mt5.9753.4342.9372.6712.1631.81.5281.3161.1461.0080.983
3t-22.38mt332.9112.6522.1551.81.5341.3271.1611.0261.002
5013 loading capacity
m 1520252628303540454850
6t-14.7mt5.774.1333.15132.8372.6062.1421.7951.5051.3891.308
3t-26.6mt33332.8232.5962.1421.8021.5371.4051.325
5011 loading capacity
m 2022252729303435404550
4t-18mt3.5483.1772.7322.492.2822.1881.8681.7991.5081.2811.1
2t-32.5mt2222
2
21.8941.8251.5431.3071.126
Mechanism
QTZ63 self-climbing tower crane performance parameters
 561050135011
rated lifting momentKN.m630630630
maximum load-lifting capacityt664
load-lifting capacity of maximum ranget0.9831.31.1
working rangem3-563-553-50
heightmfreestanding:41
attaching:151 		freestanding:41
attaching:151 		freestanding:30
attaching:120
hoisting speeda=2m/min80/37/780/37/751.6/25.8/7.9
a=440/18.5/3.540/18.5/3.525.8/12.9/3.9
luffing speedm/min44/2244/2238.6/25.2
swing speedr/min0.640.640.62
maximum lifting speedm/min0.40.40.4
total power of motorsKW40.140.127.9
maximum wind pressure in the working stateN/M2250
