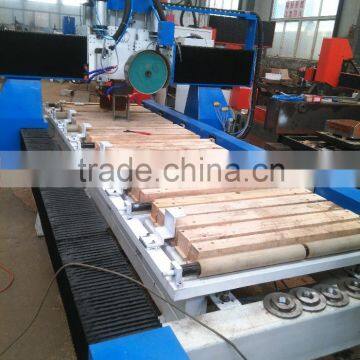

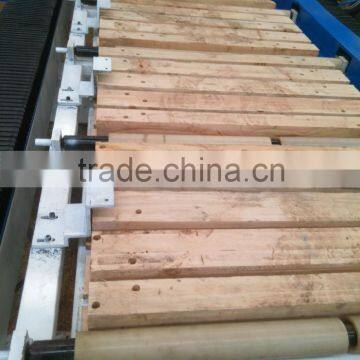

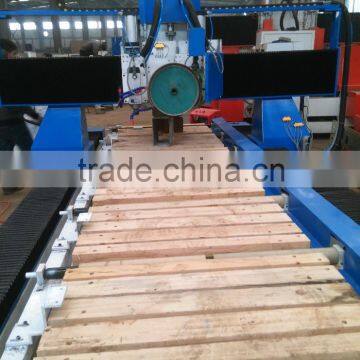

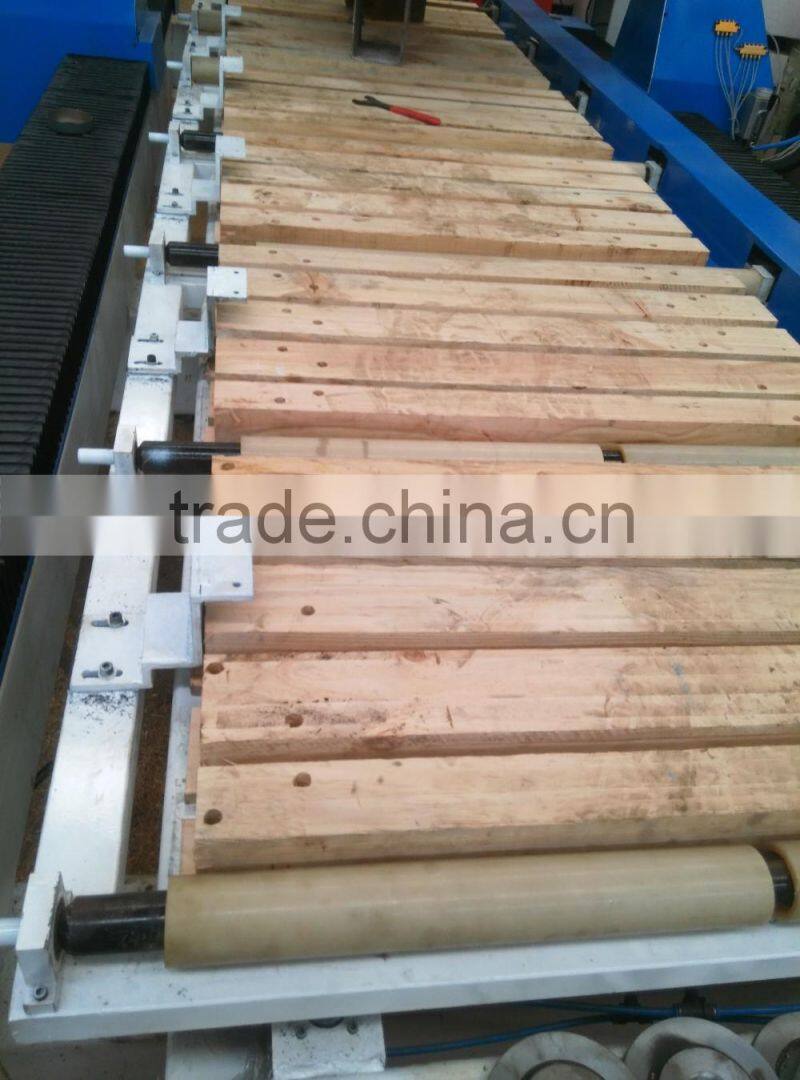

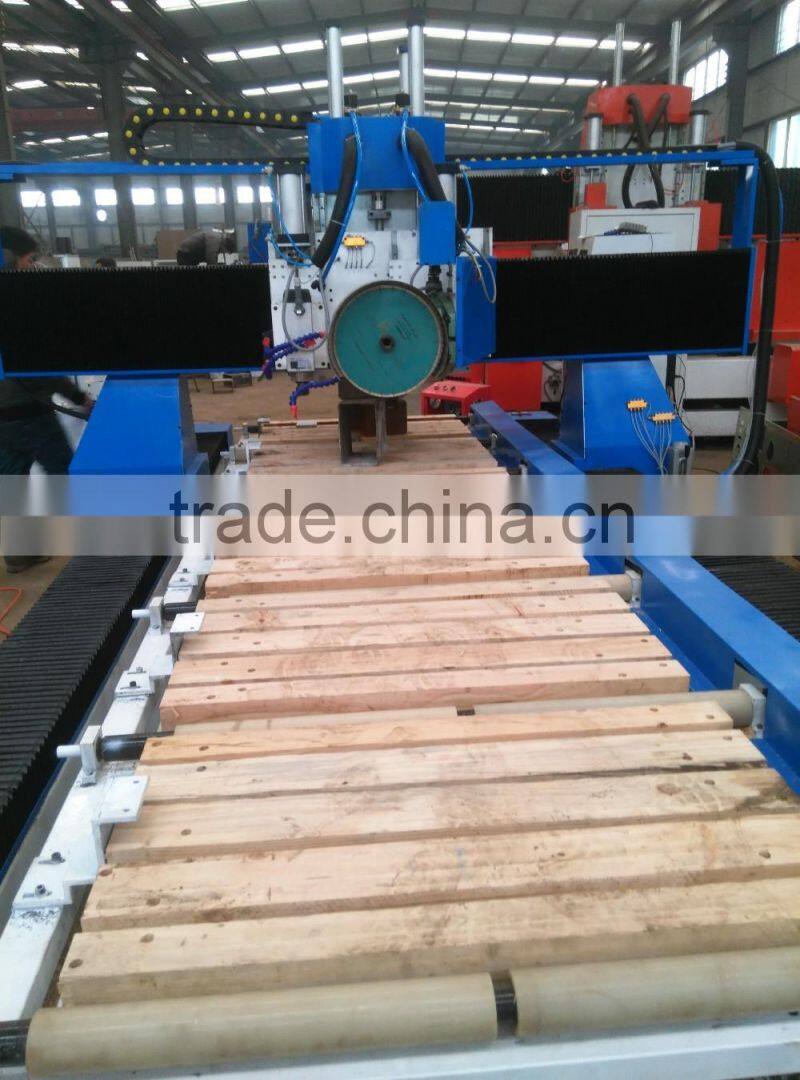

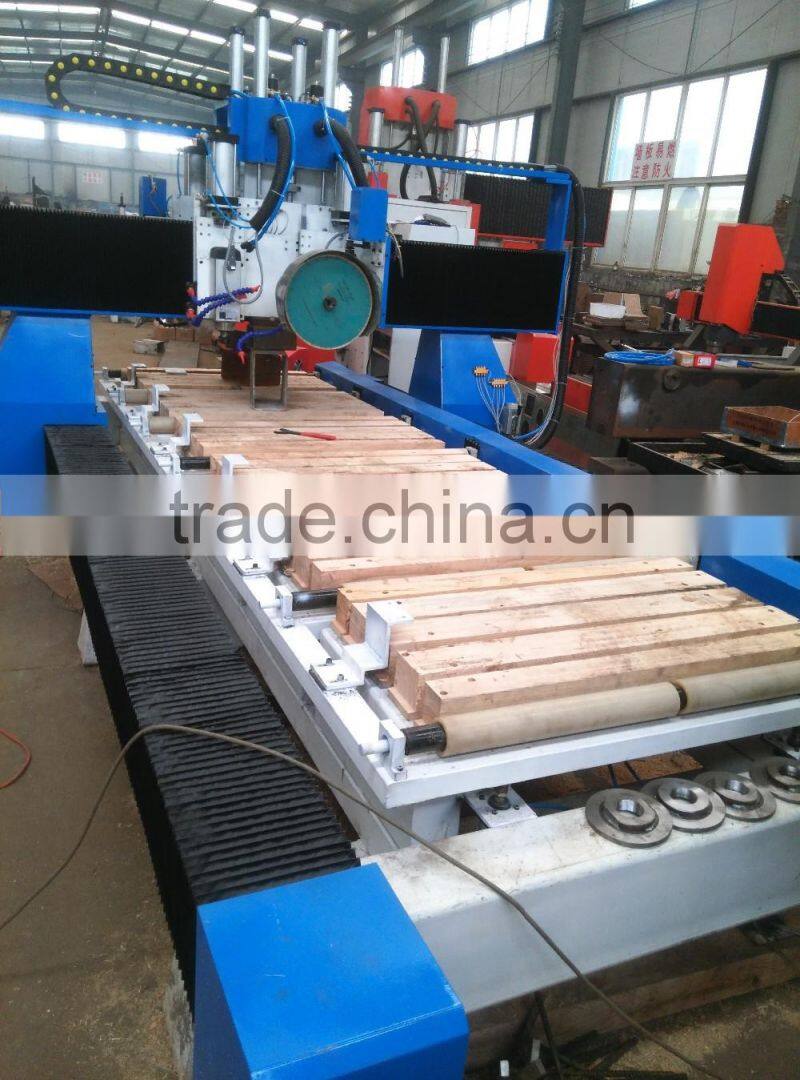

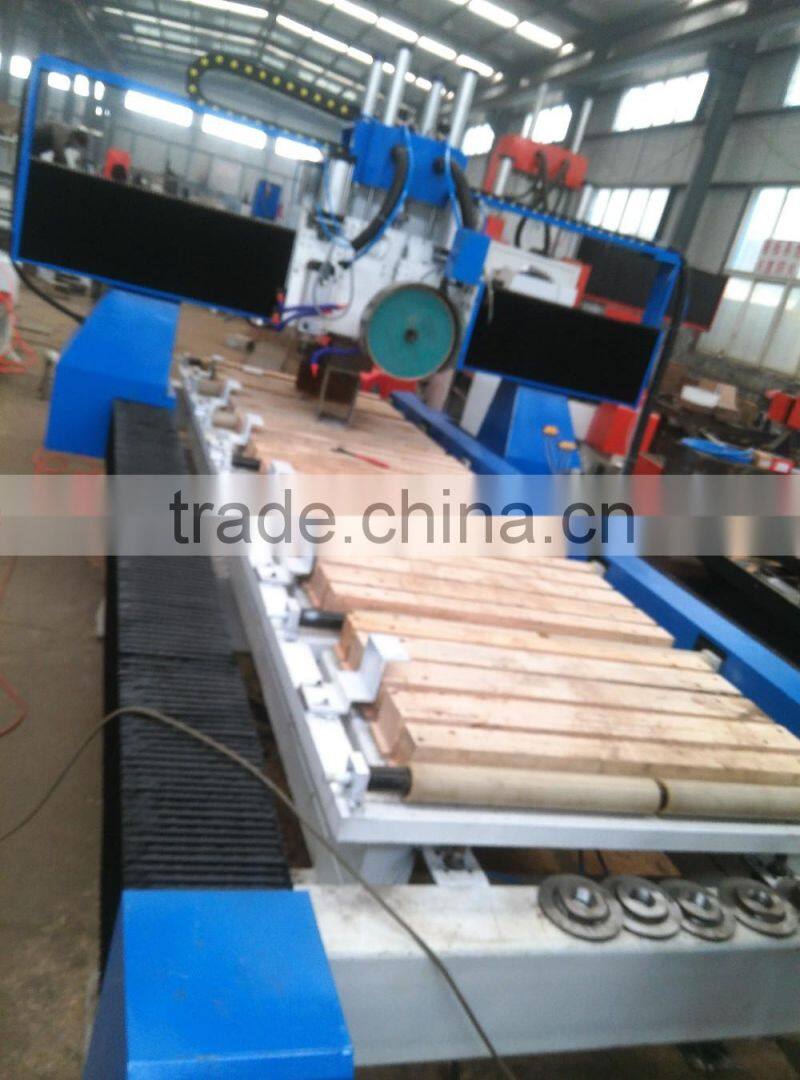

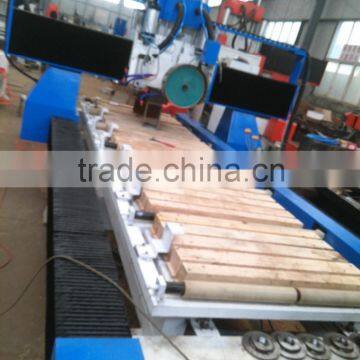

stone/granit pneumatic auto feeding cnc engraving and cutting machine/cnc edge grinding machine
1.linear rails on X, Y (Y axis is controlled by two motors)and Z (ballscrew transmission)axis are used to guarantee high accuracy and stable performance, and support heavy weight.
The square sliding blocks are of good dust-proof effect Automatic oil feeding and lubricating
system makes the regular maintenance very easy.
2.Superior high power water-cooling spindle could keep working at low noise level,
safeguarding stability for long-time operation.
3.Break-point memory enable the machine to continue the unfinished work after a work
shift or accidents, such as tool breaking.
4.Compatible with many CAD CAM software, such as Type3, Artcam, etc.
5.All three axis is dustproof.
Suitable for nature marble, granite, bluestone, sandstone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium, alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.Engraving characters, letters, pattern, intaglio, handwriting, ancient calligraphy, colored drawing, flat carving colored drawing, etc |
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300X2500X200mm |
2 |
Table |
aluminum and PVC |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.04/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
5 |
Frame Structure |
Welded Structure |
6 |
X-Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
7 |
Z Structure |
Screw Ball, Shaft Linear Bearings |
8 |
Max. Consume Power |
6KW |
9 |
Max. Speed |
0-32000mm/min |
10 |
Max. Working Speed |
0-15000mm/min |
11 |
Spindle |
5.5kw water cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Mode |
Stepper Motor |
14 |
Working Voltage |
AC380V,50/60Hz |
15 |
Command Code |
G Code, *uoo, *mmg, *plt |
16 |
Operating System |
PC Control System |
17 |
X,Y,Z transmission |
rack and gear |
18 |
Flash Memory |
128M |
19 |
Collet |
ER25 |
20 |
X-Y-Z Working accuracy |
<0.01mm |
video link: https://youtu.be/FODM9byrCR8
