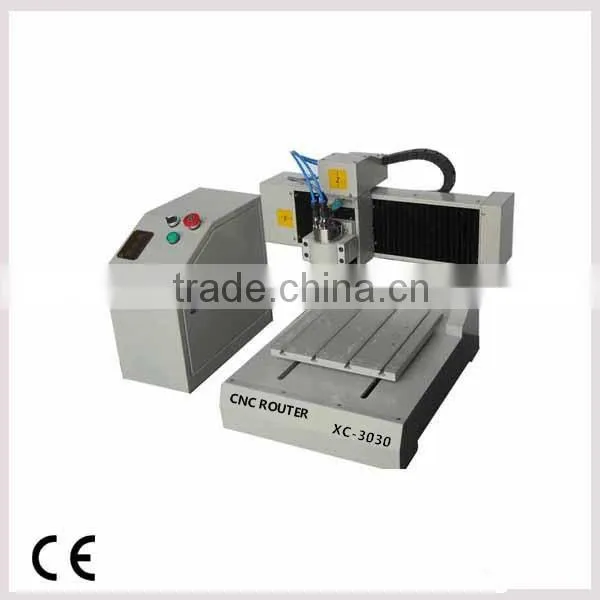

Hot sale mini cnc engraving router /mini cnc milling machine
Features of the mini cnc router 3030
1.Iron cast wholly frame, double-screw auto eliminating ball screw, floor-type linear guide transmission.
2.High power water cooling brushless motor, more forceful cutting capability, wear well.
3.High speed driver and stepper motor could enhance the machine easy maintenance.
4.Well designed dust and water proof device ensure the machine easy maintenance.
5.Advanced in CNC industry ,break-point memory pointes for 10 pcs, reducing material waster.
6.High compatibility, applicable for CNC software:type3,Artcam, Castmate,Pore,
variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension
characters in fancy style etc
Main parameter:
Feel free to contact to me! |
Benson |
Skype:benson.duan |
Model |
XC-3030 |
XC-6090 |
X Y working area |
300×300mm |
600×900mm |
Z working area |
>80mm |
>80mm |
Table size |
420×550mm |
600×600mm |
Max. rapid travel rate |
5-6m/min |
5-6m/min |
Max. working speed |
2-3m/min |
2-3m/min |
Max. feeding height |
100mm |
100mm |
Repositioning positioning accuracy |
0.05mm |
0.05mm |
Command language |
G-code, ugg,mmg,plt |
G-code, ugg,mmg,plt |
Max. power consumption(without spindle) |
300w |
300w |
Working voltage |
AC220V/50HZ |
AC220V/50HZ |
Spindle power motor |
1.5KW |
1.5KW |
Spindle speed |
0-24000rpm/min |
0-24000rpm/min |
Drive system |
stepper |
stepper |
Applicable material:
microlite, natural granite ,seeing stone, marble, bowler, bluestone, glass, grass, aluminum, iron,
plastic and wood. Etc.
Applicable industry:
Stone processing, metal processing.
FAQ:
Questions and Answers:
Q 1: I need a cnc router, can you give me some suggestions?
Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
Q 2: which kind of materials can be processed on this machine ?
Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
Q 3: can I process round /cylinder workpiece such as chair legs ?
Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials .
packing
Plywood cases for package to ensure the machine can be safely sent to your place. If you have other requirements,please contact me.
Company profile
1. Zhangqiu sangyuan Xing Chen Mold Manufacturing Co., Ltd is high-tect business machinery and equipment manufacture company, which is a blend of design,production,sales and after-sales in one.
2.Main products including cnc wood engraving machines,stone engraving machines,
statues engraving machines, CNC plasma cutting machines, mold engraving machines, metal engraving machine,laser cutting machine and high-end CNC engraving machines
3. Zhangqiu sangyuan Xing Chen Mold Manufacturing Co., Ltd has sold plasma cutting machine to the United state, Germany, Britain, Canada, Austrialia, Russsia, Southeast Asia, more than 70 countries and regions.
After sale-service:
1, Within 7 days since your local customs clearance: if the cnc machine’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the cnc router machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
