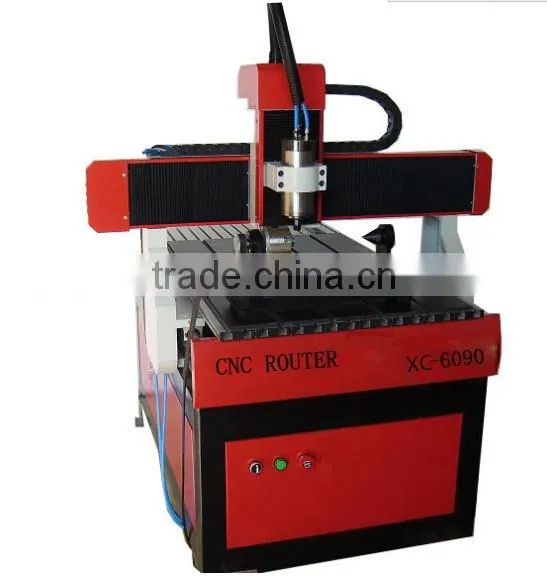

3D cnc router 6090 / cnc wood machines for pcb,pvc,wood ,mdf
What features our cnc router machine have?
1.1.5 kw air cooling spindle(top brand in China),with high precision and strong power.
2.It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. with fast speed and high accuracy, and it can meet the demand of all the needs of engraving.
3.It is equipped with the international leading NC studio control system (DSP for choice), which could memorize the breakpoint if it happens accident so that to guarantee to process in the other day..
4.With T-slot working table, holding the materials with clamps, you can do variety of high-precision works.
What applications our cnc router machine have?
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,
and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,
PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
Main parameter:
Feel free to contact to me! |
Benson |
Skype:benson.duan |
Model |
XC-4040 |
XC-6090 |
X Y working area |
400×400mm |
600×900mm |
Z working area |
>80mm |
>80mm |
Table size |
420×550mm |
600×600mm |
Max. rapid travel rate |
5-6m/min |
5-6m/min |
Max. working speed |
2-3m/min |
2-3m/min |
Max. feeding height |
100mm |
100mm |
Repositioning positioning accuracy |
0.05mm |
0.05mm |
Command language |
G-code, ugg,mmg,plt |
G-code, ugg,mmg,plt |
Max. power consumption(without spindle) |
300w |
300w |
Working voltage |
AC220V/50HZ |
AC220V/50HZ |
Spindle power motor |
1.5KW |
1.5KW |
Spindle speed |
0-24000rpm/min |
0-24000rpm/min |
Drive system |
stepper |
stepper |
The optional parts:
1. Aluminium T-slot table/ Vacuum table/ T-slot & vacuum combined table
2. Automatic lubiration
3. Water cooling spindle/ Air cooling spindle
4. TAIWAN HIWIN Square Rail / Round Rail
5. Rack Gear / Germany NEFF Ball Screw
6. 5.5kw Vacuum pump for vacuum table, Dust collector
7. Big stepper motor/ Yaskawa servo motor
8. DSP/Ncstudio control system
9. Rotary axis for cylinder object engraving/carving
10. water slot attached for stone / metal engraving
Applicable material:
microlite, natural granite ,seeing stone, marble, bowler, bluestone, glass, grass, aluminum, iron,
plastic and wood. Etc.
Applicable industry:
Stone processing, metal processing.
FAQ:
Questions and Answers:
Q 1: I need a cnc router, can you give me some suggestions?
Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
Q 2: which kind of materials can be processed on this machine ?
Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
Q 3: can I process round /cylinder workpiece such as chair legs ?
Of course, Only need to add a set of rotary device, you can engrave all kinds of cylinder materials .
packing
Plywood cases for package to ensure the machine can be safely sent to your place. If you have other requirements,please contact me.
Company profile
1. Zhangqiu sangyuan Xing Chen Mold Manufacturing Co., Ltd is high-tect business machinery and equipment manufacture company, which is a blend of design,production,sales and after-sales in one.
2.Main products including cnc wood engraving machines,stone engraving machines,
statues engraving machines, CNC plasma cutting machines, mold engraving machines, metal engraving machine,laser cutting machine and high-end CNC engraving machines
3. Zhangqiu sangyuan Xing Chen Mold Manufacturing Co., Ltd has sold plasma cutting machine to the United state, Germany, Britain, Canada, Austrialia, Russsia, Southeast Asia, more than 70 countries and regions.
After sale-service:
a. we offer 2 years warranty for whole machine(DSP, driver, motors, inverter, etc)
b. for spindle: we offer 1 year guarantee--this is what spindle supplier offer to us.
c. for carving tools: it is consumable part, so we could not offer guarantee for carving tools.
If the accessories are broken because of quality problems during warranty time, you can send back to us, we will repair and send back to you freely.
d. 24hours technical will be support when you need.
