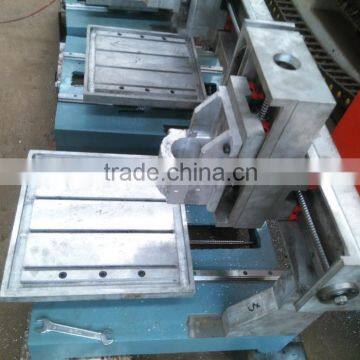

mini hot sale CNC Engraving milling Router Machine/3D wood router cnc milling machine for statue
Feature:
1. X, Y, Z axis use imported ball bearing guide screws. It’s precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it’s an ideal product for manufacturing labels, construction models and moulds in batches.
2. High speed calculation. It uses DSP64 contouring control system and FPGA technology which can continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.
3. Steady data transmission. The data transmission uses the technology of ISA/IP DNC/IP straight association, which can associate the machine without interruption, and it has no limitation of the amount of the document.
4. Double-nut guide screw. It uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses straight line guide rail (cylinder or square), which can ensure the working life.
5. Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
Technical data:
Model |
XC-3030 |
XC-4040 |
XC-6040 |
X,Y ,Z working area |
300*300*80mm |
400*400*80mm |
600*400*80mm |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
||
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
||
Max. Speed |
0-5000mm/min |
||
Max. Working Speed |
0-3000mm/min |
||
X,Y,Z Transmission |
X,Y ,Z choose HIWIN ball screw |
||
Guide rail |
Precision work Round rail ( or Imported linear guide) |
||
Spindle motor |
1.5 kw water cooled spindle (option) |
||
Spindle rotating speed |
0-24000rpm/min |
||
Drive motor |
Stepper(Servo optional) |
||
voltage |
AC220V/50Hz/1P |
||
Operating system |
Ncstudio system optional (DSP offline system ) |
||
Blade diameter |
3.175mm 6mm ( or 12.7mm) |
||
Surroundings for software |
Windows98/2000/XP |
||
Command |
HPGL,G code, u00, mmg, plt |
||
Compatible Software |
Type3, Artcam, Ucancam, Artgrave etc. |
||
Application:
Woodworking Applications:
waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window,
shoe polisher, game machine cabinet,Ma-jiang Table, computer table and panel type funiture.. Advertising
Applications:making advertising products made from Brand Board, Acrylic cutting,
mould and some other materials processing.
. Mould Area:
copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola, sandstone, plastic
board, PVC pipe, wood sheet etc.
Other Applications: Art and craft fields, embossment, photo engraving and so on.
After sale service
1.Two years quality guaranty ,the machine with parts shall be changed free of charge when if any problem
during the warranty period(excluding the consumables)
2.Life time maintenance free of charge
3.Free training course at our plant
4.24 hours on line service each day ,free technical support
5.Machine has been adjusted before shipping
6.Provide technical service to the door.
Payment term
1. We can accept T/T in advance, 30% deposit, other 70% deposit should be paid before shipping
2. Pay money from Alibaba , it can guarantee the delivery time , very convenient and safety.
Zhangqiu sangyuan Xing Chen Mold Making Co., Ltd
Jinan Yuexing International Trading Co., Ltd.
is the leading manufacturer of cnc router ( 3 axis, 4 axis and 5 axis cnc router), laser machine, cnc plasma cutting machine in China. we supply machines to a wide variety of manufacturing sectors including aerospace, automotive, marine, recreational vehicles, 3D sculpture, concept models, pattern making, formed plastics and wood working.
The Quality Assurance program pays close attention to every detail in order to guarantee that each machine is of the highest quality and standard of reliability for any CNC router, laser machine, cnc plasma cutting machine available on the market.
our team make the utmost efforts to meet customer needs and design bright future, bearing in mind that only constant
technology development and a technology driven company can offer reliability and trust to customers.
Contact US:
Benson Managing Director
Zhangqiu sangyuan Xing Chen Mold Making Co., Ltd
Jinan Yuexing International Trading Co., Ltd.
Add:803 No.2 Building of China Railway 10th Bureau, South Industrial Road,Ji`nan
Tel:531 58875664
Skype:benson.duan
QQ:1833617982
Whatsapp/viber:86-15318833253
