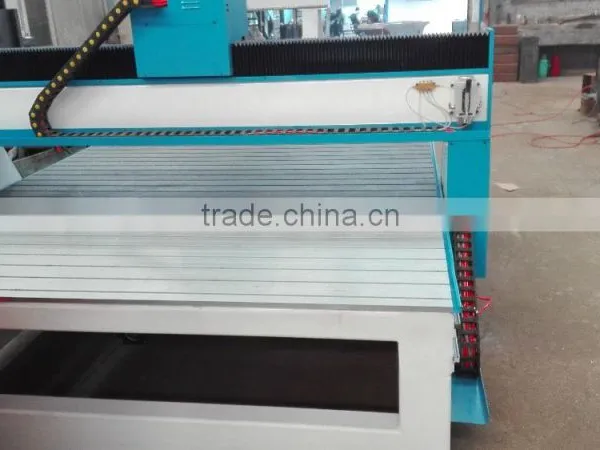

CNC advertising router engraving machine for plastic, pvc cnc router for sale
Features:
1. Whole machine is welded with thick square seamless steel structure; the stability is excellent,
not easy to be deformed.
2. Three axes adopt high precision square orbit; X and Y axes adopt rack and pinion transmission,
fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and
long life time.
3. High power spindles have constant power, low noises and super strong cutting force, which
improve workingefficiency greatly.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast
processing speed.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Perfect oil lubrication system makes maintenance much easier. And electric limit switch on
all axis, make sure machine running well.
9. Independent control box make control easier.
10. We will provide you a set of cutter, and a tool box with other necessary accessories
Parameter:
Model |
XC-1325 |
XYZ Working Size |
1300*2500*200 mm |
Machine body |
Thick-walled steel pipe welding |
Table surface |
T-slot table |
XY structure |
rack and pinion drive, HIWIN square linear rail |
Z structure |
Ball screw drive, HIWIN square linear rail |
Spindle |
3.2 kw water cooled |
Spindle speed |
0-24000 RPM |
Drive motor |
Stepper system |
Max. Rapid Travel Rate |
25000 mm/min |
Max. Working speed |
18000 mm/min |
Control system |
Nc studio controller (optional DSP/Mach 3) |
Software |
Type3, Artcam, Ucancam |
Command |
G code |
Machine precision |
0.01 mm |
Repositioning precision |
0.03 mm |
Working voltage |
AC 220/380V |
Machine Size |
1900mmX3200mmX18500mm |
Net weight |
1300KG |
Dust collector |
optional |
Remark |
We can customize the model for any processing size |
Application scope:
Wooden door and furniture decoration industry:
Solid wood door, compound door, cupboard door, large area plank plane carving, wood carve designs, board type furniture engraving, archaize annatto furniture engraving, solid wood art mural engraving and so on.
Wooden crafts processing:
Clock frame, picture frame, calligraphy plaque, electrical counter face, sports equipment, thin aluminum board cutting and engrving.
Electronic product industry:
Circuit board, insulation materials, the LED display, home appliance (color TV sets, washing machines, refrigerators) shell or model engraving and cutting;
Instrument industry:
Engraving instruments 3D surface, Appearance cutting, such as cello, violin panel and head; guitar,erhu 3D surface engraving and cutting.
EVA processing industry:
EVA packing materials lined engraving and cutting for tool equipment,medical equipment, electronic products,glass vessel.
Other industries:
The building model, the block, aviation block, propellers, car foam mold.
Suitable Materials of cnc router 1325:
Wood, Plastic, Aluminium, Di Bond, Engraving Board, Fomex. Engineering plastics, marble, ac rylic, Perspex, PVC, Composite panel, Copper, Alloys, MDF, etc
1. Foam and wrapping film on the surface of the machine inside. Rain-proof, rust-proof.
2. Standard export plywood case. Upwards, rain-proof shipping marks. Safety guaranteed.
3. Package size 2050*3200*1950mm, gross weight 12500kg.
4. Or as your esteemed company required.
Quality control of XC-1325 router cnc wooden door making machine wooden
1. After order, engineers discuss manufacturing procedure.
2. Every component and part elaborately selected and assembled, making sure minimum breakdown rate.
3. 48 hours continuous test of the machine before leaving the factory.
After-sale service of XC-1325 router cnc wooden door making machine wooden
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty. We provide new parts free. You pay all the shipping expense.
6. Gantry, lathe bed, stand whole life warranty.
7. Exceed warranty period 1 year: if the cnc machine parts have any problem, we can offer new machine parts
with cost price and your side pay all the shipping cost.
8. Engineers available to serve and train overseas, but your side should pay all the expense.
1. A: what is your payment terms?
Q: our payment terms is T/T, L/C, western, union
2. A: what time do you delivery?
Q: 15 - 20 days after receiving the balance.
3. A: what about your sale-after service?
Q: we have detail English manual to guide you how to run machine,if any doubt,our enginner will use Teamview to
control your software on your computer,meanwhile chat with you on skype.
4. A; What can you du anything to help me?
Q: Please don't hesitate to contact me, I'm not only a saler but also your solution provider.
