Specifications
1 3 to 1 phase AC power stabilizer2 IGBT/SPWM
3 Perfect protection against unstable power grid
Customizing any detail acceptble!
We can offer single phase, triple phase, AC to DC or combined in one unit for multipurpose.
We are capable of providing ultimate solutions of power system for all your needs.
Customizing is our advantage! Contact us for your special needs!
AF50 Series AC Power Stabilizer
Triple Phase In - Single Phase Out
- For single phase in - triple phase out AC power stabilizer, please click here.
- For single phase in - single phase out AC power stabilizer, please click here.
- For triple phase in - triple phase out AC power stabilizer, please click here.
- For triple phase in - single phase out AC power stabilizer, please click here.
Over View
The Acsoon AF50 series AC power stabilizer is one of the most popular products of Jerrystar, providing safe protection for the delicate electronic equipments of various industries from the most frequent and dangerous fluctuations of unstable power grids.
By choosing our AF50 series AC power stabilizer, your computers, test equipments and all other fragile components will run stably without worrying demaged by the unstable power grid.
Main Features
- Thoroughly proven advanced IGBT/SPWM technology
- Pure and stalbe sine wave output
- Better overload capacity
- More safety protection
- All parameters customable
- Free to be loaded via single phase independently
- Quick dynamic response of less than 20ms upon 0-100% load change
- Robust design against various environments
- EMI protected
- Passive filters utilized
- Dual loop control logic
- Greater ability against grid power impulses
- Independent real time display of output frequency, voltage, current, power and load power factor
Application
- Electro chemistry industry that need electro chemistry reactions, production of aluminum foil, chlor-alkali, carbon, sillicon carbide.
- Galvanizing
- Electrocoating of metal surfaces
- Precision measurement, medical equipments
- CNC machines, other machinery and automatic production lines.
Basic Data Sheet
| Model (AF50-) | 310020 | 310030 | 310050 | 310060 | 310075 | 310100 | 310120 | 310150 | 310200 | 310300 |
| Output power ( KVA) | 20 | 30 | 50 | 50 | 75 | 100 | 120 | 150 | 200 | 300 |
| Input | |
| Voltage | AC 265V~495V |
| Phase | Triple (3) |
| Frequency | 20-100Hz |
| Output | |||
Voltage |
220V+/-1% | ||
| Phase | Single (1) | ||
| Frequency | 50/60Hz+/-0.01% | ||
| Overload Capacity | 150% for 20sec., 250% for 10sec. | ||
| Load Regulation | ≤± 1% | |
| Frequency Accuracy | ≤±0.01% | |
| Distortion (THD) | ≤3% (messured at full load) | |
| Efficiency | ≥0.85 |
| Response | ≤2ms |
| Communication (optional) | RS232, RS485 |
| Proctection Class | IP20, or per requirement |
| Coolant | Air |
| Noise | <50dB (meassured at 1-meter distance) |
| Protective Design Features | |
| Input Fuse | Short Circuit |
| Over Voltage | Over Current |
| Over Load | Under Voltage |
| Over Heat | |
| User Interface | ||
| LED Display | Voltage, Current, Frequency, Power Factor, Active Power | |
| LEDDisplay Resolution | Voltage | 0.1V |
| Current | 0.01A | |
| Frequency | 0.1Hz | |
| Power | 0.01W | |
| Working Environmental | |
| Temperature | -10°C-50°C |
| Humidity | 0-90% (non-condensing) |
| Altitute | <1500m |
Optional
Trialer, trialer accessories, cables and connectors.
Picture Illustration

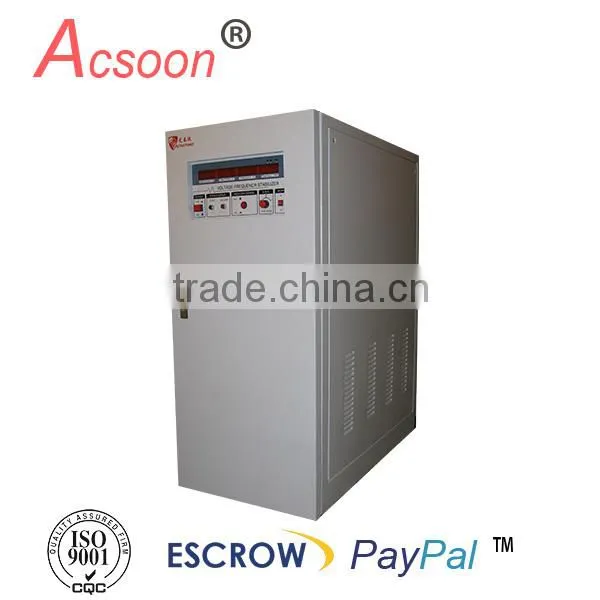

Low and medium power range:

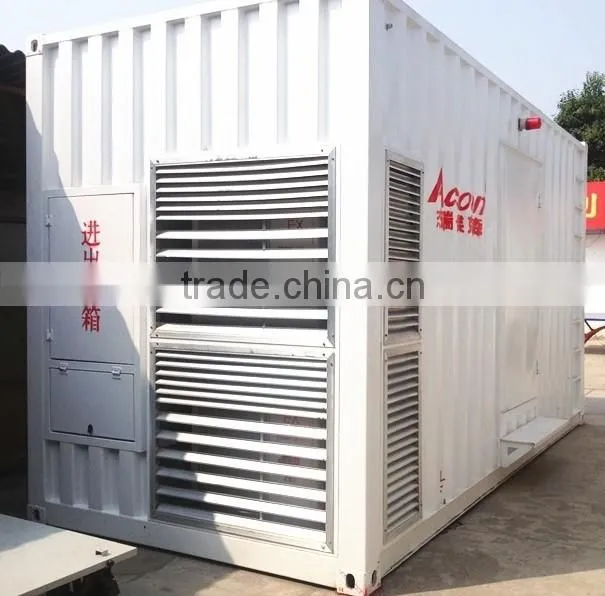

Large power for outdoor
Many thanks for the choice of our products; we are in a position to grant you high quality products, which follow high quality insurance models, UNI EN ISO 9001 and which use the best materials that modern technology is able to offer.
- OEM/ODM accepted.
- Input/output parameters can be modified according to your needs.
- Protection classification can be modified per your local actual environment.
- Flexible payment: PayPal, Escrow, T/T, L/C.
All products are properly and carefully packaged to protect them from humidity, salt fog, and collisions during transportation.
